|Product Name:||Optical Splitter Access Terminal||Key Words:||Splitter Access Terminal|
|Length:||Custom Length||Connector:||SC/APC Opti-tap Corning Connector|
|Packaging:||POLY BAGS||Application:||Optitap Male To Female|

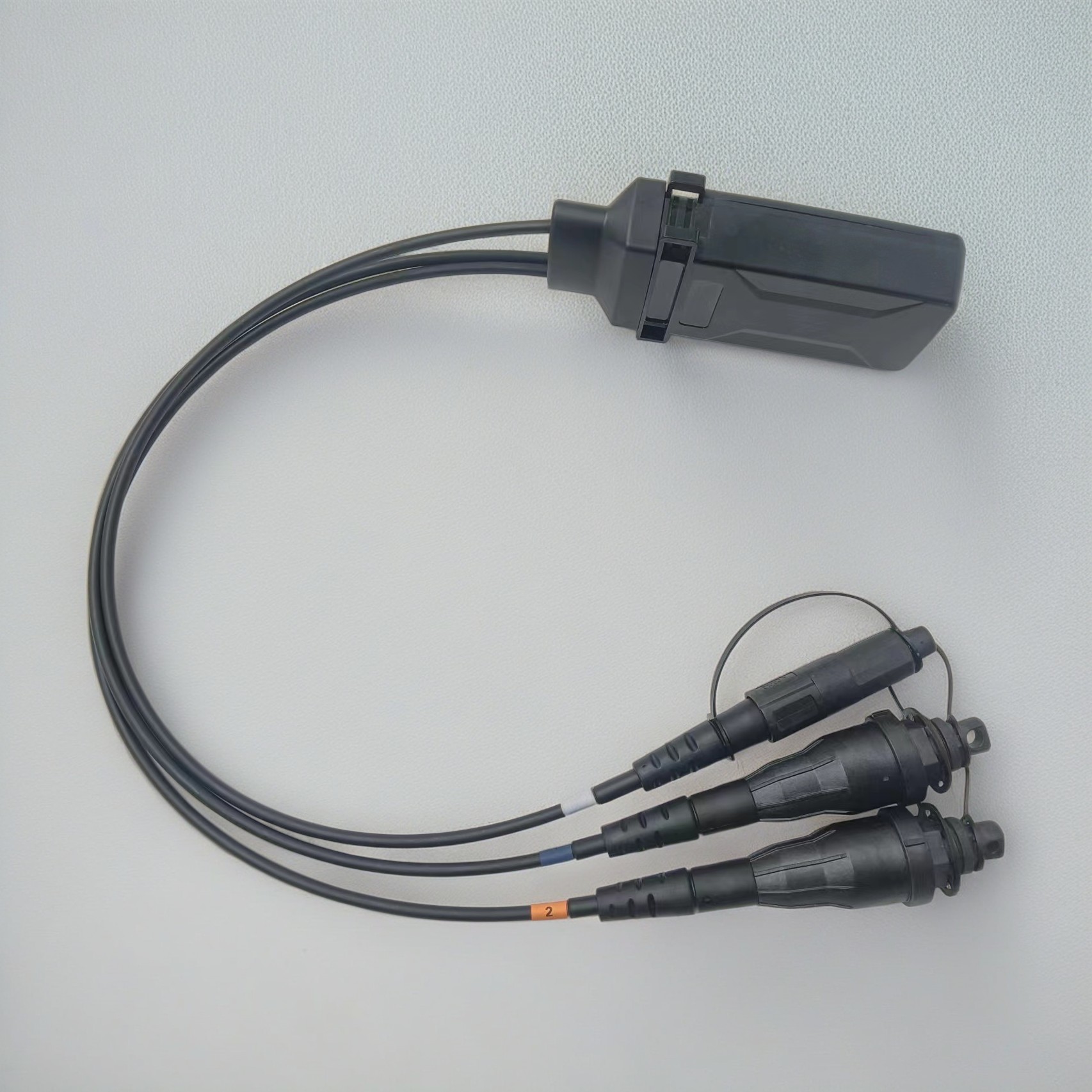

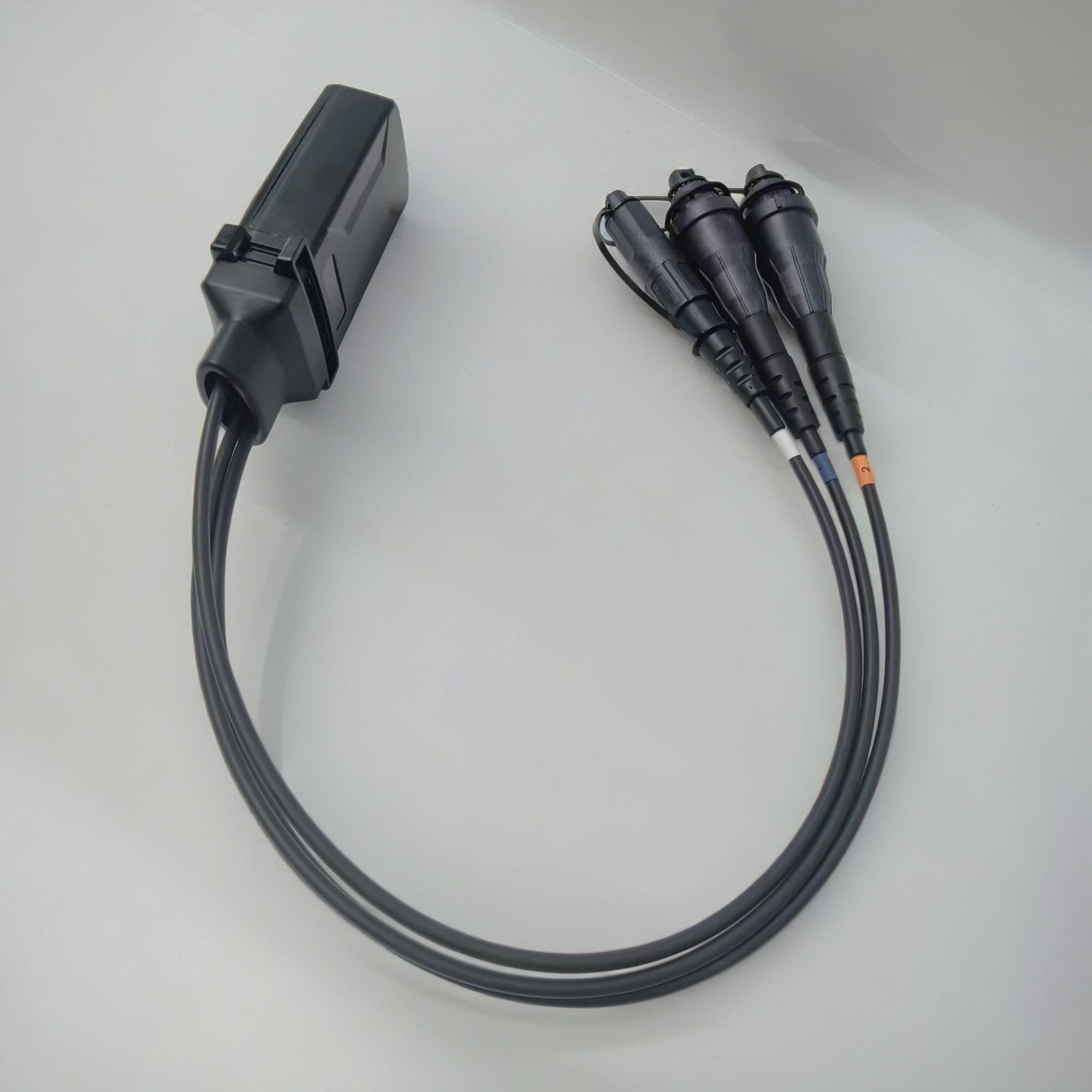

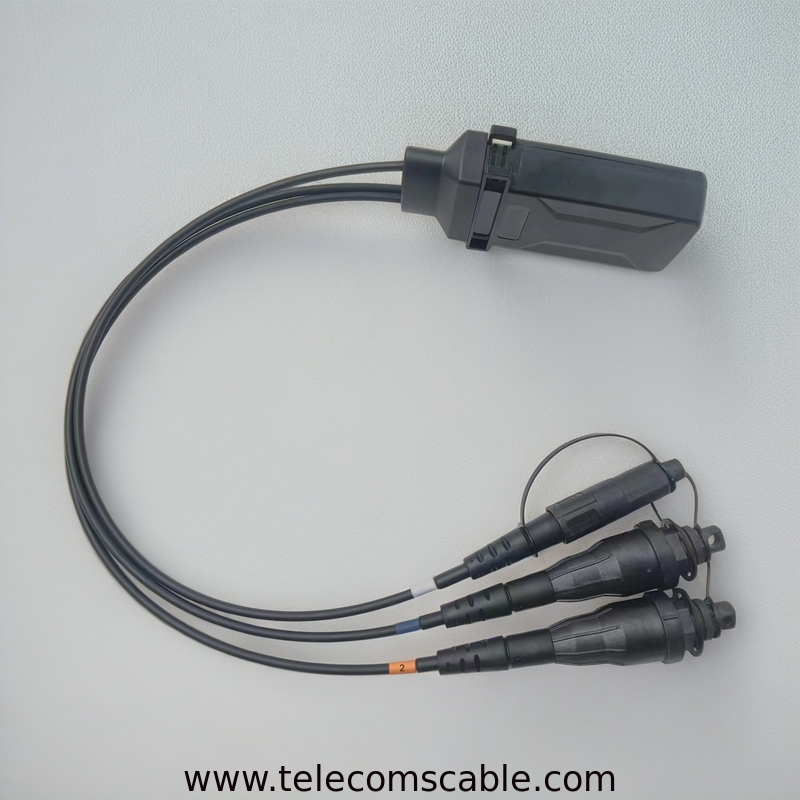

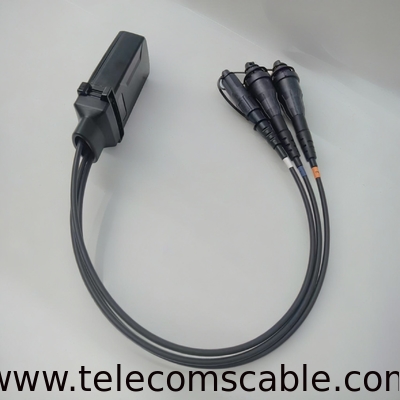

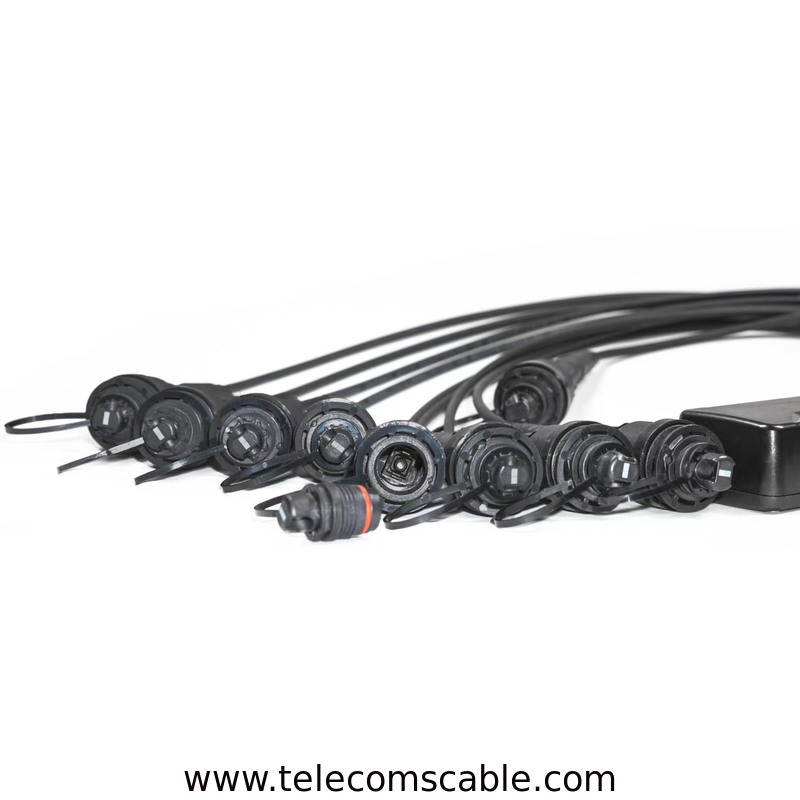

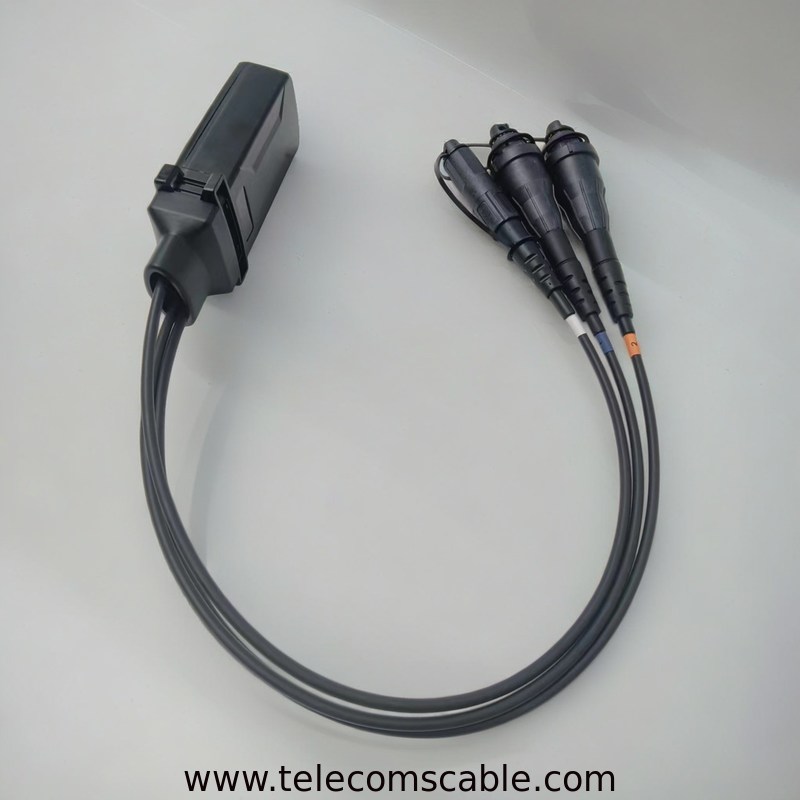

Splitter Access Terminal,
Splitter Access Terminal with SC/APC,
Splitter Access Terminal opti-tap/APC
Splitter Access Terminal provide the most cost-effective method of deploying optical fiber
in outside plant distribution networks at speeds significantly fast than traditional field
installations. The assemblies guarantee an easy, one-step connection system with the combined
push-pull insertion and nut-style mechanical latch. SAT provides quick installation solutions and has good performance on mating with H Optitap lnline SC/APC connector. Cable with ultra flexible TPU tube protection.
*Provides moisture and dust protection for use in harsh industrial environments.
*IP68 protection, salt-mist proof, humidity proof, dust proof.
*Drastically reduces field splicing with a predetermined loss at each waterproof tether access
*Utilize traditional field installation techniques for aerial, below ground and duct applications.
*Reduce installation time by as much as 50 percent per network access point.
*100% optically tested to ensure quality performance assemblies.
*Broad temperature range (-40 to+70°C) is ideal for indoor or outdoor applications
*Mark on dust cap can help people who cannot distinguish between colors to operate
|Item name||Splitter Access Terminal|
|Standard||Comply to GR-3120, GR-3152, IEC 61753-1, IEC 61754-4|
|Cable||4.8-5.0mm Black TPU with ITU-T G.657A1 fiber|
|Connector||H Optitap lnline SC/APC connector|
|Input length||0.3M or customized|
|Output length||0.5M or customized|
4.5dB Max( 1x2)
7.8dB Max (1x4)
11dB Max (1x8)
|Return loss||55dB Min|
|Operation Temperature||-40~+70 ℃|
Aircraft box packing with bubble protection
|Model||Net weight||Packing size||Weight per box|
***Packing may be altered without notice
