Place of Origin: | Guangdong, China |
---|---|
Brand Name: | SOGOO |
Certification: | CE, RoHS |
Minimum Order Quantity: | 10 pcs |
Price: | sales@sogootech.com |
Packaging Details: | Cartons |
Delivery Time: | 3-20 days depends on quantity |
Payment Terms: | T/T; Paypal; Western Union |
Supply Ability: | 100000 pcs per week |
Product Name: | 50m NSN Boot FUFBB MM OD Fiber Cable | Key Words: | 50m NSN Boot FUFBB Fiber Cable |
---|---|---|---|
Length: | 50m NSN FUFBB Fiber Cable | Connector: | LC With NSN Boot |
Fiber Mode: | MM | Application: | RRU Station |
Highlight: | FUFBB MM OD fiber cable,fiber cable LC OD-LC OD,NSN boot fiber cable |

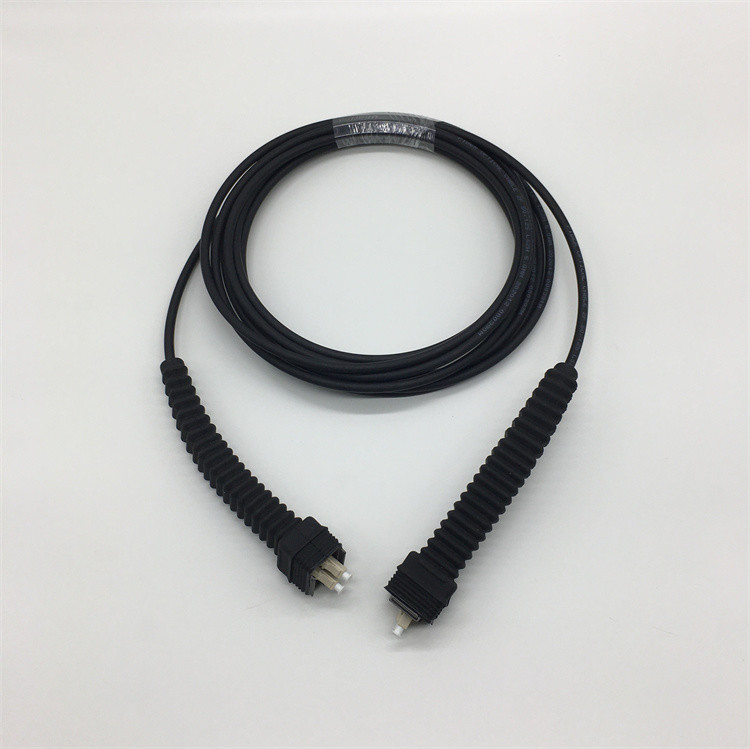

NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia 173306A. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.
Duplex tight-buffer fiber + central loose tube/ armoured steel tube + kevlar + OD 5.0mm jacket cable, connected with NSN boot LC DX connector.
Product Name : | Nokia Patch Cord Compatible NSN Connector LC DX Fiber Optic Cable |
Model | NSN Uni-boot both end DX LC/UPC-LC/UPC |
Cable Type | 5.0mm armoured LSZH 2core YOFC fiber |
Cable weight | 2kg/pc |
Length | 50m or customized |
Features
1.Easily add/install jumper cables for a future expansion.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Flexibility with small bending radius and excellent cable routing properties.
5.End-face geometry and quality superior than IEC and Telcordia standards.
6.The material in the jumper cable are all-weather and UV-resistant.
7.IP67 water and dust protection.
8.Mechanical performance: IEC 61754-20 standard. 9.RoHS and REACH materials compliant.
Connector Types
Type | Reference | Note | |
LC |
IEC 61754-20 |
Single mode duplex |
APC: Green connectors UPC: Blue connectors |
Multimode duplex | UPC: Grey Connectors |
Dimensional Diagrams
NSN boot 180°dulex LC Fiber Optic Jumper
End1 End2
NSN boot 90°dulex LC Fiber Optic Jumper
End1 End2
Patch cord versions
Jumper tolerance requirement | |
Overall length (L) (M) | length of tolerance(CM) |
0<L≤20 | +10/-0 |
20<L≤40 | +15/-0 |
L>40 | +0.5%L/-0 |
Cable Structure- No Armoureed
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
short term | long term | short term | long term | short term | long term | ||||
2 | 5.0±0.2 | 30 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~~ +70 |
Cable Parameters- Amoured
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
short term | long term | short term | long term | short term | long term | ||||
2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D |
-20~~+70 |
Send us your inquriy, if you interested in 50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, , Dia of 5.0mm.
