| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Model Number: | RPM 253 1619/50M or RPM 253 1619/100M |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 100000 pcs per week |

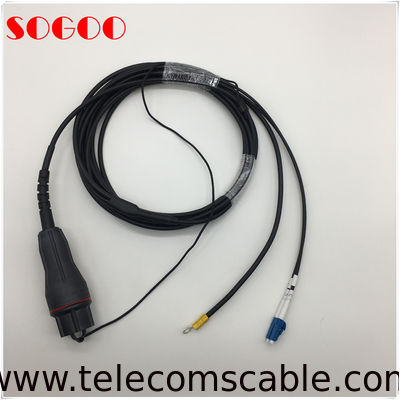

| Product Name: | RPM 253 1619 50m 100m Fiber Cable | Key Words: | RPM 253 1619 |
|---|---|---|---|
| Application: | Ericsson Optical Fiber Cable | Size: | 5mm Dia |
| Length: | 50~100m | Connector: | 1F LC-LC SM |
| High Light: | Ericsson Optical Fiber Cable,Optical Fiber Cable,Fullaxs Grounding Wire |
||
The optical cable are designed in such a way that it can be grounded with a metal platter with a ground wire of length of at least 600 mm. The connection of the ground wire with a metal splitter of the optical cable should be approx. 1 meter before the FullAXS connector. The ground wire must be terminated with a M8 cable shoe with at least one fixing bore. An example of the desired design is shown in the figure below.
| Nb. | Technical requirements for optical cable (attach prove documents): |
| 1. | Optical and transmission measurements (IEC 60793 -1) |
| 2. | Tensil strenght must be in accordance to IEC 60794-1 → long-term F=300N, shotr-term F=450 N |
| 3. | Crush test must be in accordance to IEC 60794-1 E3 → long-term F=3000N/100mm, short-term F=5000N/100mm |
| 4. | Repeated bending (mm) dynamic 20xd, static 10xd (d=diameter - cable diameter) |
| 5. | Connector type - LC/PC singlemode, Duplex konektor |
| 6. | Fibre type - singlemode 9/125 μm, standard SM G.657A1 |
| 7. | Insertion loss 0,3 dB |
| 8. | Return loss >50 dB typical |
| 9. | Cable sheath should be self-adhesive (extinguished) and free from substances that cause halogen gases (LSOH), |
| 10. | Connector 1 na BBU site - LC/UPC duplex, |
| 11. | Connector 2 na RRU site – LC/UPC duplex, housing FullAXS with protection cap, protection IP 65 |
| 12. | Maximum pulling force must be at least: 300 N |
| 13. | Temperature range: -40oC to +85oC |
| Optical connectors or connection optical cables must be in accordance (attach prove documents): | |
| 14. | § IEC 61754 - Mechanical Interface Standards |
| 15. | § IEC 61753 - Performance Standards |
| 16. | § IEC 61300 - Test / Measurement Proced |
| 17. | § IEC 61755 - Optical Interface |
| Item | Specifications |
| Connector A | FULLAXS Duplex LC, Straight boot |
| Connector B | Duplex LC, Straight boot |
| Grounding cable | Grounding cable on side B, Length 1.2m |
| Fiber amount | 2 cores |
| Fiber type | Single mode 9/125um G.657A1 |
| Optical Cable Attenuation at 1310nm | 0.4dB/km |
| Optical Cable Attenuation at 1550nm | 0.3dB/km |
| IL/Connector | ≤0.3dB IEC 61300-3-4 |
| Return Loss/Connector | >50dB IEC 61300-3-6 |
| Operation Temperature Range | -20-70℃ |
| Storage Temperature Range | -20-85℃ |
| Tensile strength | 350 N maximum |
| Bending radius | 180nm minimum |
| Crush Resistance | 1500 N/100 mm |
| Outer sheath | PE, full cable armored |
| Cable sheath color | Black |
| Cable OD | 5mm +/-0.2mm |
| Fan out | 3.0mm armored tube, Black color |
Standard export carton box or custom made box as customer requested
SHIPPING :
Door to Door service:DHL,TNT,Fedex,UPS International EXPRESS 3-5 working days
Airport to Airport:By Air(Customer need contact local logistic company for custom clearance)
Seaport to Seaport: for large quantity order
FAQ
1. Question: What is your minimum order quantity?
Answer: Any trial order in small quantity is welcome.
2. Question: Does your company accept sample orders?
Answer: Yes. Send us your drawings . The products can be customized according to your requirements.
3. Question: What payment terms do you accept?
Answer: T/T, Union Western and Paypal
4. Question: Which mean of delivery your company supports?
Answer: We support express delivery, air transportation , railway transportation and sea transportation.
Look forward to your inquiry on Ericsson Optical Fiber Cable Fullaxs LC-LC With Grounding Wire .
