| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |
| Product Name: | Fiber Optic Jumper For Ericsson | Model No.: | RPM-253-1610 |
|---|---|---|---|
| Length: | 50M 60M 70M 100M | Fiber Mode: | SM |
| Connector Type: | LC(FullAXS)-LC | Applicaiton: | For Ericsson |
| High Light: | RPM-253-1610,RPM-253-1610 Ericsson,Fiber optic jumper for Ericsson |
||

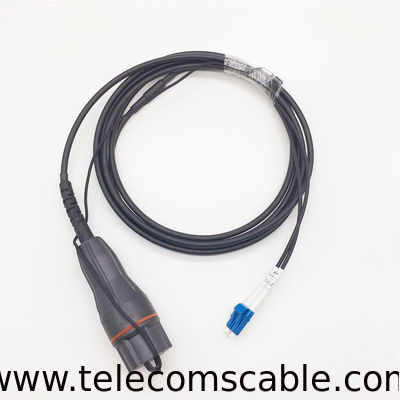

RPM2531610 /100M Waterproof Fiber Patch Cable with FullAXS, 2 cores, SM with fiber cable of G657A2, LC duplex connector, Compatible with Ericsson RPM2531610 fiber cable. Open bulkhead for easy access to SFP, positive mechanical feedback to opertor when fully mated, one-hand mating. Duplex LC interface. Bulkhead cut allows for removal of transveiver through the bulkhead ( no need to open RRH for transeiver replacent). Robust bayonet locking for easy fast, and secure mating.
The FullAXS connector can be designed for either single mode or multimode optical transmission applications. Use the cable assembly firmly establish themselves through the bulkhead is directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application.
Optical performance
| Item | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB | |
| Return Loss | ≥50 dB (PC), ≥60 dB (APC) | |
| Repeatability | ≤0.1dB | |
| Durability | 0.2dB Max. 1000 mattings | |
| Operating Temperature | -40ºC~+85ºC | |
| Storage Temperature | -40ºC~+85ºC | |
Specification of Fullaxs outdoor fiber optical patch cable
Cable Structure:
Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm;
| Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
| Short term | Long term | Singlemode | Multimode | |||||
| 2 | 4.8±0.1 | 20kg | 1000N | 600N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | 30D | -20℃~+70℃ |
| 1550nm ≤0.3dB/km | 1300nm ≤1.0dB/km | |||||||
| Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
| Short term | Long term | Singlemode | Multimode | |||||
| 2 | 4.8±0.1 | 35kg | 1000N | 600N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | 30D | -20℃~+70℃ |
| 1550nm ≤0.3dB/km | 1300nm ≤1.0dB/km | |||||||
Application :
1; Telecom networks tower;
2; CATV, LAN&WAN.
3; WIMAX and LTE base station, outdoor
4; CPRI, FTTP, FTTA
