| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 2000 pcs per week |
| Product Name: | NSN Boot Duplex LC Fiber Optic Patch Cable | Key Words: | NSN Boot Fiber Optic Patch Cord |
|---|---|---|---|
| Cable: | 5.0mm Outdoor Fiber Cable | Compatible: | Nokia BBU RRU |
| Warranty: | 1 Year | Application: | For Nokia BBU RRU |
| Highlight: | NSN Boot fiber cable,Nokia fiber cable,Nokia RRU fiber cable |
||

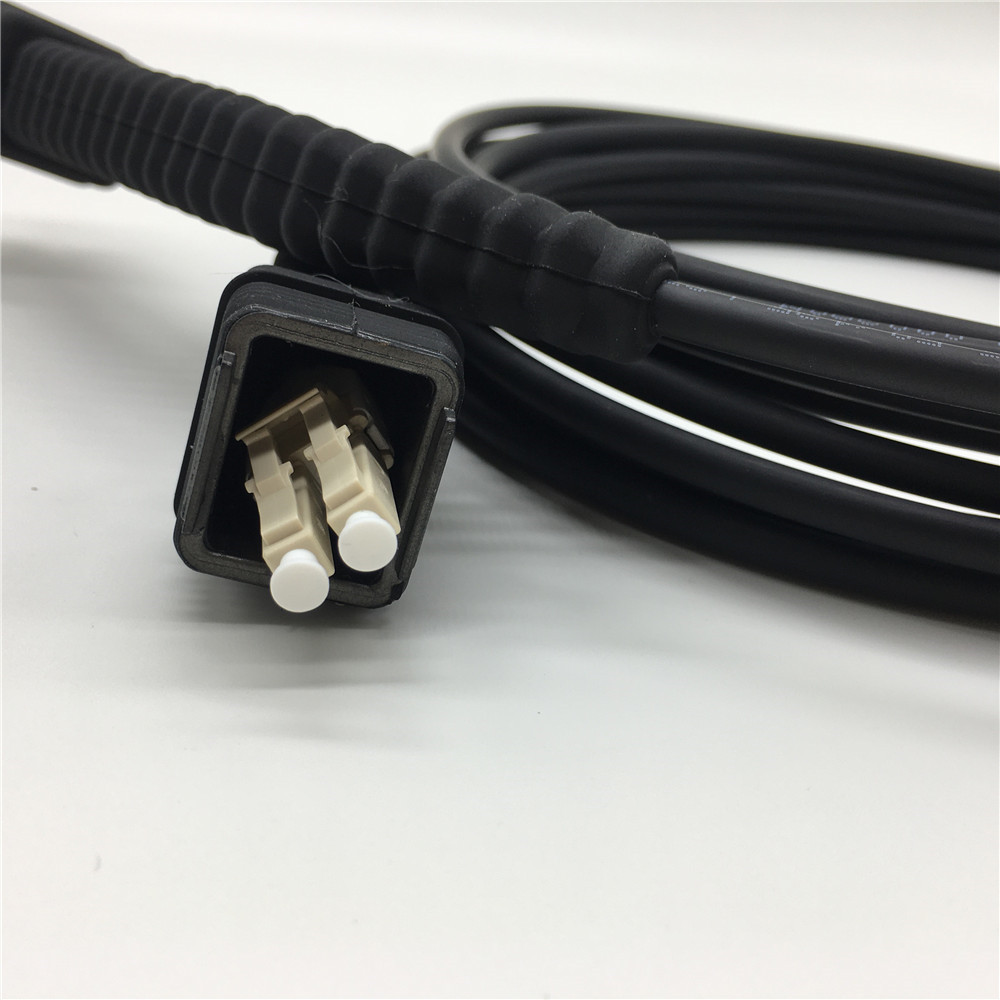

NSN Boot Duplex LC Fiber Optic Patch Cable used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia 173306A. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.
Duplex tight-buffer fiber + central loose tube/ armoured steel tube + kevlar + OD 5.0mm jacket cable, connected with NSN boot LC DX connector.
| Product Name : | Nokia Patch Cord Compatible NSN Connector LC DX Fiber Optic Cable |
| Model | NSN Uni-boot both end DX LC/UPC-LC/UPC |
| Cable Type | 5.0mm armoured LSZH 2core YOFC fiber |
| Cable weight | 2kg/pc |
| Length | 50m or customized |
DX LC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Features:
1. IP67 rated to ensure protection from dust and water immersion
2. LC connector qualified to Telcordia GR-326 and TIA/EIA 568B.3
3. Temperature range of -40°C to +85°C
4. Bayonet-style mechanical lock
5. Flame retardant materials per UL 94 V-0
Applications:
1. Harsh environments where chemicals, corrosive gases and liquids are common place.
2. Inside and outside industrial plant and equipment that interface with industrial Ethernet networks.
3. Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
4. Mobile routers and internet hardware
| Connector | Standard DLC connector |
| Fiber Type | SM MM |
| Protection | IP67 protection, salt-mist proof, humidity proof |
| Insertion Loss | ≤0.3dB |
| Mechanical life | 500cycles |
| Tensile Data | Tensile between junction and fiber cable≥100N |
| Working temperature | -20°C~+70°C |
| Used for | 4G 5G base station BBU, RRU, RRH, LTE |
| Length | 10m 20m 30m 50m 100m or customized |
| Product Keywords | nsn boot fiber optic connector,Outdoor Fiber Optic Patch Nsn Cable,Nsn Outdoor Fiber Optic Cable |
Features:
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥100N |
