| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PVC bag+ Carton+ Pallet |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 100000 pcs per week |
| Product Name: | G657A1 Multimode Outdoor Armored Fiber Optic Patch Cord | Key Words: | Outdoor Armored Fiber Optic Patch Cord |
|---|---|---|---|
| Application: | 3G,4G, 5G | Armored Or Not: | Armored |
| Fiber Cable: | 4 6 8 12 Core | Model: | G657A1 |
| High Light: | 4 cores Outdoor Fiber Patch cord,8 cores waterproof fiber optic cable,Armored fiber optic patch cord |
||
Outdoor Armoured Fiber Patch Cord Introduction:

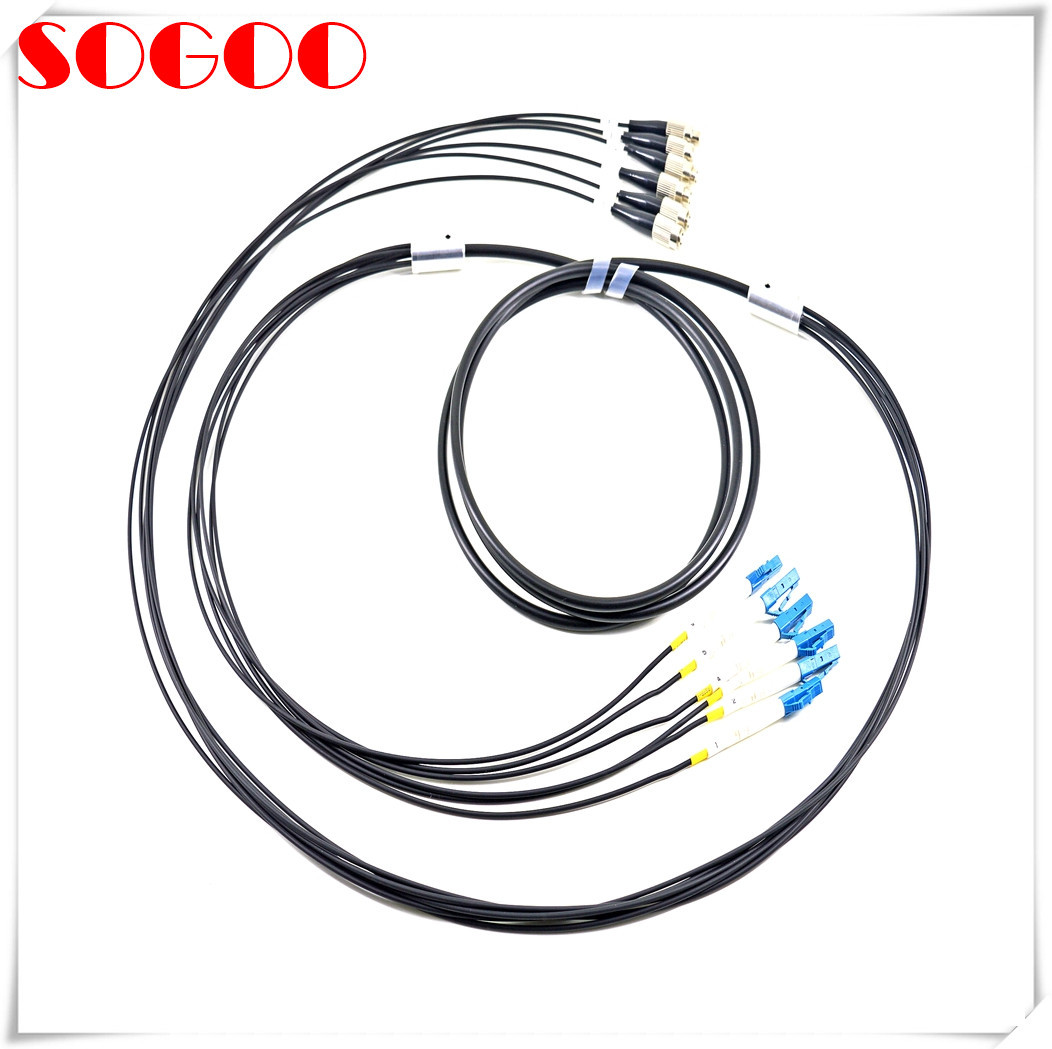

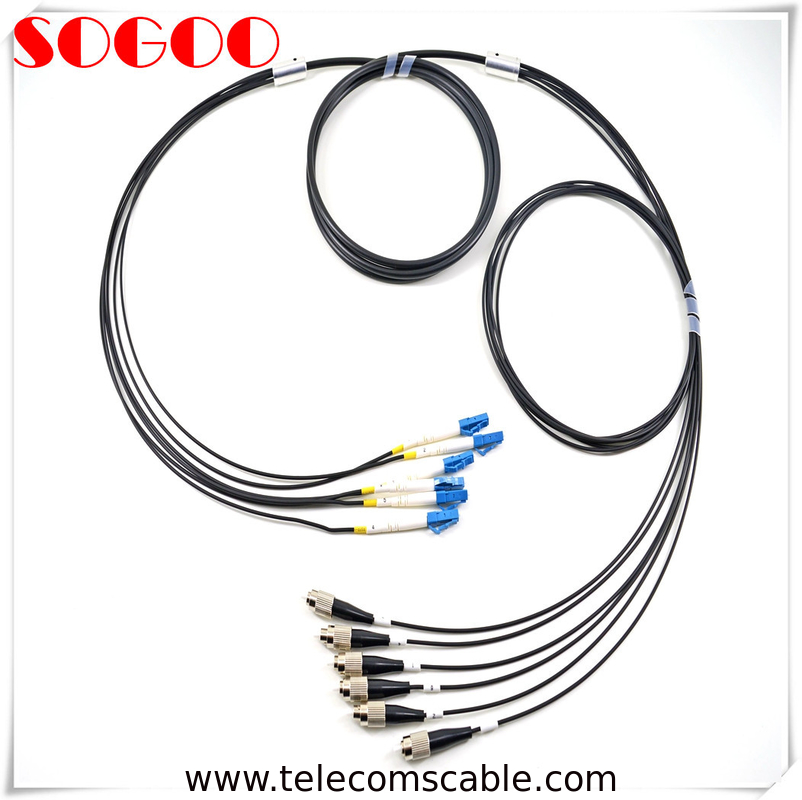

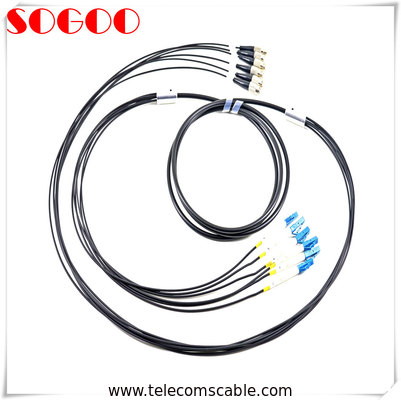

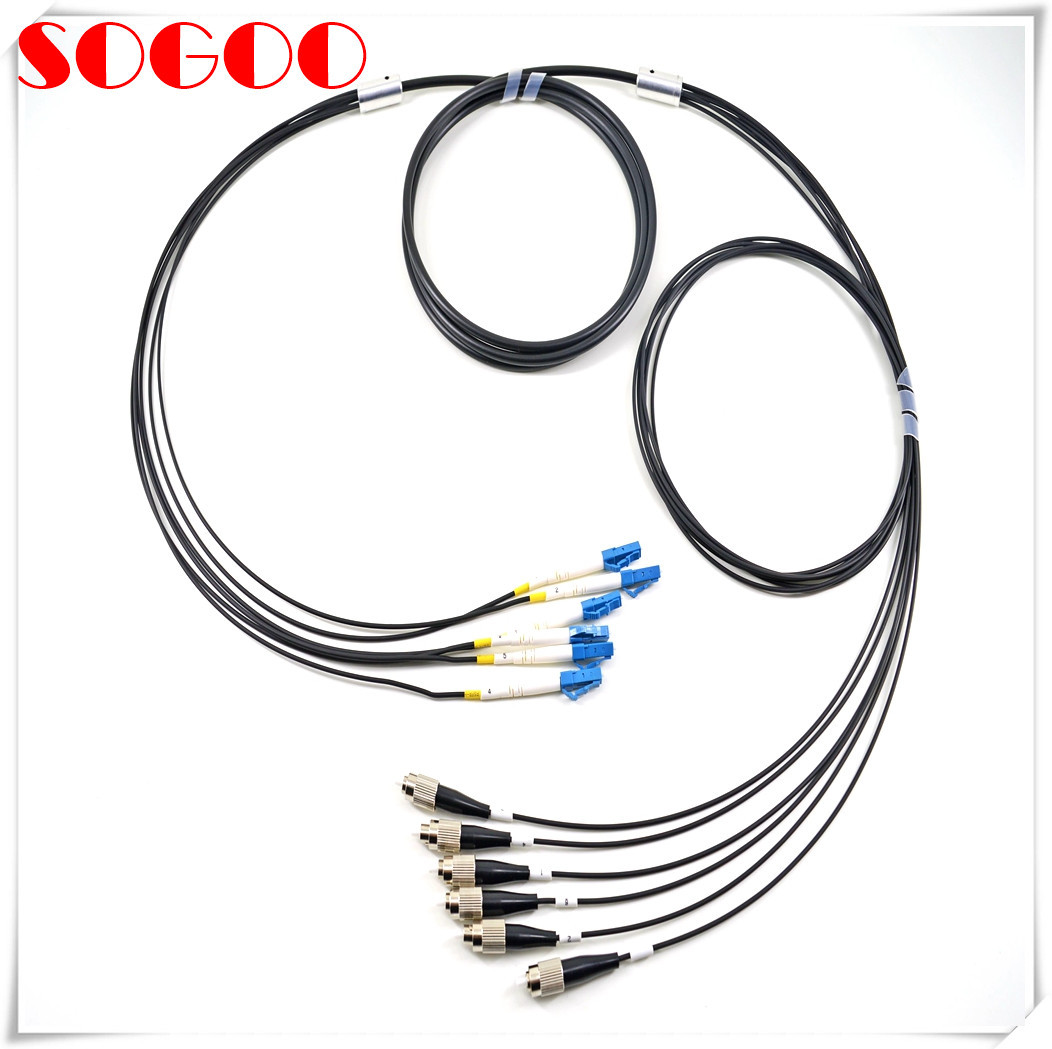

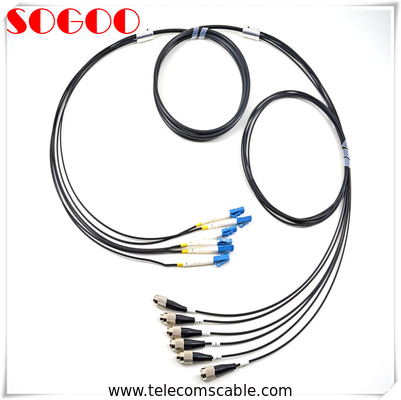

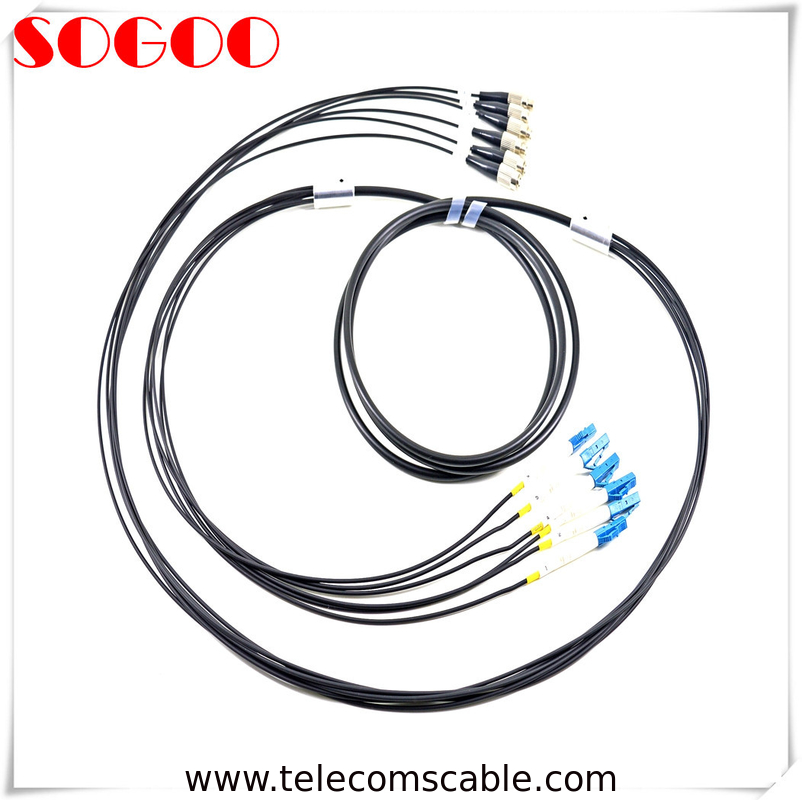

1. Outdoor patch cord, FC/UPC-LC/UPC, armored cable(outdoor type), 6 cores, 5.0mm(0.6mm inside), LSZH jacket; with metal fanout kit, without armor tube on breakouts.
2. Outdoor patch cord, FC/UPC-LC/UPC, armored cable(outdoor type), SM G657A1, 12 cores, 5.8mm(0.6mm inside), 20m, LSZH jacket; with metal fanout kit, without armor tube on breakouts.
3. Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection
tube which saves space and is quite convenient for maintenance. Also it has the construction including
stainless steel tube which protects optical fiber and provide better security for the whole system.
Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring or repeated retrieval in military field or connecting the networks of two buildings either through the use of an underground conduit or not.
Application: Used for military networks, industrial Ethernet, combat vehicles and other harsh environment
Characterisics:
1) Protection of stainless steel tube with small caliber.
2) Avoid the damage of torsion.
3) High tensile coefficient and stress coefficient.
4) Convenient for application, highly security.
5) Application without damage to cable.
6) Manufacture without damage to cable.
7)Cost cutting for maintenance.
Specification of armored cable:
1). Tight-buffered fiber: SM or MM; 0.6mm tight-buffered fiber
General attenuation: SM-- 1310 nm≤0.35dB/km; 1550 nm≤0.25dB/km
MM-- 850 nm≤3.0dB/km; 1300 nm≤1.0dB/km
2). Armor:
Material: stainless steel
Gap (p): 0.25±0.02 mm
Compression resistant strength: ≥300KGf/100MM
3). Aramid yarn:
Tensile strength: Short term: ≥300N: long term:≥150N.
4). Jacket:
Material:PVC/LSZH /OFNP/ PE
Outer diameter: 5.0±0.1mm
1 FC/UPC connector, 6 12 cores
2 Breakouts, 2.0mm LSZH tubes, without armor tube
3 Fanout kit, metal, with heat shrink tube covered
4 Armored cable, outdoor type, 6cores, 5.0mm(OD)
5 LC/UPC connector, 6 cores 12 cores
Applications
1. Widely used in FTTA & FTTH
2. Used for 3G 4G base station
3. BBU, RRU, RRH, LTE
2. Cable Parameters
3. Connector Specification
Recommend Products
Q&A
1. About the price?
Re.We usually quote within 12 hours after we confirm the technical data of your products.
2. What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.
3. What are your terms of payment?
Re.30% in advance,and 70% before shipment.
4. How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.
5. How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
G657A1 Multimode Outdoor Armored Fiber Optic Patch Cord of 4 6 8 12 Core Single mode will be a good opotion for you!
