| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Model Number: | 7/16 DIN Right Angle |
| Minimum Order Quantity: | 200 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3~15 days |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 100000 pcs per week |

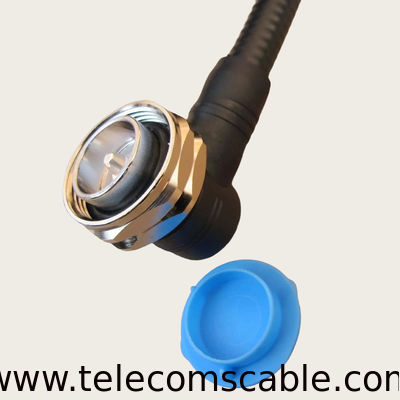

| Product Name: | 7/16(DIN) Right Angle Coaxial Connector For 1/2" Superflex Feeder Cable | Connector: | 7/16(DIN) Right Angle |
|---|---|---|---|
| Application: | 1/2" Superflex Feeder Cable | Material: | Copper |
| Plating: | Nickel/gold | Key Word: | 7/16(DIN) Right Angle Coaxial Connector |
| Highlight: | 7/16 DIN Right Angle,7/16 DIN Right Angle connector |
||
|
Temperature range |
-40~+85°C |
|
Vibration |
100m/s2 (10~500Hz) |
|
Impedance |
50 OHM |
|
Frequency Range |
DC – 11GHz |
|
Working Voltage |
2700V max |
|
Break-down Voltage |
4000V rms @ sea level |
|
Contact resistance |
≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact |
|
Average power |
3KW max |
|
Insulation resistance |
≥10000M OHM |
|
VSWR |
≤ 1.10 |
|
Durability (mating) |
≥500 (cycles) |
Material & Plating
|
Body |
Brass |
Nickel plated / Alloy plated |
|
Inner Pin |
Brass |
Gold plated |
|
Resilient Contact |
Beryllium Copper |
Gold plated |
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
|
O-ring sealing |
Silicone Rubber |
|
