| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 100000 pcs per week |
| Product Name: | Base Station Feeder Clamp | Key Words: | Feeder Clamp |
|---|---|---|---|
| Application: | For ZTE Huawei Base Station | Cable: | Feeder Cable, Power Cable Or Fiber Cable |
| Threaded Rod: | M8 Threaded Hole | Material: | SUS304 + PP + Rubber |
| High Light: | coax cable clamps,optical patch cord |
||

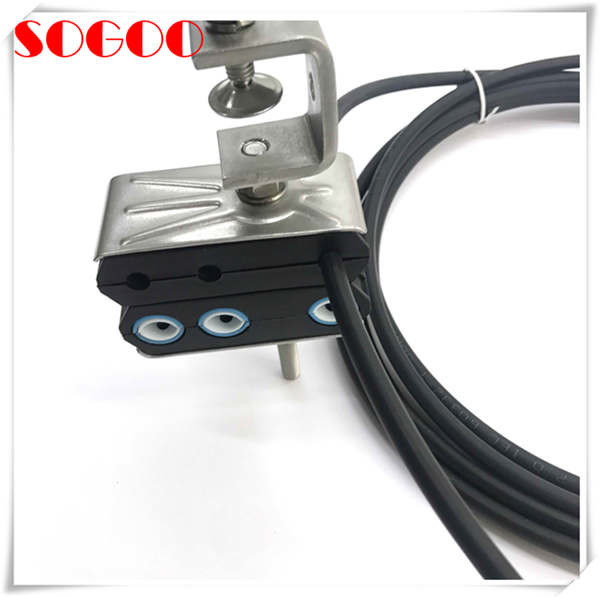

The Hanger is mainly used for the fixation between RF cable and tower, cable ladder etc, which is mainly composed of stainless steel and anti-ultraviolet polypropylene or ABS engineering plastics and anti-old rubber, and can be used in different range of temperatures. We manufacture various hangers to meet different requirements of our clients.
The clamp is designed to support 1 to 4 cables with the dimensions of 1/2”, 7/8”, 1 1/4”, 1 5/8“ and 2 1/4”. It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site. Without additional adapters, provide sturdy, reliable, long-term support.
Specifications:
Cable 1/2", 7/8", 1-1/4", 1-5/8" x1 Single-hole type feeder clamp;
Cable 1/2", 7/8", 1-1/4", 1-5/8" x2 Single-hole type feeder clamp;
Cable 1/2", 7/8", 1-1/4", 1-5/8" x3 Single-hole type feeder clamp;
Cable 1/2", 7/8", 1-1/4", 1-5/8" x1 Two-hole type feeder clamp;
Cable 1/2", 7/8", 1-1/4", 1-5/8" x2 Two-hole type feeder clamp;
Cable 1/2", 7/8", 1-1/4", 1-5/8" x3 Two-hole type feeder clamp;
Data Sheet
| Item Name: | Specification |
| Model: | SG-FC-003 |
| Application Size | 5~8mm Optical Fiber Cable + 9~13mm Coaxial Cable |
| Clamp Stack: | Single Stack (2 ways) |
| Double Stack (4 ways) | |
| Triple Stack (6 ways) | |
| Fourfold (8 ways) | |
| Plastic Material: | Polypropylene (PP) |
| Material of Clamp Inner: | Soft Rubber |
| Metal Material: | 304 Stainless Steel |
| Material of “U” clamp & Thread Rod | 304SS M8 Thread Rod |
| Match Cable: | 1/4’’, 1/2", 7/8", 1-1/4", 1-5/8" Feeder clamp |
| Match Cable: | RG8, RG213, LMR400 etc. Coaxial Cable |
| Quality warranty: | Anti-rust and heat cold resistant for Indoor/Outdoor Use. |
| Working temperature: | -50°C- +70°C |
| Packing | Poly bag/set, carton, |
| Payment term | T/T, L/C, Western union |
Application scope:
Mobile communication base station (GSM, CDMA, GPRS, etc). Feeder clamps for coaxial RF cable are used with following products:
a, Telecom cable;
b, Fiber cable;
c, Coaxial cable;
d, Feeder cable;
e, Hybrid cable;
f, Corrugated cable;
g, Smooth cable;
h, Braid cable.
Look forward to your inquiry on Feeder Clamp as Telecom Parts, used for ZTE Huawei Base station.
