| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3~15 days |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 2000 pcs per week |

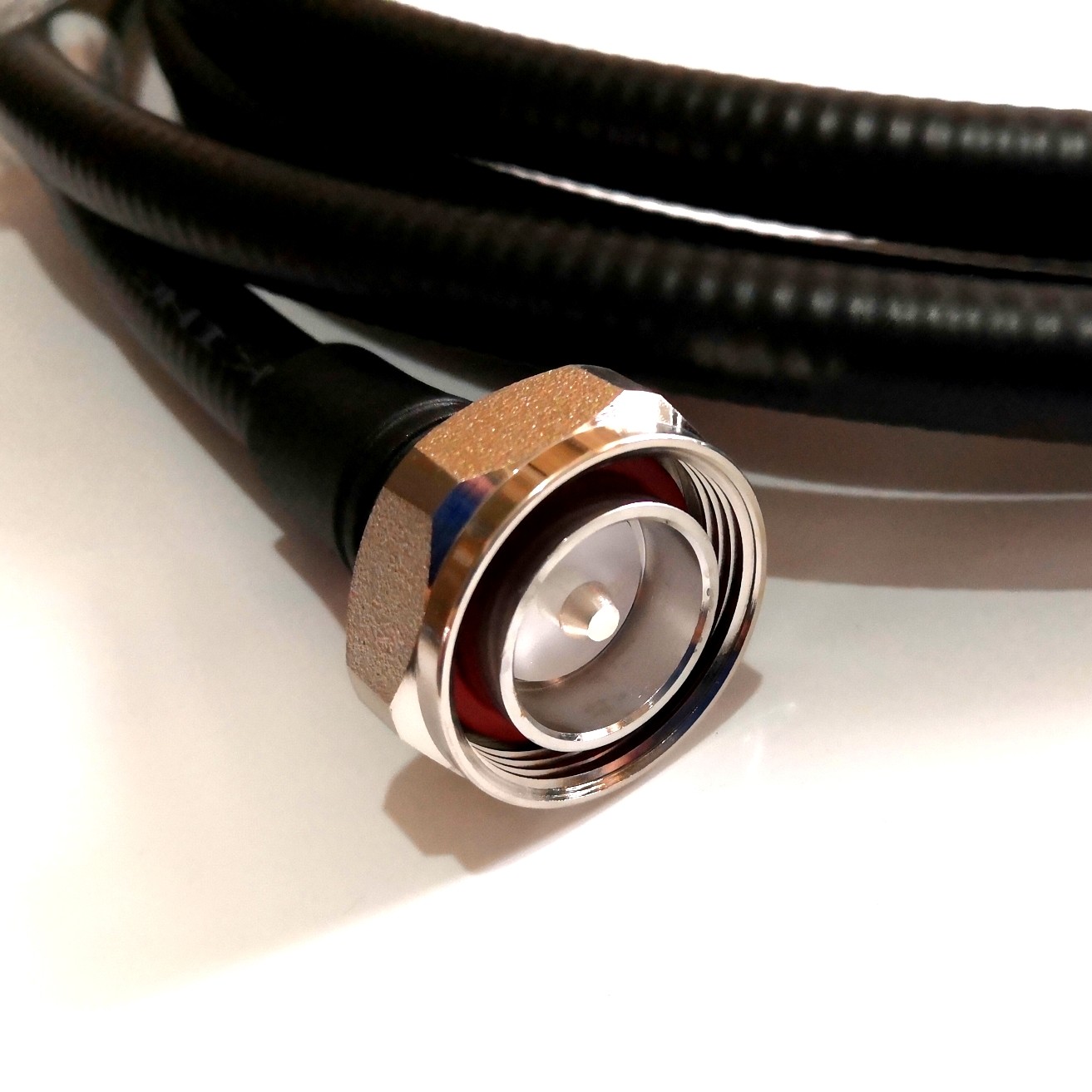

| Product Name: | 1/2" Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector | Length: | 1.5m~5m |
|---|---|---|---|
| Compatible: | Huawei ZTE | Connector: | 4.3-10 Male To 7/16 Din Male |
| Application: | 4g Wifi Base Station | Cable: | 1/2 Inch Super Flex Jumper Cable |
| Highlight: | 1/2" Superflex Jumper Cable,1/2" Superflex Jumper 7/16 DIN,1/2" Superflex Jumper 4.3-10 |
||
Specification:
|
Electrical Specification
|
|
|
Impedance
|
50Ω
|
|
Frequency range (for connector interface)
|
DC~18GHz
|
|
electric withstanding voltage (at sea level)
|
≥750-1500V,50Hz (depending on cable)
|
|
Working voltage (at sea level)
|
≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
|
|
V.S.W.R.
|
customized
|
|
Insulation Resistance
|
≥5000mΩ
|
|
Contact resistance
|
Inner conductor: ≤1.0mΩ
|
|
Outer conductor: ≤0.2mΩ
|
|
|
RF leakage(2-3GHZ)
|
Flexible: ≥60dB
|
|
Semi-rigid cable: ≥100dB
|
|
|
Mechanical Specification
|
|
|
Coupling nut torque
|
0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
|
|
Coupling nut retention force
|
≥270N / 60.7 lbs
|
|
Contact captivation axial
|
≥27N / 6.1 lbs
|
|
Durability (matings)
|
≤500
|
|
Temperature range
|
-65°C to +165°C
|
|
MATERIAL DATA
|
|
|
Bodies, outer contacts
|
Beryllium copper--Au plating
|
|
Stainless steel--Passivation
|
|
|
Brass--Au plated / ternary alloy plating
|
|
|
Phosphor bronze --Au plating
|
|
|
Pin contacts
|
Brass/Beryllium copper--Au plating
|
|
Socket contacts
|
Beryllium copper / Phosphor bronze--Au plating
|
|
Crimp ferrules
|
Brass--Au plating
|
|
Insulator
|
PTFE
|
|
Gaskets
|
Silicone rubber
|
|
Applicable Standard
|
|
MIL-C-39012;
CECC 22110; IEC 60169-15. |
3.3. Environment feature
Waterproof: IP68
Operation temperature range: -40°C to +85°C
Storage temperature range: -70°C to +85°C
Q&A
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
AS customer requirements
Inner packing:Bubble
Outer packing:carton
Foam + Blister + Vacuumize +Carton
Any kind of packing can be mixed.
Delivery:7-15Days after payments
Look forward to your inquiry on 1/2" Superflex Jumper Cable With 4.3-10 Male To 7/16 Din Male Connector.
