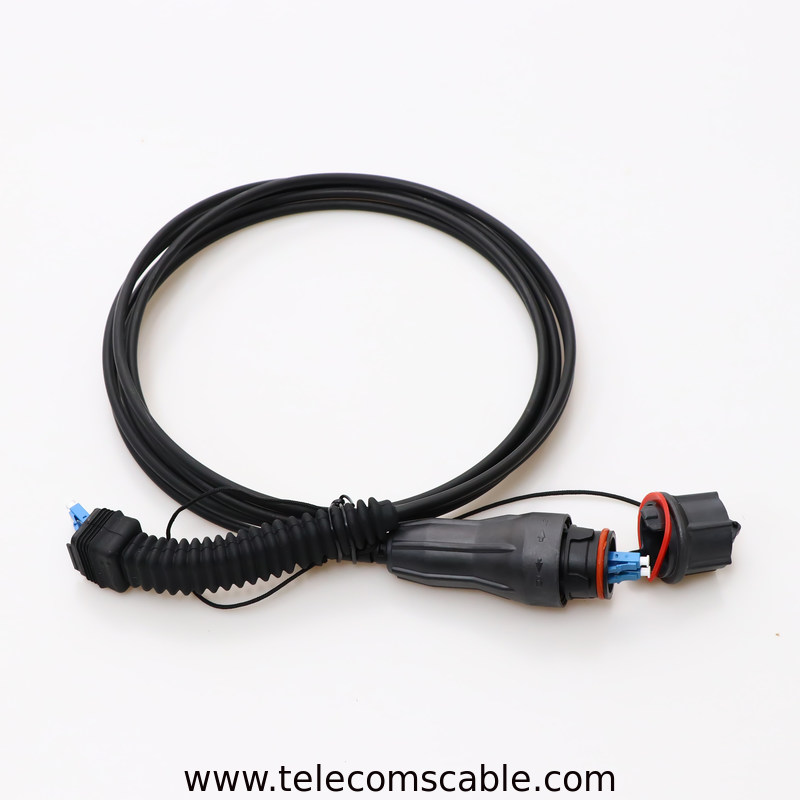

||Outdoor Fiber Optic G657A FULLAX Waterproof Cable Assemblies Fiber To The Antenna Cable Assembly
||FULLAX Waterproof Cable Assemblies
||Fiber To The Antenna Cable Assembly
||Customized According Drawing
||G657A2 SM Or MM
Fullaxs Waterproof Fiber Optical Cable,
Unarmored Fiber Optic Patch Cord,
Fiber Optical Cable Ericsson
Outdoor Fiber optic G657A FULLAX Waterproof Cable assemblies Fiber To The Antenna Cable Assembly
FullAXS Fiber-to-the-Antenna Connector next generation WIMAX technology features a Long Term Evolution fiber to antenna connection design. This allows for the usage of strong cable assemblies on the outdoors.
Direct connections allow for the cable assembles through the bulkhead construction to be plugged directly into the optical transceivers. This accommodates a large Z tolerance, which allows the usage of the widest range of transceivers available on the market. End users now have the ability to choose from multiple transceivers.
Plug directly into the optical transceivers though a bulkhead construction, Excellent for Fiber To The Antenna (FTTA) ,Cable accessories and bulkheads ,Excellent for outdoor installations.
*WiMAX and LTE Base Stations
*Remote Radio Heads (RRH)
*Industrial outdoor applications
*Aerospace & Defense
||FULLAXS Duplex LC, Straight boot
||Duplex LC, Straight boot
||Grounding cable on side B, Length 1.2m
||Single mode 9/125um G.657A1
|Optical Cable Attenuation at 1310nm
|Optical Cable Attenuation at 1550nm
||≤0.3dB IEC 61300-3-4
||>50dB IEC 61300-3-6
|Operation Temperature Range
|Storage Temperature Range
||350 N maximum
||1500 N/100 mm
||PE, full cable armored
|Cable sheath color
||3.0mm armored tube, Black color
Standard export carton box or custom made box as customer requested
Door to Door service:DHL,TNT,Fedex,UPS International EXPRESS 3-5 working days
Airport to Airport:By Air(Customer need contact local logistic company for custom clearance)
Seaport to Seaport: for large quantity order
1. Question: What is your minimum order quantity?
Answer: Any trial order in small quantity is welcome.
2. Question: Does your company accept sample orders?
Answer: Yes. Send us your drawings . The products can be customized according to your requirements.
3. Question: What payment terms do you accept?
Answer: T/T, Union Western and Paypal
4. Question: Which mean of delivery your company supports?
Answer: We support express delivery, air transportation , railway transportation and sea transportation.
Drawing for related fiber cable
Packaging and Shipment
Welcome to contact us if you need Outdoor Fiber optic G657A FULLAX Waterproof Cable assemblies Fiber To The Antenna Cable Assembly.
