| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 100000 pcs per week |

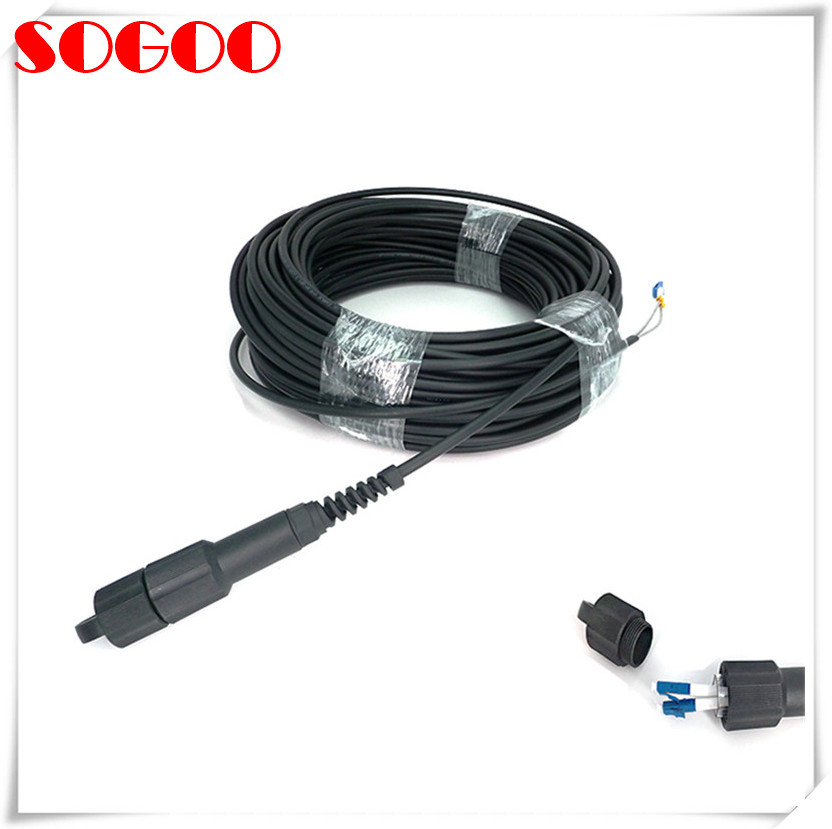

| Product Name: | Fiber Optical Cable Odva Cpri ODC PDLC Fullaxs Connector Outdoor Armored CPRI Cables | Key Words: | Waterproof Fiber Optical Cable |
|---|---|---|---|
| Application: | Aerospace FTTP | Cable: | 5.0 Waterproof For Outdoor |
| Connector: | Waterproof Fullaxs Connector | Length: | Customized Length |
| High Light: | FTTP Waterproof Fiber Optical Cable,Aerospace Waterproof Fiber Optical Cable,RRH Waterproof Fiber Optical Cable |
||
FTTA patch cord is used as: 3G 4G base station, Aerospace & Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX,WIMAX,
BBU, RRU, RRH, LTE.Multimode DLC/PC DLC/PC Outdoor Optical Cable Assembly GYFJH 2A1a(LSZH) 5.0mm 2 Cores with protected branch.
Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
Parameter
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 / 5.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
Plug directly into the optical transceivers though a bulkhead construction, Excellent for Fiber To The Antenna (FTTA) ,Cable accessories and bulkheads ,Excellent for outdoor installations.
Application
*WiMAX and LTE Base Stations
*Remote Radio Heads (RRH)
*Industrial outdoor applications
*Robotics
*Aerospace & Defense
| Item | Specifications |
| Connector A | FULLAXS Duplex LC, Straight boot |
| Connector B | Duplex LC, Straight boot |
| Grounding cable | Grounding cable on side B, Length 1.2m |
| Fiber amount | 2 cores |
| Fiber type | Single mode 9/125um G.657A1 |
| Optical Cable Attenuation at 1310nm | 0.4dB/km |
| Optical Cable Attenuation at 1550nm | 0.3dB/km |
| IL/Connector | ≤0.3dB IEC 61300-3-4 |
| Return Loss/Connector | >50dB IEC 61300-3-6 |
| Operation Temperature Range | -20-70℃ |
| Storage Temperature Range | -20-85℃ |
| Tensile strength | 350 N maximum |
| Bending radius | 180nm minimum |
| Crush Resistance | 1500 N/100 mm |
| Outer sheath | PE, full cable armored |
| Cable sheath color | Black |
| Cable OD | 5mm +/-0.2mm |
| Fan out | 3.0mm armored tube, Black color |
Standard export carton box or custom made box as customer requested
SHIPPING :
Door to Door service:DHL,TNT,Fedex,UPS International EXPRESS 3-5 working days
Airport to Airport:By Air(Customer need contact local logistic company for custom clearance)
Seaport to Seaport: for large quantity order
FAQ
1. Question: What is your minimum order quantity?
Answer: Any trial order in small quantity is welcome.
2. Question: Does your company accept sample orders?
Answer: Yes. Send us your drawings . The products can be customized according to your requirements.
3. Question: What payment terms do you accept?
Answer: T/T, Union Western and Paypal
4. Question: Which mean of delivery your company supports?
Answer: We support express delivery, air transportation , railway transportation and sea transportation.
Drawing for related fiber cable
Look forward to your inquiry on Fiber Optical Cable Odva Cpri ODC PDLC Fullaxs Connector Outdoor Armored CPRI Cables.
