| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3~15 days |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 2000 pcs per week |

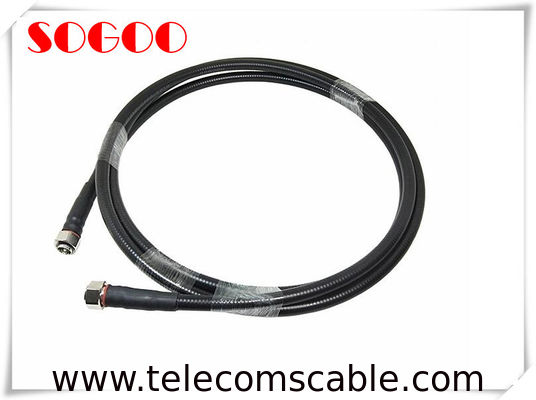

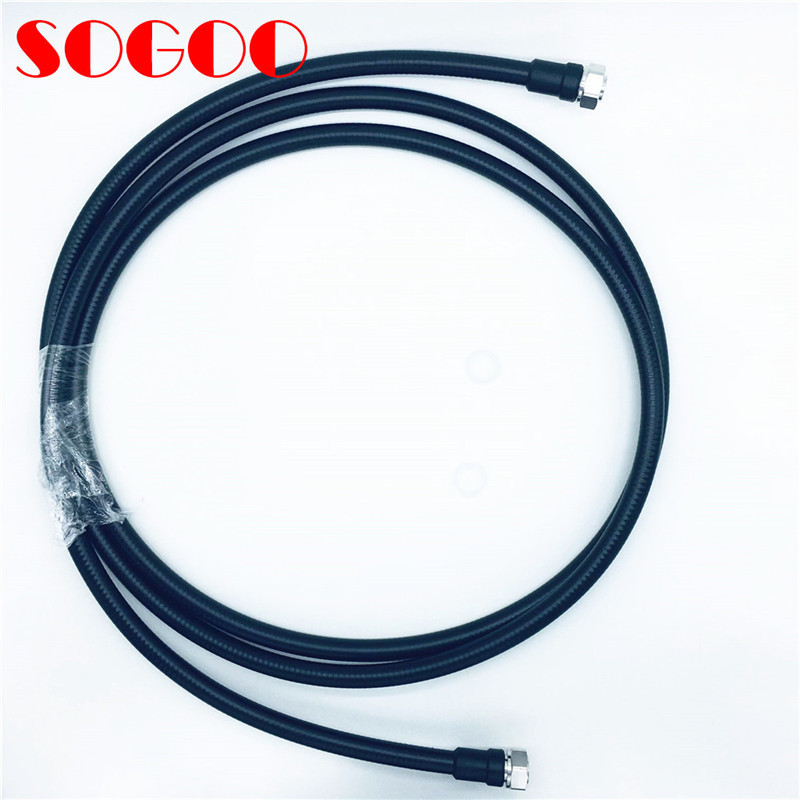

| Product Name: | RF Coaxial Cable Assembly Mini Din Male 4.3-10 Mini Din Male 4.3-1.0 For 1/2 Super Flex Cable | Length: | 0.2~10m |
|---|---|---|---|
| Key Words: | RF Coaxial Cable Assembly | Connector: | Mini Din Male 4.3-10 Mini Din Male 4.3-1.0 |
| Application: | Telecommunication | Cable: | 1/2 Super Flex Cable |
| High Light: | Mini Din Male RF Jumper Cable,Mini Din Male jumper cables,1/2 Super Flex Cable 4.3-10 |
||
RF cable assembly is aproduction of RF coaxial connectors and flexible cable or semi-rigid, semi-flexible cable assembly , widely used in microwave equipment and data communications equipment.
In RFID systems, will need a lot of RF cable assemblies, such as the connection between the reader and the antenna.
Cable Assembly suitable for cabinets and modules, cabinets and Cabinet, antenna and feeder cable, feeder cable connection to the Cabinet. Cable Assembly various in style, user besides choosing the length of the standard cable, Can put forward the length of specification of the special request.
Application:
GSM system .GPS navigation system .Wireless communication system .Antennas.Car radio .
Test equipment Microwave components..Data transmission .LAN system .Satellite transmission .
Aviation equipment .2.4g system.
|
Mini DIN paramter |
|
|
Temperature range |
-55~+155°C |
|
Vibration |
100m/s2 (10~500Hz) |
|
Impedance |
50 OHM |
|
Frequency Range |
DC – 7.5GHz |
|
Working Voltage |
2700V max |
|
Break-down Voltage |
4000V rms @ sea level |
|
Contact resistance |
≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact |
|
Average power |
3KW max |
|
Insulation resistance |
≥10000M OHM |
|
VSWR |
≤ 1.20/6GHz Straight ≤ 1.35/6GHz Right Angle |
|
Durability (mating) |
≥500 (cycles) |
Material & Plating
|
Body |
Brass |
Nickel plated / Alloy plated |
|
Inner Pin |
Brass |
Gold plated |
|
Resilient Contact |
Beryllium Copper |
Gold plated |
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
|
O-ring sealing |
Silicone Rubber |
|
Packing details:
1, our standard packing: 1pcs connector put into a transparent polybag, every big polybag with a label. then put into a carton.
2, packing as buyer's option.
Delivery details:
1, the lead time for samples is 7~10 days, 10~15 days for the production.
2, for the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder.
1.100% high quality, all failed parts get free warranty within 30 days after received.
2.Accept 10 years warranty upon customer requirement.
3.Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4.Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5.Unique designed package for you can be provided upon customer requirement.
6.Special feature and service can be provided upon requirement.
Look forward to your inquiry to RF coaxial cable assembly Mini Din male 4.3-10 Mini Din male 4.3-1.0 for 1/2 Super Flex cable.
