| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 500m / wooden drum |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 1000000m per week |
| Product Name: | RF Leaky Feeder Cable | Dia: | 1/2 3/4 7/8 RF Feeder Cable |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Telecom |
| Cable: | Coaxial Cable 1/2 3/4 7/8 | Insulation Material: | Foam PE |
| Conductor Material: | Copper | Other Options: | Model Number: 1/2" /1/4" RF /3/8" RF/ 7/8" RF/ 1-1/4"RF Feeder Cable |
| Highlight: | 1/2 coaxial cable,7/8 RF coaxial cable,7/8 RF Feeder Cable |
||

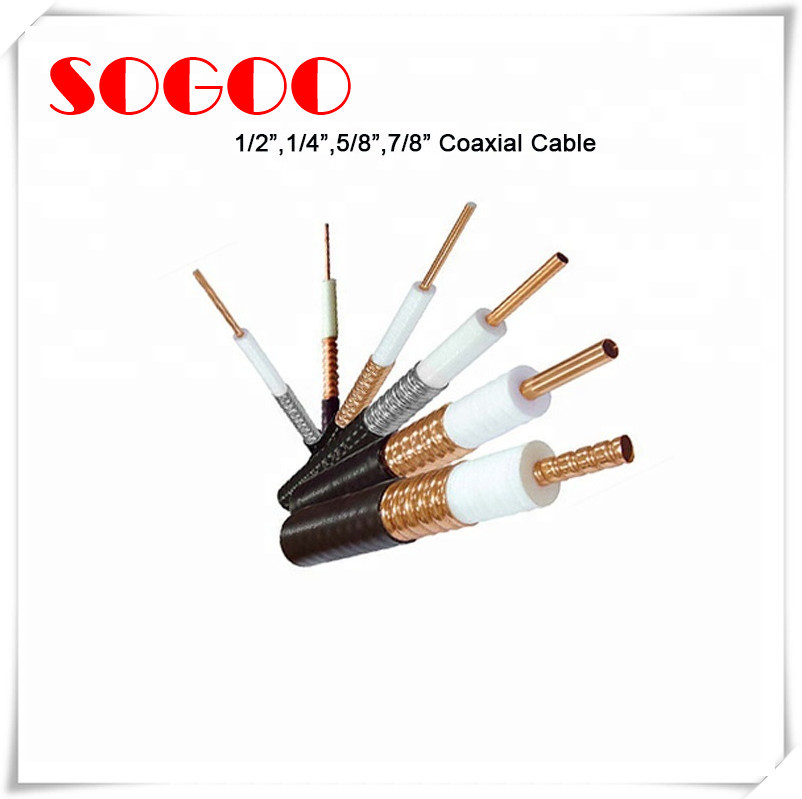

50 ohms corrugated copper tube coaxial cable is mainly used for the connection of transmitter, receiver and antenna and also connection between wireless communication equipments or other low loss and VSWR signal transmission at high frequency application. The cables is featured with low attenuation, low VSWR, small coefficient of temperature, strong corrosion resistance, good longitudinally water seal and high power capacity.
Mechanical Properties
|
Bending radius, mm |
Single Repeated Moving |
70 125 350 |
|
| Pulling strength,N | 1130 | ||
| Crush resistance,kg/mm | 2.0 | ||
|
Recommended temperature,℃ |
PE jacket |
Store Installation Operation |
-70~+85 -40~+60 -55~+85 |
|
Fire retardant PE jacket |
Store Installation Operation |
-30~+80 -25~+60 ~30+80 |
|
Electrical properties
| Impedance,ohm | 50±2 |
| Capacitance,PF/m | 75.8 |
| Inductance,μH/m | 0.19 |
| Propagation velocity,% | 88 |
| DC breakdown voltage,kV | 4.0 |
| Insulation resistance,Mohm*km | >5x10³ |
| Peak power,kW | 40 |
| Screening attenuation,dB | >>120 |
| Cut-off frequency,GHz | 8.8 |
Attenuation & Average power rating
| Frequency Mhz | Nom.attenuation@20℃,dB/100m | Power rate@20℃,kW |
| 10 | 0.67 | 11.30 |
| 100 | 2.17 | 3.49 |
| 200 | 3.10 | 2.44 |
| 450 | 4.75 | 1.59 |
| 800 | 6.46 | 1.17 |
| 900 | 6.85 | 1.10 |
| 1000 | 7.28 | 1.04 |
| 1500 | 9.09 | 0.833 |
| 1800 | 10.10 | 0.753 |
| 2000 | 10.70 | 0.710 |
| 2300 | 11.50 | 0.627 |
| 3000 | 13.40 | 0.565 |
| Maximum attenuation value shall be 105% of the nominal attenuation value | ||
| VSWR | ||
| 800~1000MHz | ≤1.15 | |
| 1700~2200MHz | ≤1.15 | |
| Standards | ||
| 2011/65/EU | Compliant | |
Technical Data
| Type | Impedance | Diameter of Conductor | Jacket | Weight | ||
| (Ohms) | Inner(mm) | Outer(mm) | Thickness(mm) | Diameter(mm) | (kg/km) | |
| 1-5/8" | 50 | 17.30 | 46.50 | 1.75 | 50.00 | 1310 |
| 1-1/4" | 50 | 13.10 | 35.80 | 1.80 | 39.40 | 980 |
| 7/8" | 50 | 9.05 | 24.90 | 1.30 | 27.50 | 530 |
| 5/8" | 50 | 7.05 | 19.80 | 1.20 | 22.20 | 400 |
| 1/2" | 50 | 4.80 | 13.80 | 1.00 | 15.80 | 240 |
| 3/8" | 50 | 3.15 | 9.53 | 0.85 | 11.20 | 135 |
| 7/8"S | 50 | 9.42 | 24.90 | 1.05 | 27.50 | 430 |
| 1/2"S | 50 | 3.60 | 12.20 | 0.70 | 13.20 | 120 |
| 1/4"S | 50 | 1.01 | 6.40 | 0.60 | 7.40 | 80 |
services: In order to meet our clients' requirements, we also customize special
products. Just show us your drawing, sample or indicated details, we will produce
it or please kindly send us your specific engineering parameters such as IMD, VSWR,plating etc. We will discuss with you about the details and please feel free to
contact us.
Quality: In order to ensure product quality, we have combined with our highly
qualified employees, advanced production lines, sophisticated testing equipment
and nationwide service network.
Guaranty: We provide comprehensive service, including quality service, guidance
services, We focus on customer needs in every detail.
Look forward to your inquiry to Coaxial Cable 1/2 3/4 7/8 High Quality RF Leaky Feeder Cable.
