FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended

FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended
FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended
FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended
Basic Information
Place of Origin: China
Brand Name: OEM/ODM
Certification: RoHS
Model Number: FC95700060-C
Minimum Order Quantity: 10 pcs
Price: sales@sogootech.com
Packaging Details: PP bag+ paper carton
Delivery Time: 3-20 days depends on quantity
Payment Terms: Paypal,T/T, Western union
Supply Ability: 100000 pcs per week
Contact Now
Model Number:: FUFBA MM OD Fiber LC OD-LC OD Dual 30 M 473303A,RFM/RRH,995756 Nokia NSN Dual, HF,OM2 Flexible Ended Key Words: 30m FUFBA LC OD-LC OD Fiber Optical Jumper
Length: 30m NSN Boot Fiber Optical Jumper Connector: LC OD-LC OD
Boot Type: Uni Boot / NSN Application: Nokia RFM/RRH
High Light:

FUFBA MM OD fiber

,

473303A 30m Nokia RRH fiber jumper

,

LC OD-LC OD fiber patch cord

FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, OM2 Flexible ended

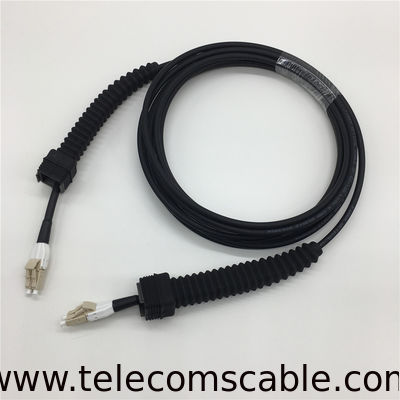

FUFBA MM OD Fiber LC OD-LC OD is 30m, used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia 473303A. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.



Application

  1. Multi-purpose Outdoor.
  2. For connection between distribution box and RRH. 3.Deployment in Remote Radio Head cell tower applications.

Features

1.Easily add/install jumper cables for a future expansion.

2.Low insertion loss and added loss.

3.Height of attenuation.

4.Flexibility with small bending radius and excellent cable routing properties.

5.End-face geometry and quality superior than IEC and Telcordia standards.

6.The material in the jumper cable are all-weather and UV-resistant.

7.IP67 water and dust protection.

8.Mechanical performance: IEC 61754-20 standard.

9.RoHS and REACH materials compliant.



Connector Types



Type Reference Note



LC



IEC 61754-20



Single mode duplex

 UPC: Blue connectors
Multimode duplex UPC: Grey Connectors



Dimensional Diagrams



  1. NSN boot 180°dulex LC Fiber Optic Jumper



End1 FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended 0End2

  1. NSN boot 90°dulex LC Fiber Optic Jumper





End1 FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended 1End2



3. Flexible LC OD - LC OD Fiber Optic Jumper

FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended 2​







Patch cord versions



Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0＜L≤20 +10/-0
20＜L≤40 +15/-0
L＞40 +0.5%L/-0



Cable Structure- No Armoureed

FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended 3












Cable Count



Out sheath Diameter

(MM)





Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)



Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 30 800 400 2000 1000 20D 10D -20 ~~ +70







Cable Parameters- Amoured

FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended 4







Cable Count



Out sheath Diameter

(MM)





Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)



Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 45 400 800 2000 3000 20D 10D -20~~+70




FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended 5



Related NSN uni-boot Outdoor optical fiber jumper cable



Name

Product code

Length

Cable label

Usage

Notes

FUFAS MM OD fiber LC
OD-LC OD dual 2 m

473288A

2 m (6.6 ft)

995741

OM2 - RFM/RRH

MM, LC dual OD IP-LC OD IP
dual, HF,OM2
Flexible ended

FUFAR MM OD fiber LC
OD-LC OD dual 5 m

473287A

5 m (16.4 ft)

995740

FUFBC MM OD fiber LC
OD-LC OD dual 10 m

473305A

10 m (32.8 ft)

995758

FUFBA MM OD fiber LC
OD-LC OD dual 30 m

473303A

30 m (98.4 ft)

995756

FUFBB MM OD fiber LC
OD-LC OD dual 50 m

473304A

50 m (164 ft)

995757

FUFAY MM OD fiber LC
OD-LC OD dual 100 m

473302A

100 m (328.1 ft)

995755

FUFBD MM OD fiber LC
OD-LC OD dual 200 m

473306A

200 m (656.2 ft)

995759

FUFBA MM OD fiber LC OD-LC OD dual 30 m 473303A,RFM/RRH,995756 Nokia NSN dual, HF,OM2 Flexible ended 6
