| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PVC bag+ Carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per week |
| Model Number:: | MTP Female - SC APC Patch Cord OM4 MM Fan-out 2.0 Cable Assemblies Optical Fiber Patch Cord | Key Words: | Fiber Fan Out Cable Assembly |
|---|---|---|---|
| Insertion Loss: | ≤0.35dB | Connector: | MTP-SC APC |
| Application: | 5G Telecom | Length: | 1M/2M/3M/Customized |
| Highlight: | OM4 Fan Out fiber optic cable,OM4 Fiber patch cord,MTP SC fiber patch cord |
||

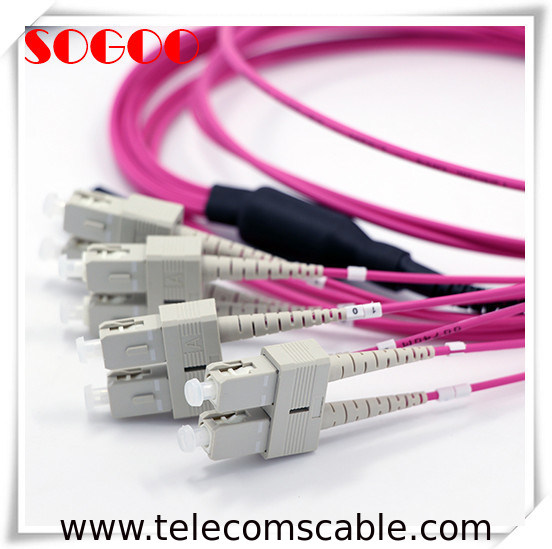

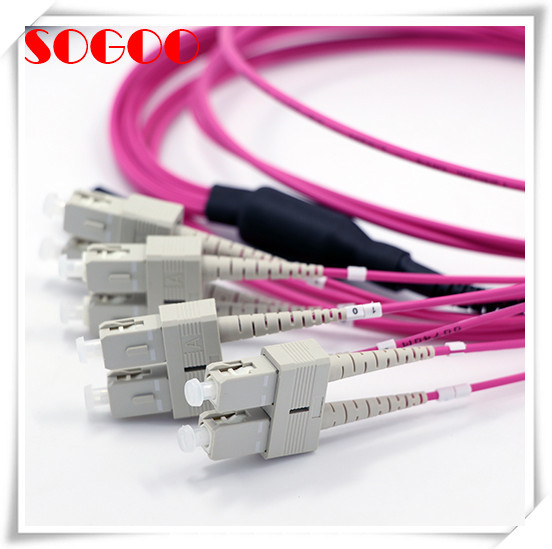

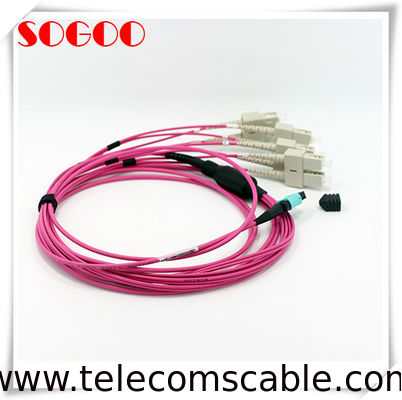

MTP harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Known as MTP breakout cable or MTP fan-out cable as well, it has a single MPO connector on one end that breaks out into 4-12 connectors, and these connector types can be LC, SC, ST, etc. It’s available in 4, 6, 8, or 12 fiber cable configurations with lengths from 0.5-100 meters and other customized lengths. MTP harness cable provides a reliable, cost-effective cabling system for migrating from legacy 10G to higher speed 40G/100G Ethernet. The following are
the advantages of MTP harness cable:
§ Space saving—The active equipment and backbone cable are good for saving space.
§ Easy deployment—Factory terminated system saves installation and network reconfiguration time.
§ Reliability—High standard components are used in the manufacturing process to guarantee the product quality.
MTP-LC/SC/FC/ST Fiber Patch Cord are terminated with MTP andLC/SC/FC/ST connector on both end. All of OMC’s MPO Connectors are from USCONEC.
MTP products’ Standard:
Ø Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Ø Structured cabling per TIA-568-C
Ø Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
Ø InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Other connectors’ Industrial Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.
Specification.
MM
| Connector A | MTP (Female) | Connector B | LC UPC x6 |
| Fiber Category | 50μm MM (OM4) | Fiber Count | 12 |
| Fiber Type | Simplex/Duplex | Wavelength | 850nm/1310nm |
| Cable Jacket | 3.0mm LSZH-Magenta | Fan-Out Diameter | 2.0mm |
| Insertion loss, max. | ≤0.35dB | Return Loss, min. | MTP≥35dB, LC≥35dB |
| Tensile strength | 220 N | Durability | ≥500 times |
| Min. Bend Radius Installation | 30 mm | Min. Bend Radius Operation | 10 mm |
SM
| Connector A | MTP (Male) | Connector B | LC UPC (12) |
| Fibre Category | 9/125μm SMF | Fiber Count | 24 |
| Fiber Type | Duplex | Wavelength | 1310nm/1550nm |
| Cable Jacket | 3.0mm LSZH-Yellow | Fan-Out Diameter | 2.0mm |
| Insertion loss, max. | ≤0.35dB | Return Loss, Min. | MTP≥55dB, LC≥50dB |
| Breakout Length | 0.5m | Durability | ≥500 times |
| Min. Bend Radius Installation | 29 mm | Min. Bend Radius Operation | 15 mm |
| Tensile strength | 400 N | Crush resistance (Reversible) | 750 N/10 cm |
| Operating Temperature | -40° to +80°C | Fiber Grade | G652D |
G657---- 7.5MM (Min. Bend Radius Operation)
If you interested in our MTP Female - SC APC Patch Cord OM4 MM Fan-out 2.0 Cable Assemblies optical fiber patch cord, feel free to let me know.
