| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |
| Product Name: | ODVA MPO Fiber Optic CPRI Cable, Fiber Optical Cable 12 Core MPO Trunk Cable | Key Words: | ODVA MPO Fiber Optic CPRI Cable |
|---|---|---|---|
| Connector: | LC | Insertion Loss: | <=0.3 DB |
| Wire Diameter: | 7.0 Mm | Length: | Customized |
| High Light: | MPO Trunk Cable,ODVA MPO Fiber Optic Cable,12 Core MPO Trunk Cable |
||

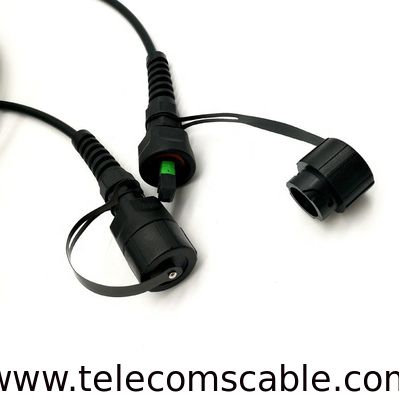

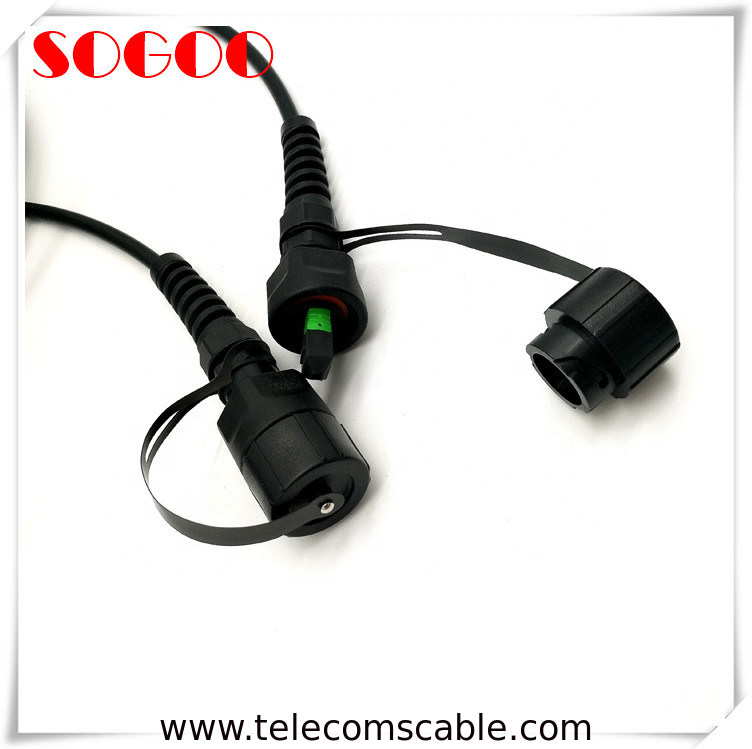

ODVA MPO Fiber Optic CPRI Cable, Fiber Optical Cable 12 core MPO Trunk cable
Special water-proofing design make sure the connector has blind-mating function, provides quick installation solutions and has good performance, it can compatible with all the similar products in market. Cable can be flat drop or round cable, amored or non-amored. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.
Specifications:
| Model | SM | MM |
| MPO/MTP Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color |
Standard (green), Elite (Yellow) |
Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
| Cable OD | 5.0mm, 6.0mm, 7.0mm armored / non armored | |
Features :
*Provides moisture and dust protection for use in harsh industrial environments.
*IP67 protection, salt-mist proof, humidity proof, dust proof.
*Drastically reduces field splicing with a predetermined loss at each waterproof tether access point.
*Utilize traditional field installation techniques for aerial, below ground and duct applications.
*Reduce installation time by as much as 50 percent per network access point.
*100% optically tested to ensure quality performance assemblies at factory.
*Available in single mode and multimode styles to work with any common fiber type, high density cable
*Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications.
Application
Look forward to your inquiry on ODVA MPO Fiber Optic CPRI Cable, Fiber Optical Cable 12 core MPO Trunk cable.
