| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PVC bag+ Carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per week |
| Key Words: | 12 Core MTP Breakout Optical Fiber Cable | Model Number:: | Optical Fiber Breakout Cable |
|---|---|---|---|
| Connector: | MTP-FC | Cores: | 12 Core Fiber Breakout Cable |
| Application: | Meical Cable | Length: | 1M/2M/3M/Customized |
| Highlight: | MTP Breakout Fiber Optic Patch Cord,MTP Fiber Optic Patch Cord,MTP Fiber Breakout cable |
||
The MPO Cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications. FIBERCAN Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.

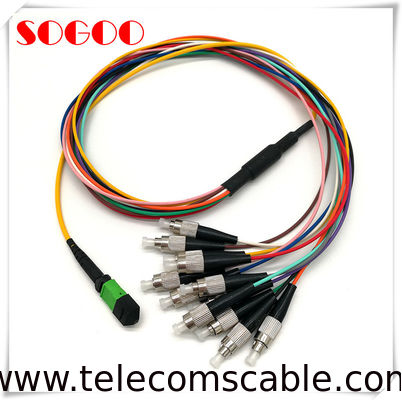

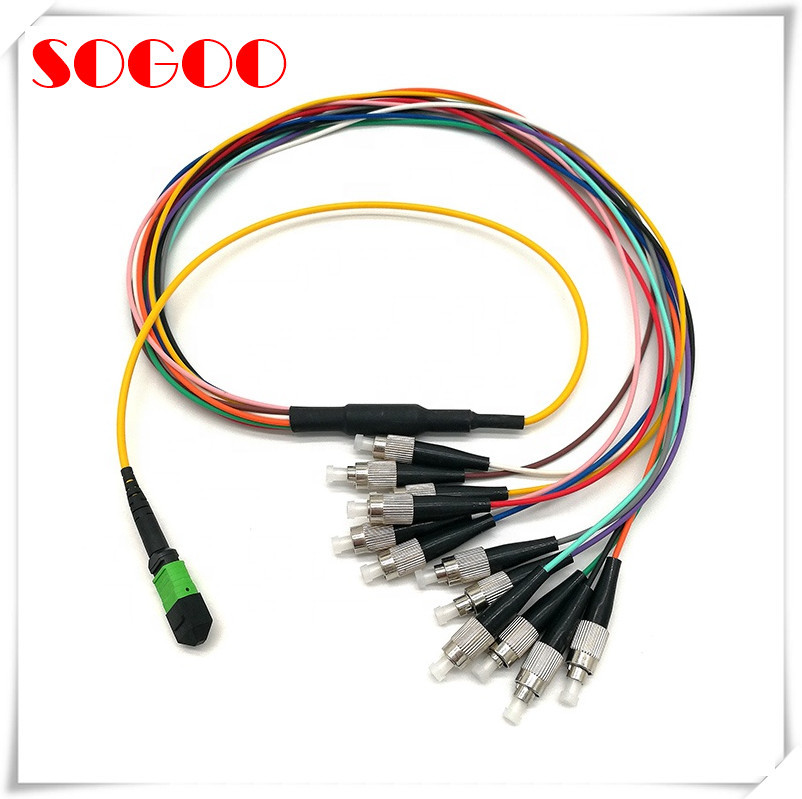

| Product Name : | 12 Core Optical Fiber Cable MTP Breakout FC Fibre Optic Cable Patch Cords |
| Model | MTP/-3-4/5-6-78 |
| 1. A connector | MTP female /male |
| 2. B end connector | FC UPC / ACP |
| 3. Fiber counts | 12 cores |
| 4. Fanout length | 0.15 (0.2, 0.3, 0.5m, etc..) |
| 5. Fiber Type | 9/125 |
| 6. Cable Type | 3.0mm O.D. multi-fiber mini micro cable 12 core breakout 2.0mm simplex cable |
| 7.Cable Jacket | LSZH / PVC |
| 8. Cable length | 1m, (2m,3m,5m etc..available) |
| Other further info. | Fiber barnds, Cable purpose and tensile strength. |
Features :
1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;
2; Different size & color boot option;
3; Low insertion loss; High return loss;
4; 100% interferometer measurement available;
Associated Standards:
* Meets IEC Standard 61754-7& JIS C5982
* Structured cabling per TIA-568-C
* Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
* Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Connector Performance-MTP
| Connector Type | 12-Fiber Or 24Fiber MPO/MTP (non-pinned) |
| Polish | PC(MM); APC(SM) |
| Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Insertion Loss, Typical (MTP/MPO) | ≤ 0.10 dB |
| Insertion loss, max. (MTP/MPO) | ≤ 0.3 dB |
| Return loss (MTP/MPO SM) | PC >55dB; APC> 60dB |
| Insertion Loss, Typical (LC/SC) | ≤ 0.10 dB |
| Insertion loss, max. (LC/SC) | ≤ 0.3 dB |
| Return loss (LC/SC SM) | PC >55dB; APC> 65dB |
| Durability(500 Matings) | < 0.2dB |
Packaging & Delivery
Packaging Details:by customer's request
Delivery time:5-10 days
Our Services
1. Professional manufacturer, 100% tested.
2. Customers solutions in days, not weeks.
3. Warmly services with careful attentions.
4. Can provide your specific inquiry within 24 hours.
5. Save much costs, bring more benefit for customer to expand business.
Look forward to your inquiry on 12 Core Optical Fiber Cable MTP Breakout FC Fibre Optic Cable Patch Cords.
