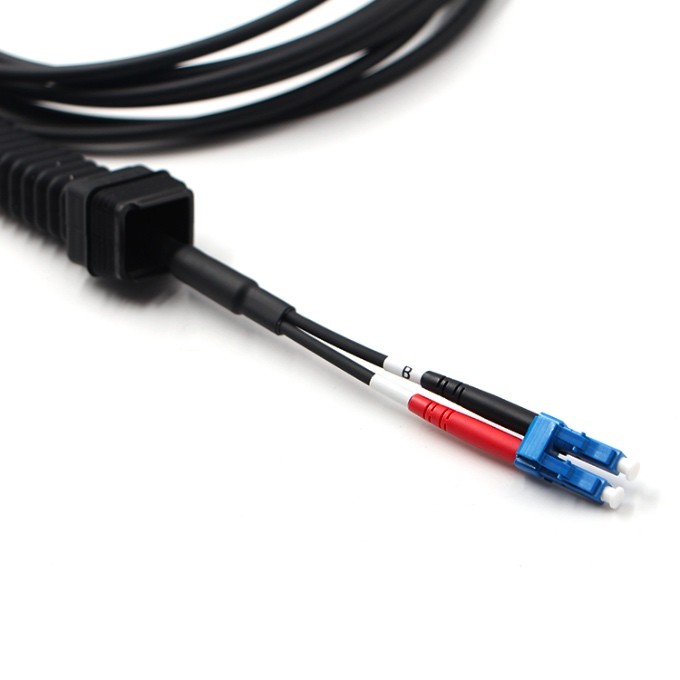

NSN Boot Duplex LC Fiber Optic Patch Cable For Nokia BBU RRU

Basic Information
Place of Origin: China
Brand Name: OEM/ODM
Certification: CE, RoHS
Minimum Order Quantity: 50 pcs
Price: negotiatable
Packaging Details: PP bag+ paper carton
Delivery Time: 3-20 days depends on quantity
Payment Terms: Paypal,T/T, Western union
Supply Ability: 2000 pcs per week
Product Name: NSN Boot Duplex LC Fiber Optic Patch Cable Key Words: NSN Boot Fiber Optic Patch Cord
Cable: 5.0mm Outdoor Fiber Cable Compatible: Nokia BBU RRU
Warranty: 1 Year Application: For Nokia BBU RRU
High Light:

NSN Boot Optic Patch Cable

,

RRU Fiber Optic Cable

,

Fiber Optic Patch Cable For Nokia

FTTA NSN Boot Duplex LC Fiber Optic Patch Cable For Nokia BBU RRU

NSN Boot Duplex LC Fiber Optic Patch Cable used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia 173306A. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.

Duplex tight-buffer fiber + central loose tube/ armoured steel tube + kevlar + OD 5.0mm jacket cable, connected with NSN boot LC DX connector.

Product Name : Nokia Patch Cord Compatible NSN Connector LC DX Fiber Optic Cable
Model NSN Uni-boot both end DX LC/UPC-LC/UPC
Cable Type 5.0mm armoured LSZH 2core YOFC fiber
Cable weight 2kg/pc
Length 50m or customized


DX LC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.



Features:
1. IP67 rated to ensure protection from dust and water immersion
2. LC connector qualified to Telcordia GR-326 and TIA/EIA 568B.3
3. Temperature range of -40°C to +85°C
4. Bayonet-style mechanical lock
5. Flame retardant materials per UL 94 V-0

Applications:
1. Harsh environments where chemicals, corrosive gases and liquids are common place.
2. Inside and outside industrial plant and equipment that interface with industrial Ethernet networks.
3. Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
4. Mobile routers and internet hardware



Connector Standard DLC connector
Fiber Type SM MM
Protection IP67 protection, salt-mist proof, humidity proof
Insertion Loss ≤0.3dB
Mechanical life 500cycles
Tensile Data Tensile between junction and fiber cable≥100N
Working temperature -20°C~+70°C
Used for 4G 5G base station BBU, RRU, RRH, LTE
Length 10m 20m 30m 50m 100m or customized
Product Keywords nsn boot fiber optic connector,Outdoor Fiber Optic Patch Nsn Cable,Nsn Outdoor Fiber Optic Cable



Features:



  • Standard DLC connector;
  • Available Single mode and Multimode;
  • IP67 protection, salt-mist proof, humidity proof;
  • Aluminum housing, compact design;
  • Broad temperature range and wide range of indoor and outdoor Patch cables;
  • Easy Operation, reliable and cost-effective Installation;
  • The connector of side A is DLC, and side-B can be LC,FC,SC;
  • Used for 4G 5G base station BBU, RRU, RRH, LTE;



Item Data
Insertion Loss ≤0.3dB
Return Loss SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life 500cycles
Working temperature -20°C~+70°C
Storage temperature -20°C~+70°C
Protection Level IP67
Tensile Data Tensile between junction and fiber cable≥100N



NSN Boot Duplex LC Fiber Optic Patch Cable For Nokia BBU RRU 0

Our service



1. Any inquiries will be replied within 24 hours.

2. Professional manufacturer, 12 years manufacturing experience.

3. OEM/ODM available

1) Printing your logo on the cable.

2) Printing your logo on the pull our box, make according to your design.

3) Any your idea on cable, packing box are available.

4. High quality, reasonable and competitive price, fast lead time.

5. Good after-Sale Service.





Q&A



1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.



2.Could you do design for us?

yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.



3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.



If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.



4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgent, you can select shipping by Air, but freight charge will be more expensive.



5.what's your products' advantages ?

A. good quality and competitive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.



Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.


NSN Boot Duplex LC Fiber Optic Patch Cable For Nokia BBU RRU 1NSN Boot Duplex LC Fiber Optic Patch Cable For Nokia BBU RRU 2NSN Boot Duplex LC Fiber Optic Patch Cable For Nokia BBU RRU 3
