| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | Cartons |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 100000 pcs per week |

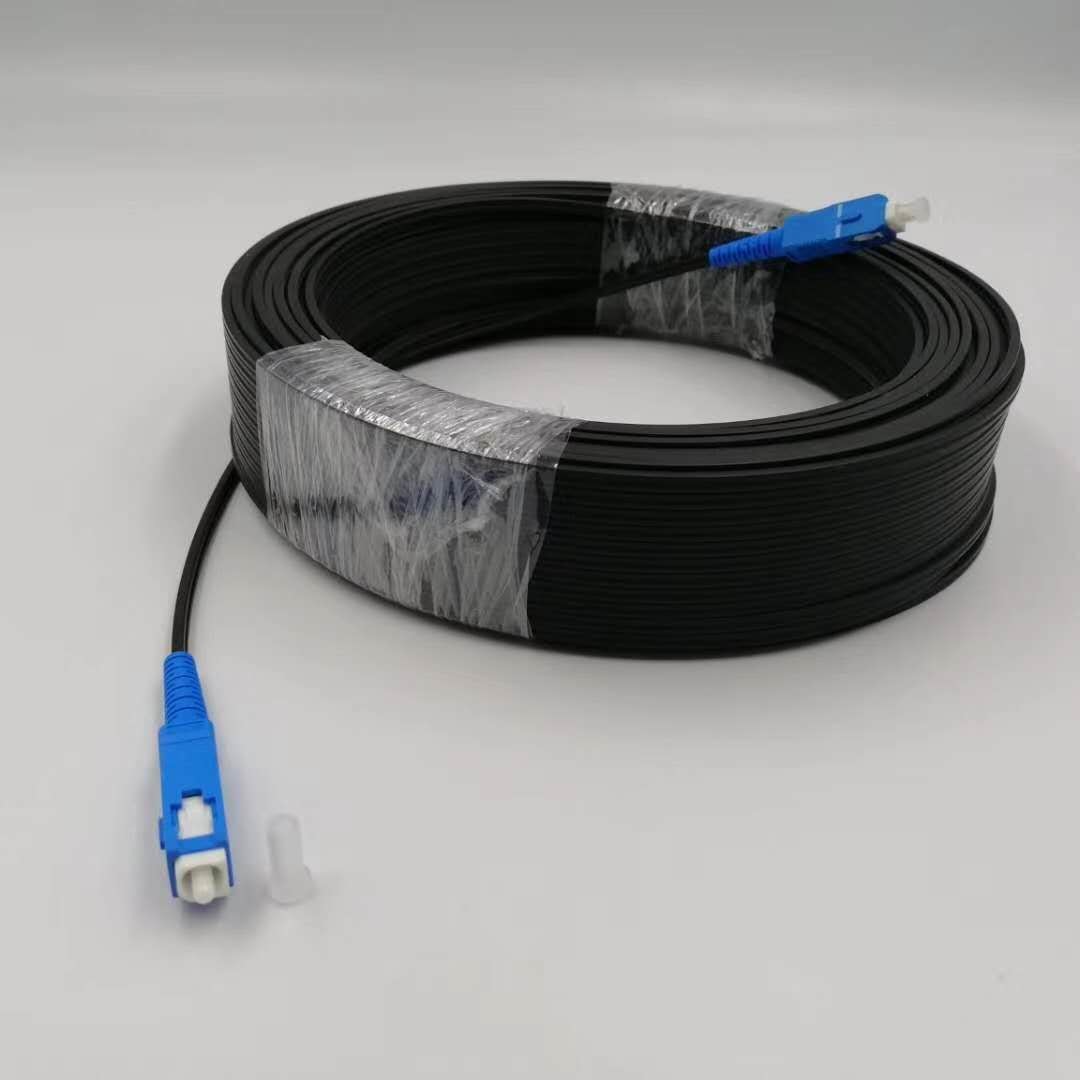

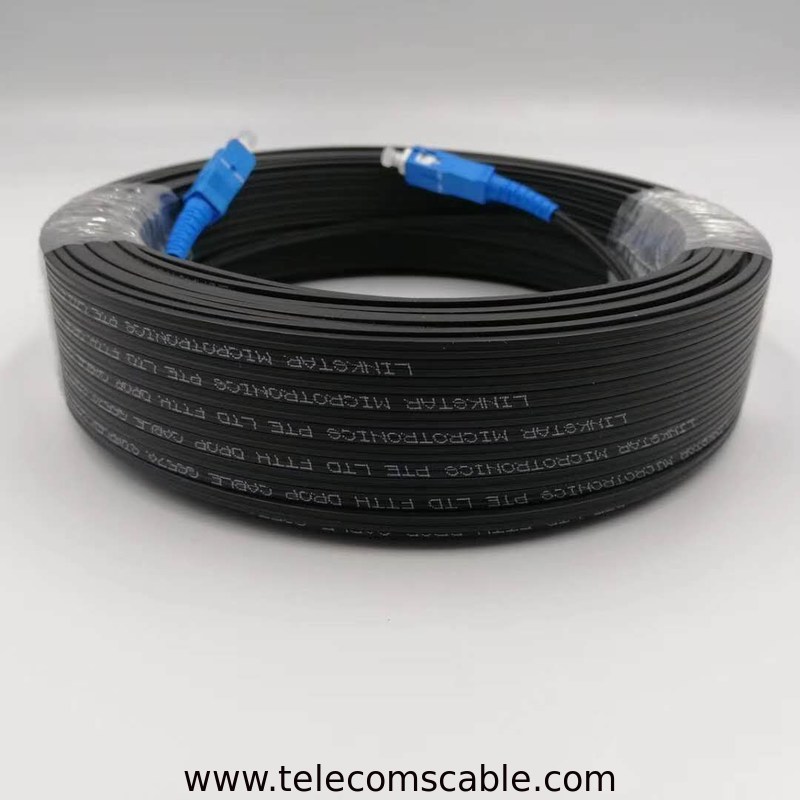

| Product Name: | SC/UPC-SC/UPCFTTH Fiber Optical Patch Cord | Connector: | SC/UPC-SC/UPC |
|---|---|---|---|
| Type: | FTTH | Ferrule End-face: | PC, UPC, APC |
| Packaging: | Cartons | Application: | FTTH |
| Highlight: | FTTH Fiber Optical Patch Cord,SC/UPC-SC/UPC FTTH Fiber Optical Patch Cord,G657A2 FTTH Fiber Optical Patch Cord |
||
FTTH network for indoor and outdoor
Local Area Network and Building Cabling Network Interconnect between instruments,
terminal box and communication
1.Cost effective solution for in house termination. 2.Low insertion loss and added loss.
3. Height of attenuation.
4. The material in the jumpel cable are all-weather and UV-resistant. 5.Mechanical performance: IEC 61754-4 standard.
6. RoHS and REACH materials compliant.
7. Cable diameter Range: 2.0*3.0mm, 2.0*5.0mm..
Dimensional Diagrams
1. SCUPC FTTH Flat Drop Patch Cord 2.0*3.0mm Cable
2. SCUPC FTTH Flat Drop Patch Cord 2.0*5.0mm Cable
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0<L≤20 | +10/-0 |
| 20<L≤40 | +15/-0 |
|
L>40 |
+0.5%L/-0 |
Cable Structure
Cable Parameters
|
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 1 | (2.0±0.1)×(3.0±0.2) | 8 | 100 | 50 | 500 | 100 | 20D | 10D | -20 ~~ +60 |
Cable Structure
Cable Parameters
|
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 1 | (2.0±0.2)×(5.0±0.3) | 21.7 | 400 | 200 | 2200 | 1000 | 20D | 10D | -20 ~~ +60 |
Optical Characteristics
|
Item |
Parameter |
Reference |
|||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
| Return loss |
≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
