| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |
| Product Name: | DLC/DLC GYFJH 7.0mm 2 Cores LSZH G657A2 Armoured Branch Outdoor Fiber Patch Cord | Key Word: | Armoured Branch Outdoor Fiber Patch Cord |
|---|---|---|---|
| Connector: | DLC/PC DLC/PC | Insertion Loss: | <=0.3 DB |
| Wire Diameter: | 7.0 Mm | Branch Cable: | 2 Cores 0.03m/0.34m Armoured |
| Cable Mode: | Multi-mode / Single Mode | Cable Type: | GYFJH 7.0mm 2 Cores LSZH G657A2 |
| Highlight: | armoured fiber optic cable,G657A2 outdoor fiber patch cord,armoured CPRI cable |
||
FTTA RRU Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with 7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket.

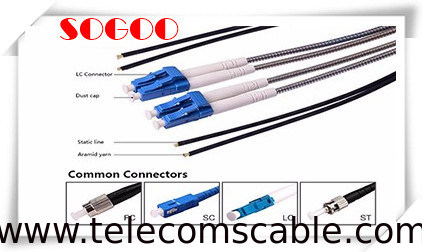

DLC/PC- DLC/PC Optical cable assembly Multimode GYFJH 2B4(LSZH), 7.0mm 2 cores, outdoor protected branch With armored tube.
Benefits of FTTA RRU Armored Outdoor Patch cord:
| Relative to Coax-Fed Antennas | Relative to Homerun Architecture (Separate cables from each remote radio to the base station.) |
|---|---|
|
|
FEATURES
Fiber Specification:
|
Fiber type
|
50/125,9/125
|
|
Core Diameter
|
50 + 2.5
|
|
Core Non-Circularity
|
<=5.0 %
|
|
Cladding Diameter
|
125.0+1.0um
|
|
Cladding Non-Circularity
|
<=1.0 %
|
|
Coating Diameter
|
245+7
|
|
Coating-Cladding Concentricity Error
|
<=12.0um
|
|
Coating Non-Circularity
|
<=6.0um
|
|
Connecton Specification
|
|
|
ITEM
|
PARAMETER
|
|
Connector type
|
DLC/UPC
|
|
Insertion Loss
|
<=0.3db
|
|
Return Loss
|
>=35db
|
|
Fiber mode
|
Multi-mode,50/125,single mode,9/125
|
|
Operating wavelength
|
850nm, 1300nm,1310,1550nm
|
|
Test wavelength
|
850nm, 1300nm
|
|
Repeatability
|
<=0.1
|
|
Interchangeability
|
<=0.2dB
|
|
Durability
|
<=0.2dB
|
|
Fiber Length
|
1m, 2m….. any length optional.
|
|
Length and tolerance
|
10cm
|
|
Operating Temperature
|
-40C ~ +85C
|
|
Storage Temperature
|
-40C ~ +85C
|
Specification
1. GYFJH Cable
1.1 Structure:
1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
1.4 Cable Parameters
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
1. Factory Price
2. OEM
3. Fast delivery,low freight
4. Customize service
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Look forward to your inquiry on DLC/DLC GYFJH 7.0mm 2 Cores LSZH G657A2 Armoured branch outdoor fiber patch cord.
