| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 50 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 100000 pcs per week |

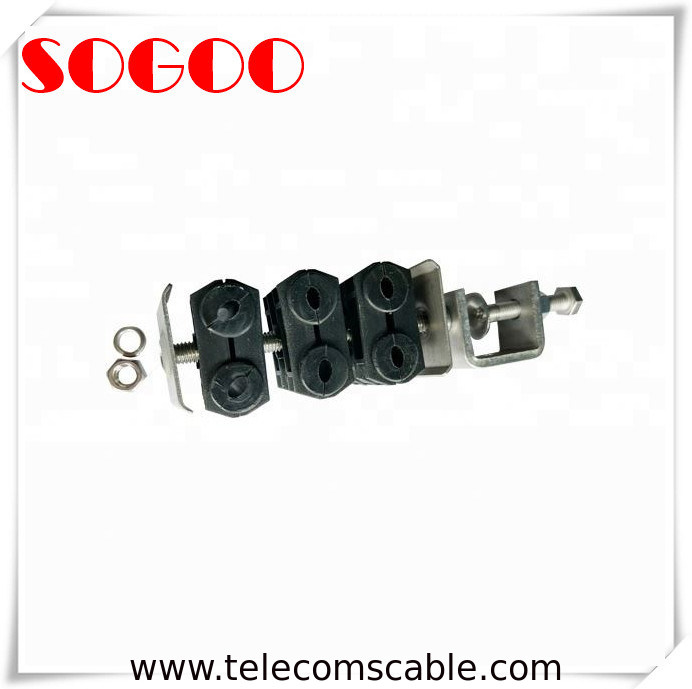

| Product Name: | 3 Double Holes Feeder Coaxial Cable/ Feeder Coaxial Clamp For 7/8" Cable | Application: | Base Station Installation |
|---|---|---|---|
| Cable: | 7/8" Coax Cable | Threaded Rod: | M8 Threaded Hole |
| Material: | SUS304 + PP + Rubber | MOQ: | 1000pcs |
| Highlight: | coax cable clamps,rf cable clamps |
||
Cable Clamp is designed for wireless application, and widely used in site installation to fix coaxial feeder cables to base towers, these clamps provide an efficient way of managing & securing the feeder installation system, they are strictly made out of non-rusting product to sustain all weather conditions. They come with angle member adapter and necessary hardware, the angle member adapter fastens the clamp to tower, cable ladder, angle bar etc. It is mainly composed of 304 stainless steel and anti-ultraviolet polypropylene and rubber grommet which is UV resistant material. The design offers least stress and maximum grip to manage the cable system.
| Application Size | 5~8mm Optical Fiber Cable + 9~13mm Coaxial Cable |
| Clamp Stack: | Single Stack (2 ways) |
| Double Stack (4 ways) | |
| Triple Stack (6 ways) | |
| Fourfold (8 ways) | |
| Plastic Material: | Polypropylene (PP) |
| Material of Clamp Inner: | Soft Rubber |
| Metal Material: | 304 Stainless Steel |
| Material of “U” clamp & Thread Rod | 304SS M8 Thread Rod |
| Match Cable: | 1/4’’, 1/2", 7/8", 1-1/4", 1-5/8" Feeder clamp |
| Match Cable: | RG8, RG213, LMR400 etc. Coaxial Cable |
| Quality warranty: | Anti-rust and heat cold resistant for Indoor/Outdoor Use. |
| Working temperature: | -50°C- +70°C |
| Packing | Poly bag/set, carton, |
| Payment term | T/T, L/C, Western union |
Application scope:
Mobile communication base station (GSM, CDMA, GPRS, etc). Feeder clamps for coaxial RF cable are used with following products:
a, Telecom cable;
b, Fiber cable;
c, Coaxial cable;
d, Feeder cable;
e, Hybrid cable;
f, Corrugated cable;
g, Smooth cable;
h, Braid cable.
Technical Specifications.
|
Item No.
|
CC1278
|
Cable Per Clamp
|
2
|
|
Product Line
|
Cable Clamp
|
Operating Temperature
|
-40℃ to +75℃
|
|
Product Type
|
1 Hole Per Layer, Two Layer
|
Salt Spray Test
|
96h, No Rustiness
|
|
Compatible Cable Size
|
7/8" coax cable X 2 runs
|
UV
|
Protected
|
Component Part.
|
Part Name
|
Specification
|
Quantity
|
Material
|
|
Angle Adapter
|
40x33x24x4.6
|
1
|
SS304
|
|
Gasket
|
Φ20
|
1
|
SS304
|
|
Bolt
|
M8 X 40
|
1
|
SS304
|
|
Threaded Rod
|
M8 X __
|
1
|
SS304
|
|
Plastic Support Block
|
7/8"
|
2
|
PP
|
|
Rubber Gromeet
|
___
|
___
|
___
|
|
Nut
|
M8
|
3
|
SS304
|
|
Flat Washer
|
Φ8
|
2
|
SS304
|
|
Spring Washer
|
Φ8
|
2
|
SS304
|
Packaging & Shipping
| Trade terms | CIF, DDU, EX-WORKS |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 1 |
| Supply capability | 100000 pieces per month |
| Lead time | 3-15 days |
| Shipment | Sea, Air, Express |
| Port | Shanghai, Ningbo, Shenzhen |
| Sample availability | Yes |
| Sample time | 3-5 days |
| Packaging | Plastic bag, Carton, |
Look forward to your inquiry on3 double holes feeder coaxial cable/ feeder coaxial clamp for 7/8" cable.
