| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |

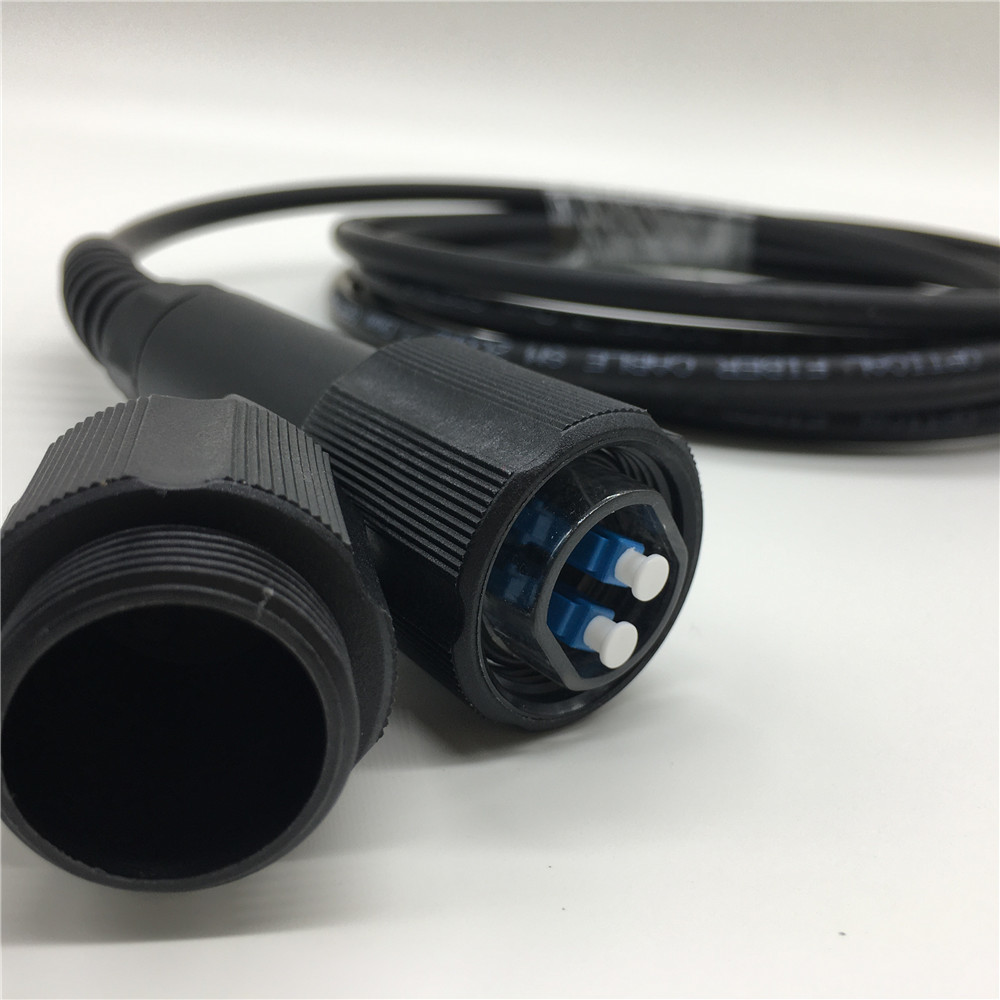

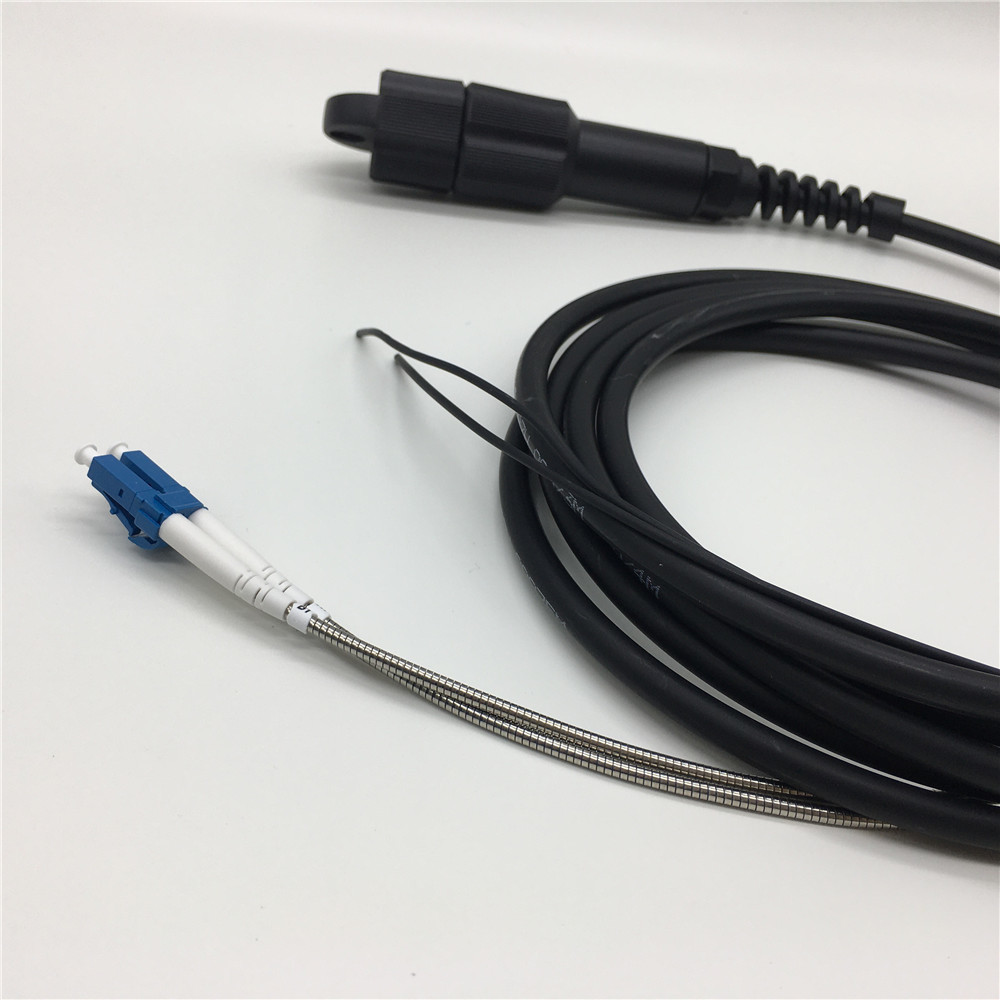

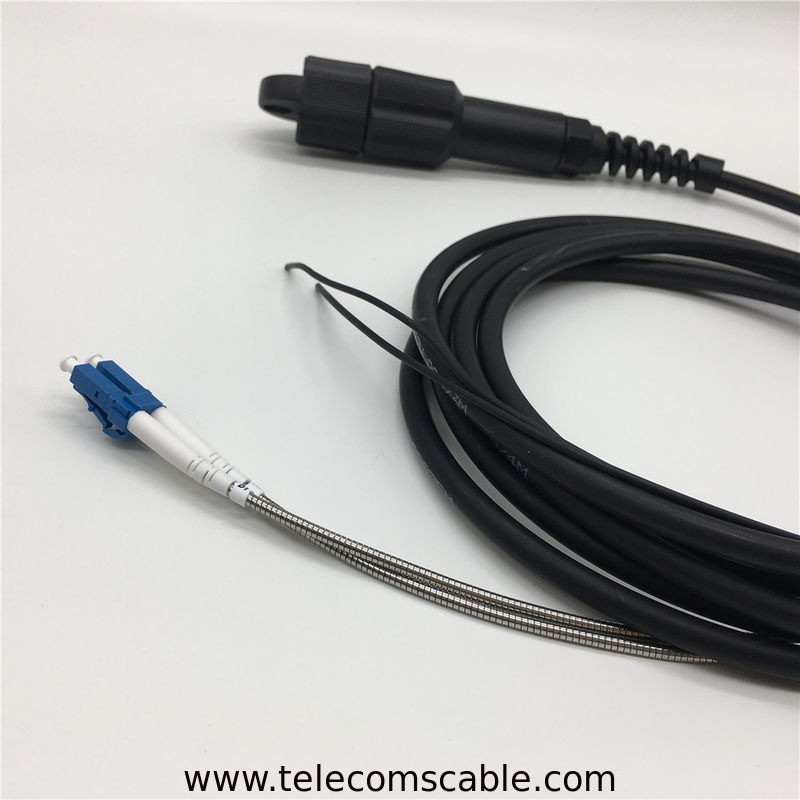

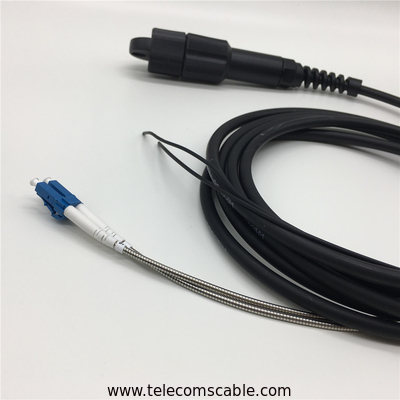

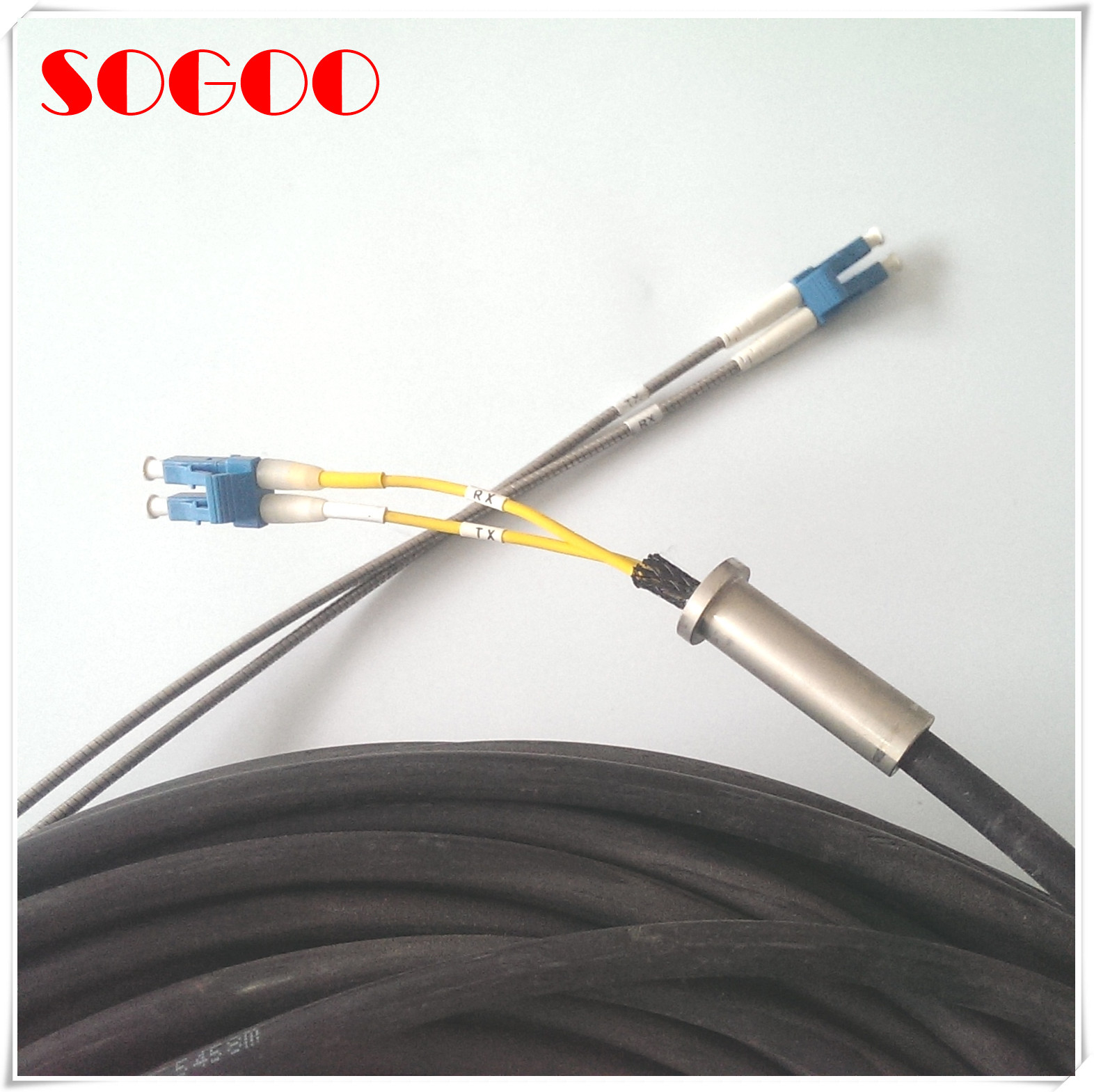

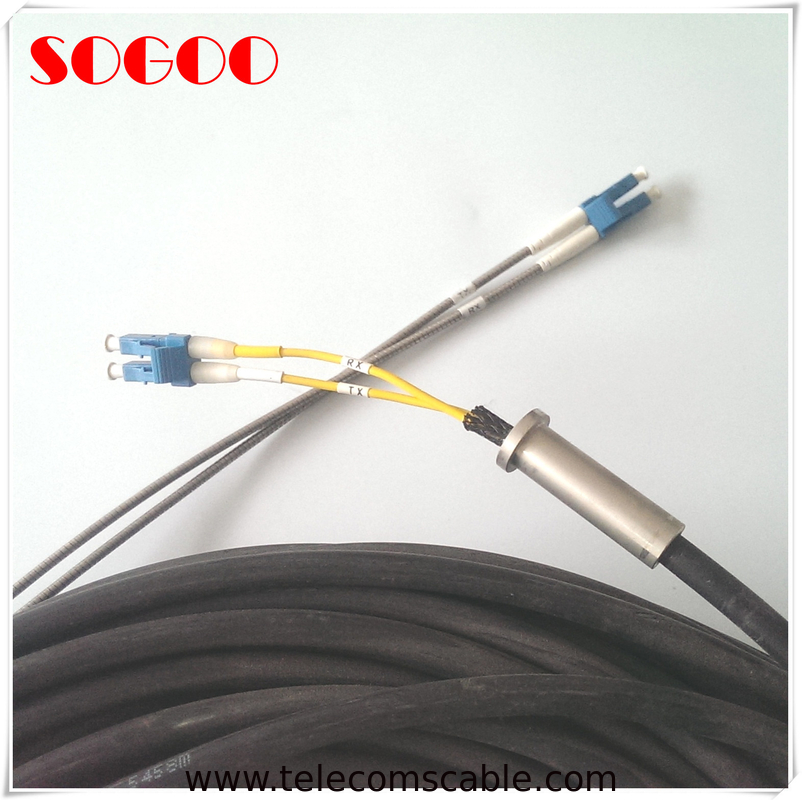

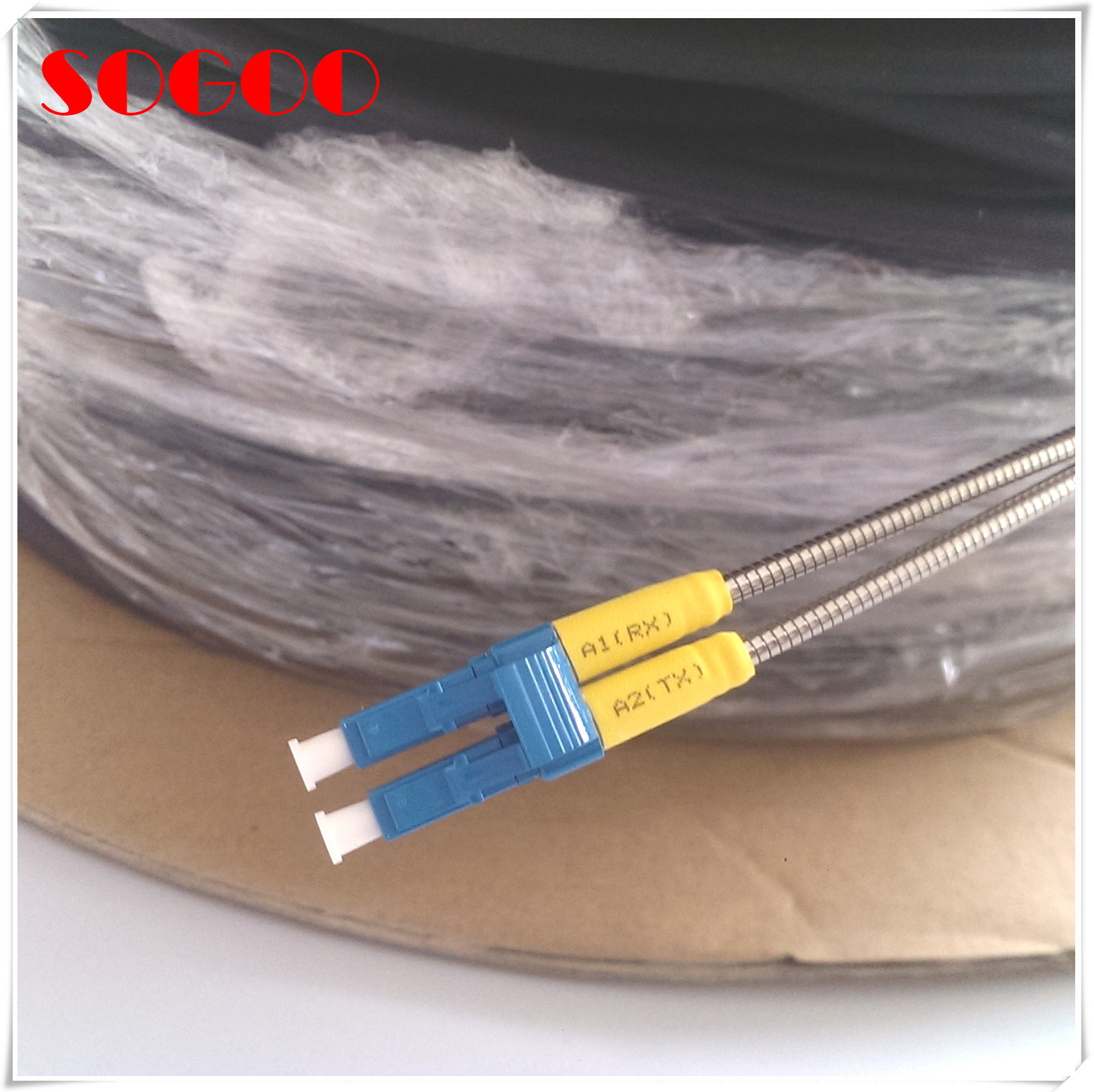

| Product Name: | Outdoor PDLC-DLC Waterproof Singlemode Duplex Fiber Opitc Patch Cord | Length: | 50m |
|---|---|---|---|
| Connector: | PDLC-DLC | Insertion Loss: | <=0.3 DB |
| Wire Diameter: | 7.0 Mm | Cable Mode: | Armoured SM Waterproof Cable |
| Highlight: | optical patch cord,fiber optic patch cables |
||
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
·Good flexibility, Soft, flexible, easy to splice
· High waterproof , moisture-proof, and also have passed testes like salt mist, vibration and shock
· Small diameter, light weight and friendly installation
· Long delivery length
Product Structure
1.End cap
2.DLC connector
3.Armored tube
4.Brancher
5.Transparent housing
6.Shell
7.Optical cable
8.Splitter
9.Armored tube
10.Number tube
11.LC connector
This product works mainly in harsh environments such as outdoor mobile communication base stations. The PDLC-B protective housing is used in conjunction with the PDLC series fiber mounting flange assembly.
specification
| Item | Parameter |
| Connector | DLC/UPC |
| Insertion loss | ≤0.3dB |
| Return loss | ≥35dB |
| Fiber mode | Multi-mode,50/125um |
| Operating wavelength | 850nm,1310nm |
| Test wavelength | 850nm,1310nm |
| Repeat ability | ≤0.1dB |
| Interchange ability | ≤0.2dB |
| Durability | ≤0.2dB |
| Fiber length | 1m,2m.. Any length optional |
| Length and tolerance | 10cm |
| Operating temperature | -40~+85°C |
| Storage temperature | -40~+85°C |
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Look forward to your inquiry on Outdoor PDLC-DLC waterproof singlemode duplex fiber opitc patch cord.
