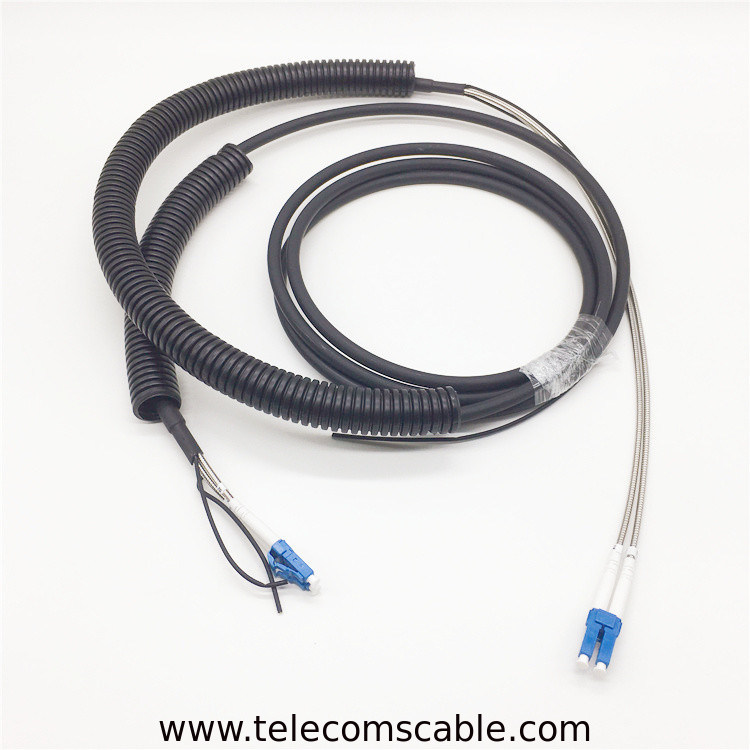

Armored branch 7.0mm 2 Cores CPRI Fiber Cable DLC / PC - DLC / PC SM / MM GYFJH LSZH

Basic Information
Place of Origin: Guangdong, China
Brand Name: SOGOO
Certification: CE, RoHS
Minimum Order Quantity: 10 pcs
Price: sales@sogootech.com
Packaging Details: 10pcs in 1 Anti-static package, standard packing
Delivery Time: 3-20 days depends on quantity
Payment Terms: T/T; Paypal; Western Union
Supply Ability: 2000 pcs per week
Product Name: Fiber Optical Cable Assembly,DLC/PC-DLC/PC,SM/MM,GYFJH (LSZH),7.0mm, 2Cores Outdoor Protected Branch Cable Length: 5M, 10m
Connector: DLC/PC-DLC/PC Insertion Loss: <=0.3 DB
Wire Diameter: 7.0 Mm Cable Mode: SM/MM,GYFJH (LSZH),7.0mm
Highlight:

7.0mm CPRI Fiber Cable

,

CPRI Fiber Cable DLC

,

2 Cores CPRI Cable

Fiber Optical Cable Assembly,DLC/PC-DLC/PC,SM/MM,GYFJH (LSZH),7.0mm, 2Cores Outdoor Protected Branch Cable



CPRI patch cord is used for base staion RRU and BBU connection ,Mainly used in wireless base station horizontal and vertical cabling.

Features

1, Good mechanical and environmental characteristics;

2, Flame retardant characteristics meet the requirements of relevant standards;

3, The mechanical characteristics of jacket meet the requirements of relevant standards;

4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;



5, Meet various requirements of market and clients


Fiber Count
Cable Dimension
mm
Cable Weight
kg/km
Tensile(N)
Crush
N/100mm
Min. Bend Radius
mm
Range of Temperature
Long Term
Short Term
Long Term
Short Term
Dynamic
Static
2
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;





Fiber Specification:
Fiber type
50/125,9/125
Core Diameter
50 + 2.5
Core Non-Circularity
<=5.0 %
Cladding Diameter
125.0+1.0um
Cladding Non-Circularity
<=1.0 %
Coating Diameter
245+7
Coating-Cladding Concentricity Error
<=12.0um
Coating Non-Circularity
<=6.0um





Connecton Specification
ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125,single mode,9/125
Operating wavelength
850nm, 1300nm,1310,1550nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C

Our Service

1. Factory Price

2. OEM

3. Fast delivery,low freight

4. Customize service

Packing & Delivery



Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.


Usage

Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Armored branch 7.0mm 2 Cores CPRI Fiber Cable DLC / PC - DLC / PC SM / MM GYFJH LSZH 0Armored branch 7.0mm 2 Cores CPRI Fiber Cable DLC / PC - DLC / PC SM / MM GYFJH LSZH 1
