| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |

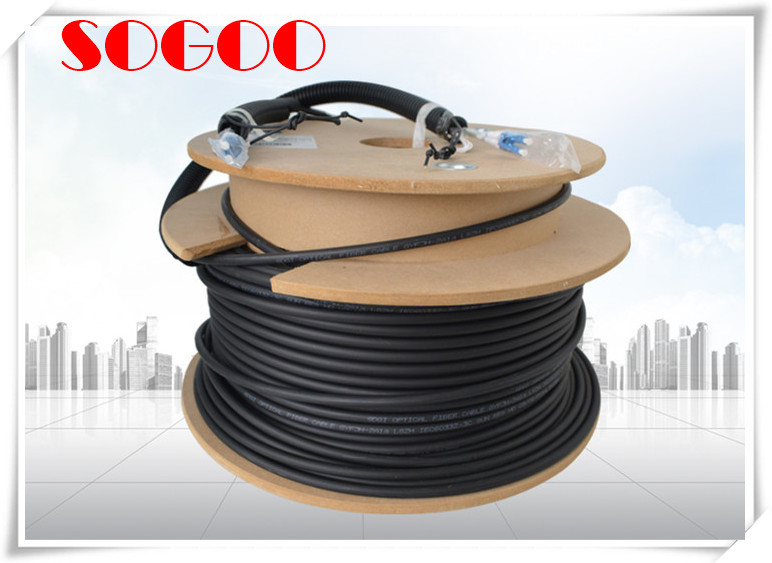

| Product Name: | Outdoor LC-LC Black Fiber Cable 75m 60m,45m, 40m, 10m Outdoor Fiber Patch Cord | Length: | 75m 60m,45m, 40m, 10m |
|---|---|---|---|
| Connector: | DLC/PC-DLC/PC | Insertion Loss: | <=0.3 DB |
| Wire Diameter: | 7.0 Mm | Cable Mode: | Single Mode |
| High Light: | CPRI optical patch cord,CPRI fiber optic patch cables,Outdoor fiber optic patch cables |
||
Fiber Specification:
|
Fiber type
|
50/125,9/125
|
|
Core Diameter
|
50 + 2.5
|
|
Core Non-Circularity
|
<=5.0 %
|
|
Cladding Diameter
|
125.0+1.0um
|
|
Cladding Non-Circularity
|
<=1.0 %
|
|
Coating Diameter
|
245+7
|
|
Coating-Cladding Concentricity Error
|
<=12.0um
|
|
Coating Non-Circularity
|
<=6.0um
|
|
Connecton Specification
|
|
|
ITEM
|
PARAMETER
|
|
Connector type
|
DLC/UPC
|
|
Insertion Loss
|
<=0.3db
|
|
Return Loss
|
>=35db
|
|
Fiber mode
|
Multi-mode,50/125,single mode,9/125
|
|
Operating wavelength
|
850nm, 1300nm,1310,1550nm
|
|
Test wavelength
|
850nm, 1300nm
|
|
Repeatability
|
<=0.1
|
|
Interchangeability
|
<=0.2dB
|
|
Durability
|
<=0.2dB
|
|
Fiber Length
|
1m, 2m….. any length optional.
|
|
Length and tolerance
|
10cm
|
|
Operating Temperature
|
-40C ~ +85C
|
|
Storage Temperature
|
-40C ~ +85C
|
1. Factory Price
2. OEM
3. Fast delivery,low freight
4. Customize service
Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Usage
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Description:
A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST.. 3types ferrule: PC, UPC, APC…
FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.
SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
LC patch cord is a fiber optic cable used to attach one device to another for signal routing. LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the SC.
ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types
PC stands for Physical Contact.With the PC connector, the two fibers meet as they do with the flat connector, but the end faces are polished to be slightly curved or spherical. This eliminates the air gap and forces the fibers into contact
UPC stands for Ultra Physical Contact.The end faces are given an extended polishing for a better surface finish. These connectors are often used in digital, CATV, and telephony systems.
APC stands for Angled Physical Contact The end faces are still curved, but they’re angled at an industry-standard eight degrees. This maintains a tight connection. These connectors are preferred for CATV and analogue systems.
Look forward to your inquiry on Outdoor LC-LC Black Fiber cable 75m 60m,45m, 40m, 10m outdoor fiber patch cord.
