| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |
| Product Name: | Outdoor Waterproof LSZH Jacket PDLC-DLC FTTA Fiber Optic Patch Cord | Length: | 40m |
|---|---|---|---|
| Connector: | DLC/DLC | Insertion Loss: | <=0.3 DB |
| Wire Diameter: | 7.0 Mm | Cable Mode: | Multimode 50/125um |
| Highlight: | CPRI Fiber Cable,PDLC CPRI Fiber Cable,DLC CPRI Fiber Cable |
||

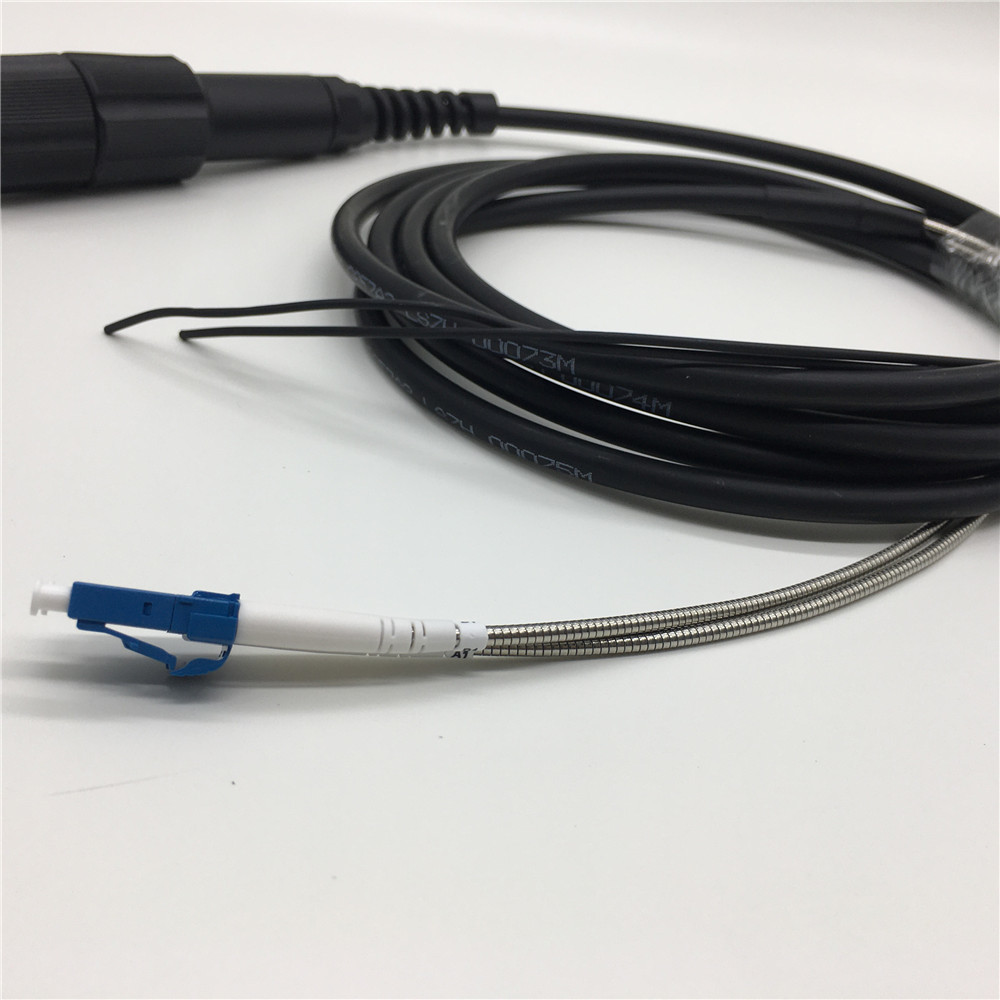

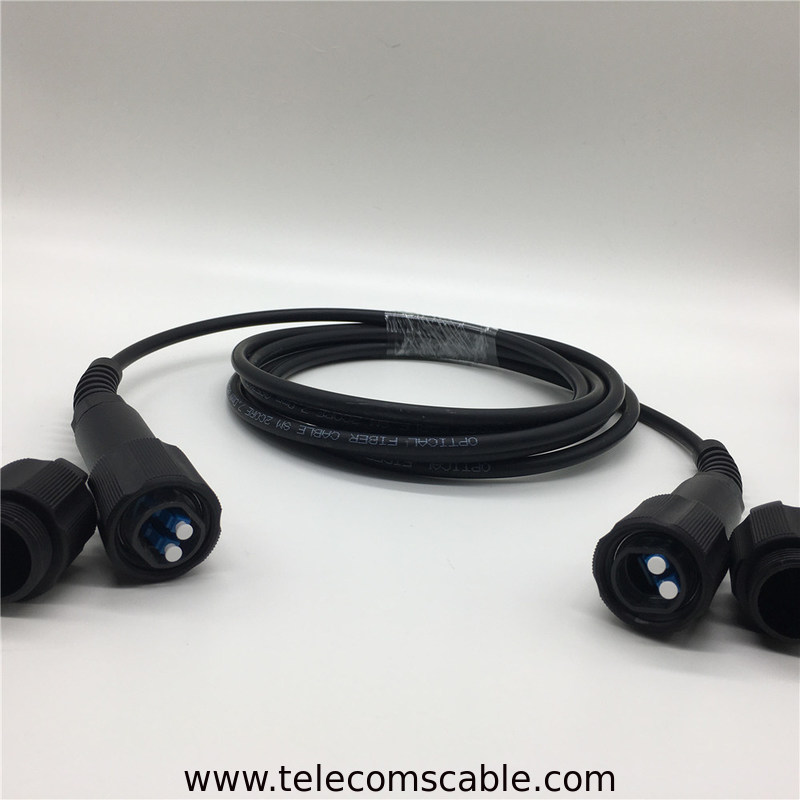

PDLC Waterproof fiber optic patch cord is standard size for Duplex LC Connectors, and he outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustpoof. This patch cords widely used in FTTA, Base station, and the outdoor waterpoof.
Features:
* Fiber count-------2
* Fiber characteristic -------OD: 245±10um
* Characteristic of tight buffered
* OD: 0.87±0.05mm
2.0 LSZH simplex optical fiber cable : Color : according to the contract
* White 0.9mm PVC
* OD: 0.87±0.06mm
* Thickness: 0.30±0.03mm
* Out jacket: LSZH
Application:
| 3G 4G base station | Aerospace & Defence | Equipment diagnosis |
| FO sensor | FTTA ,FTTP, FTTX | WIMAX, BBU, RRU, RRH, LTE |
|
Fiber type
|
50/125,9/125
|
|
Core Diameter
|
50 + 2.5
|
|
Core Non-Circularity
|
<=5.0 %
|
|
Cladding Diameter
|
125.0+1.0um
|
|
Cladding Non-Circularity
|
<=1.0 %
|
|
Coating Diameter
|
245+7
|
|
Coating-Cladding Concentricity Error
|
<=12.0um
|
|
Coating Non-Circularity
|
<=6.0um
|
|
Connecton Specification
|
|
|
ITEM
|
PARAMETER
|
|
Connector type
|
DLC/UPC
|
|
Insertion Loss
|
<=0.3db
|
|
Return Loss
|
>=35db
|
|
Fiber mode
|
Multi-mode,50/125,single mode,9/125
|
|
Operating wavelength
|
850nm, 1300nm,1310,1550nm
|
|
Test wavelength
|
850nm, 1300nm
|
|
Repeatability
|
<=0.1
|
|
Interchangeability
|
<=0.2dB
|
|
Durability
|
<=0.2dB
|
|
Fiber Length
|
1m, 2m….. any length optional.
|
|
Length and tolerance
|
10cm
|
|
Operating Temperature
|
-40C ~ +85C
|
|
Storage Temperature
|
-40C ~ +85C
|
Usage
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Look forward to your inquiry on Outdoor Waterproof LSZH Jacket PDLC-DLC FTTA Fiber Optic Patch Cord.
