| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Model Number: | 14130641 |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |

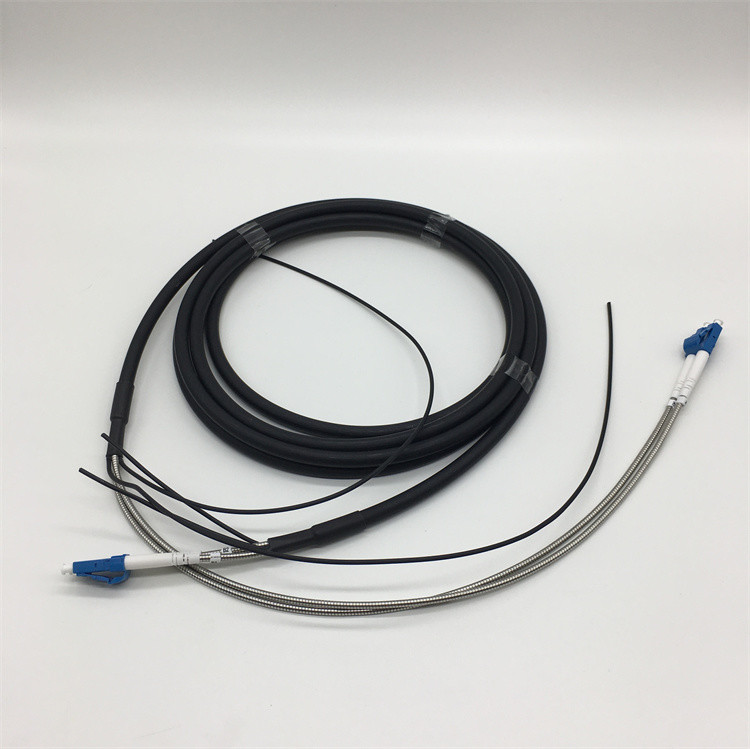

| Product Name: | FTTA Fiber Optic Outdoor Cable Duplex Waterproof LC-LC SM Patch Cord | Length: | 10m 14130641 FTTA Fiber Optic Outdoor Cable |
|---|---|---|---|
| Connector: | DLC/DLC | Insertion Loss: | <=0.3 DB |
| Wire Diameter: | 7.0 Mm | Cable Mode: | Multimode 50/125um |
| Highlight: | FTTA optical patch cord,Waterproof armoured fiber optic cable,CPRI Fiber cable |
||
14130641 Optical Cable Parts,DLC/UPC,DLC/UPC,single mode,10m,2 cores,0.03m/0.34m,GYFJH-2G.657A2,7.0mm,2mm,LSZH,Armored branch
Application:
Mainly used in wireless base station horizontal and vertical cabling
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics of jacket meet the requirements of relevant standards;
4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5. Meet various requirements of market and clients
|
Cable Dimension
mm |
Cable Weight
kg/km |
Tensile(N)
|
Crush
N/100mm |
Min. Bend Radius
mm |
Range of Temperature
|
||||
|
Long Term
|
Short Term
|
Long Term
|
Short Term
|
Dynamic
|
Static
|
||||
|
2
|
7.0
|
42.3
|
200
|
400
|
1100
|
2200
|
20D
|
10D
|
-30-+70
|
|
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
|
Fiber Specification:
|
|
|
Fiber type
|
50/125,9/125
|
|
Core Diameter
|
50 + 2.5
|
|
Core Non-Circularity
|
<=5.0 %
|
|
Cladding Diameter
|
125.0+1.0um
|
|
Cladding Non-Circularity
|
<=1.0 %
|
|
Coating Diameter
|
245+7
|
|
Coating-Cladding Concentricity Error
|
<=12.0um
|
|
Coating Non-Circularity
|
<=6.0um
|
|
Connecton Specification
|
|
|
ITEM
|
PARAMETER
|
|
Connector type
|
DLC/UPC
|
|
Insertion Loss
|
<=0.3db
|
|
Return Loss
|
>=35db
|
|
Fiber mode
|
Multi-mode,50/125,single mode,9/125
|
|
Operating wavelength
|
850nm, 1300nm,1310,1550nm
|
|
Test wavelength
|
850nm, 1300nm
|
|
Repeatability
|
<=0.1
|
|
Interchangeability
|
<=0.2dB
|
|
Durability
|
<=0.2dB
|
|
Fiber Length
|
1m, 2m….. any length optional.
|
|
Length and tolerance
|
10cm
|
|
Operating Temperature
|
-40C ~ +85C
|
|
Storage Temperature
|
-40C ~ +85C
|
1. Factory Price
2. OEM
3. Fast delivery,low freight
4. Customize service
Usage
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Look forward to your inquiry on FTTA Fiber Optic Outdoor Cable duplex waterproof LC-LC SM Patch Cord.
