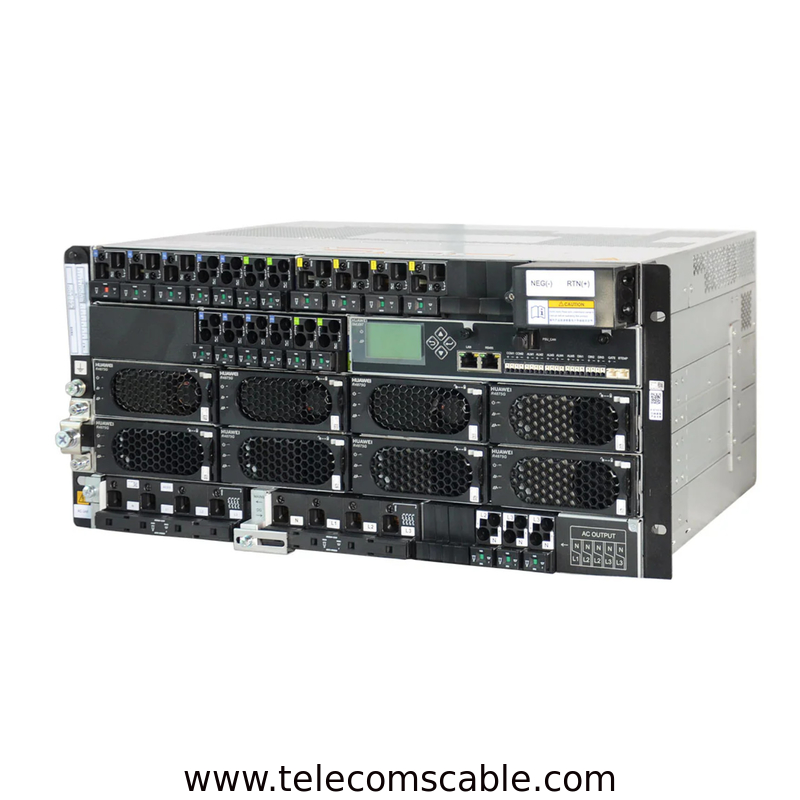

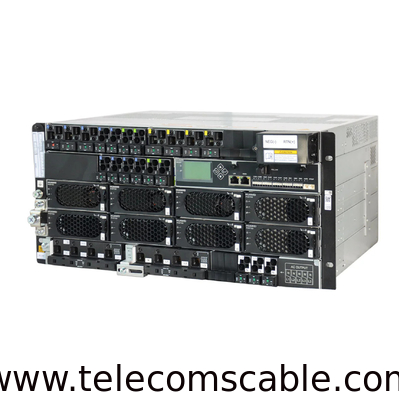

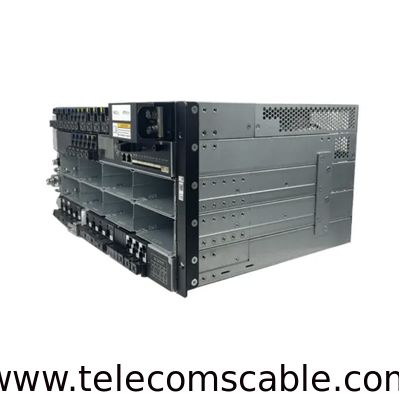

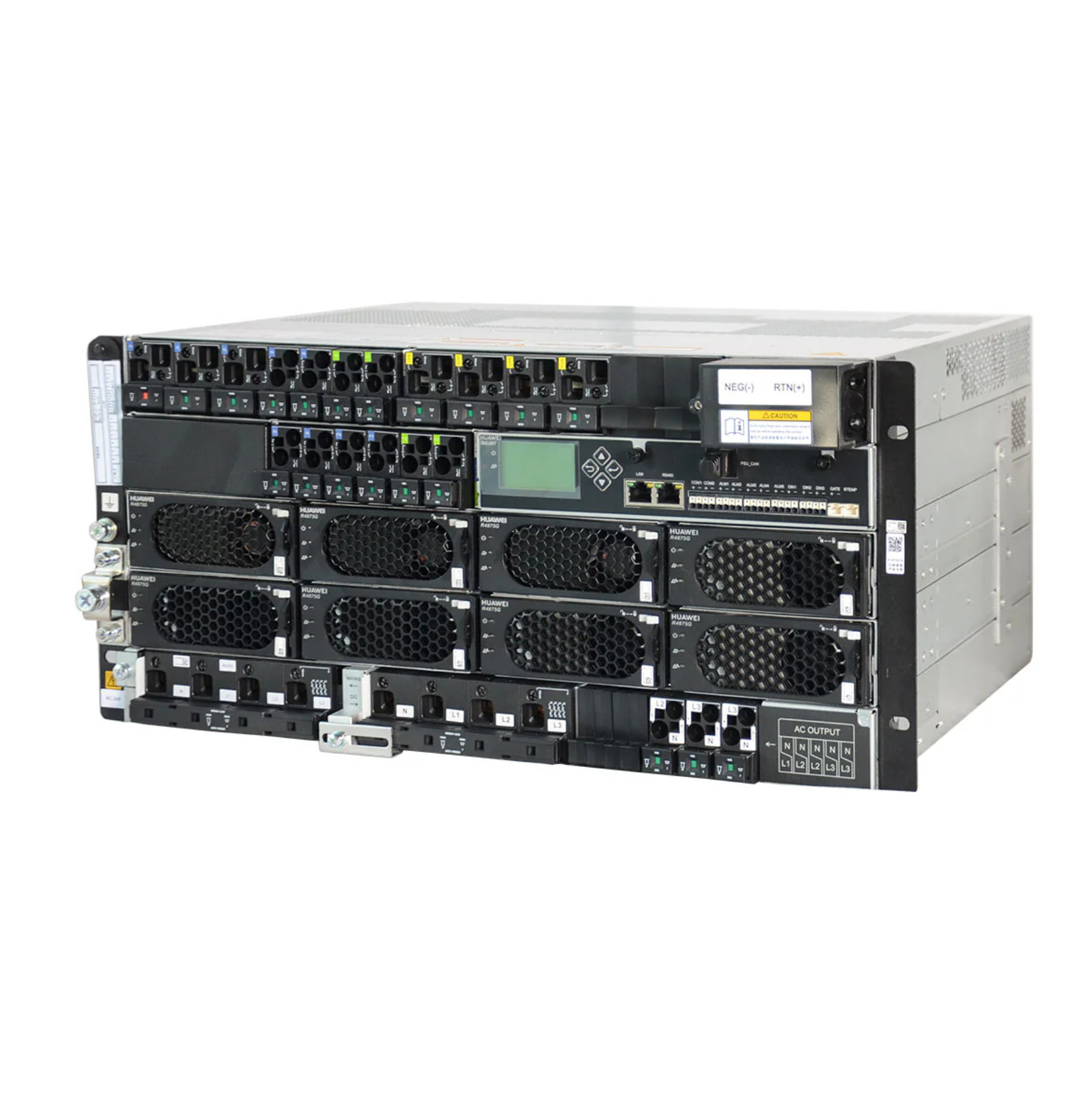

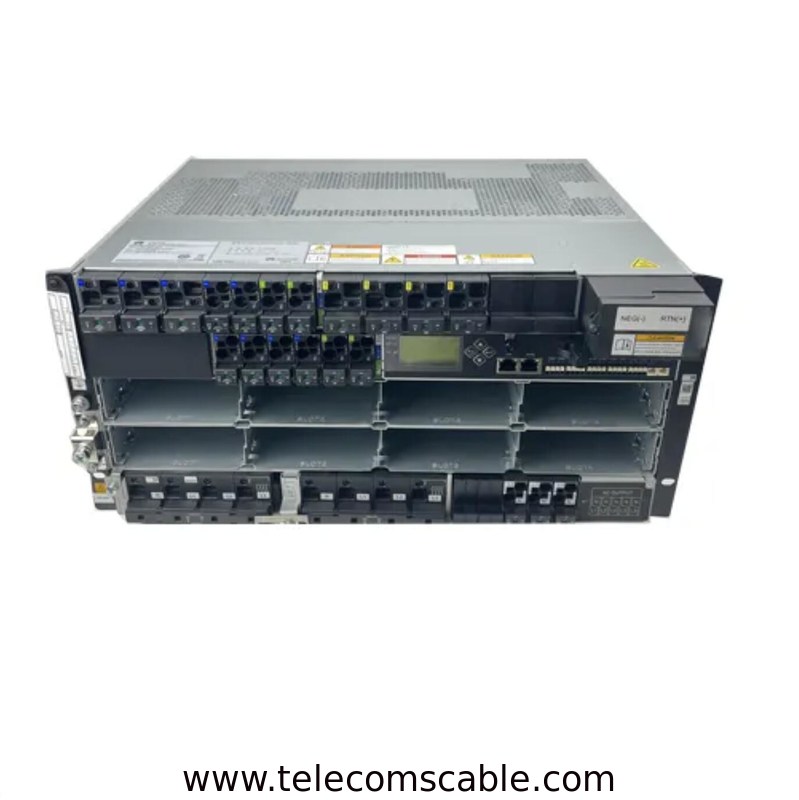

Etp48600-C5A8 is a box power supply system, which supplies power to the communication equipment of – 48V DC series, and the output current is 600A.
ETP48600-C5A8 600A AC/DC power converter including 8*75A R4875G rectifier module fully loaded, 1*SMU06T monitoring module.The module voltage input range: 85V AC~300V AC
Specification |
AC input system |
220/380V AC three-phase four-wire |
Max output current |
600A |
AC input |
100A/4P×2, manual switching, mechanical interlocking |
AC output |
16A/1P×3 |
Protection level |
IP20 |
Installation method |
19-inch rack installation |
Operating temperature |
–40°C to +65°C; when the operating temperature ranges from 55°C to 65°C, rectifier power is derated automatically |
Operating humidity |
5%–90% RH (non-condensing) |
Weight |
≤25kg (not including rectifier module) |
The ETP48600 embedded power system consists of two subsystems, namely, TIEN1 power system and ESS4815A lithium battery system.
- TIEN1 power system supports 240 V/415 V AC power input, and supplies +48 V DC power to equipment in a data center after converting AC power into DC power.
- ESS4815A lithium battery system serves as the power backup unit of the ETP48600. A single lithium battery system supports 7.5 kW power output. A maximum of four ESS4815A lithium battery systems can be cascaded.
Figure 1: Huawei ETP48600-C5A8 AC/DC Power Componet Introduction
Lead time:
We have a lot of stock, but we cannot guarantee that the product will still be in stock when you place your order. Therefore, please check with our sales team before placing your order. If the product is in stock, we can send it as soon as possible after receiving payment. If the quantity is large, our sales team will also advise you on the lead time.
Trade terms:
EXW / CIF / DDU / DDP.
We do not advise using FOB since it is handled by your forwarder and we do not know their charge standard.
Payment terms:
100% T/T, Paypal, Western Union.
Payment currency:
USD/CNY.
Transporting:
If the quantity is small, we usually send it by courier (DHL, FEDEX, TNT and so on) or by air. If the quantity is large, we advise shipping by sea or by truck (to Vietnam, Laos, Malaysia, Mongolia, Russia, etc.) or by train (European countries). This will take longer time but cheaper fees. Shenzhen Port is the nearest port.
