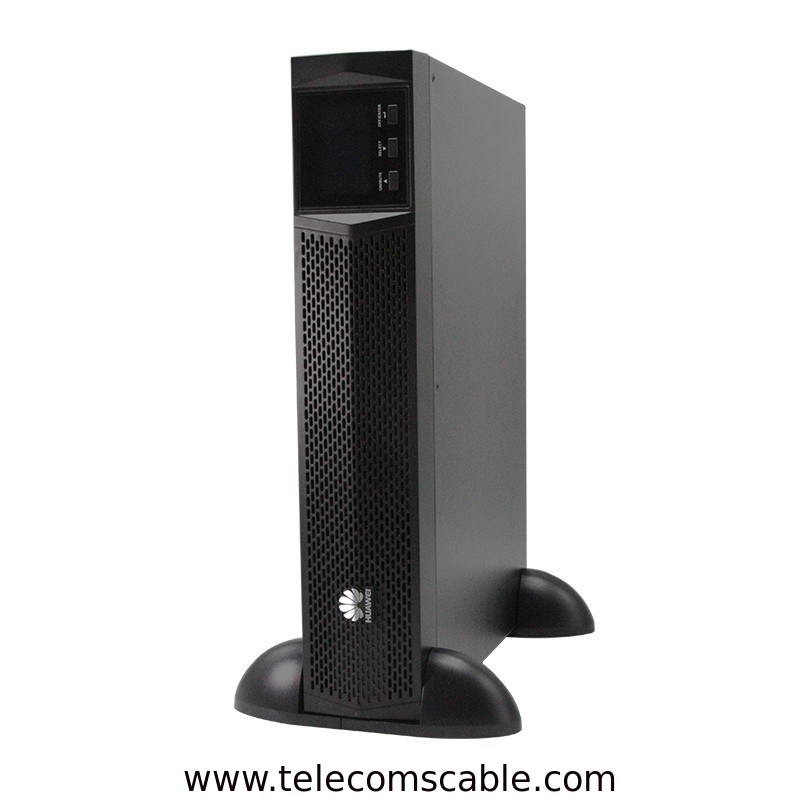

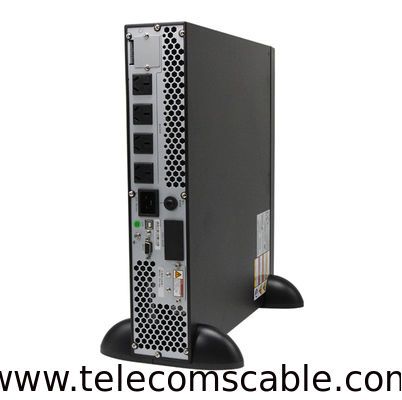

Huawei 2000-G-3KRTS UPS Power Supply Rack-Mounted 3KVA/2400W Enterprise Server Room Voltage Stabilization Backup
Huawei 2000-G-3KRTS is Rack-Mounted UPS Power Supply for 3KVA/2400W Enterprise Server Room Voltage Stabilization Backup.
The UPS2000-G is an Uninterruptible Power Supply(UPS) that safely delivers uninterrupted, high-quality AC power in the 1 kVA to 20 kVA capacity range.
The online, double conversion power system with rack and tower installation capabilities has a 95% high-efficiency rating, earning an Energy Star certification from the U.S.
The power supply’s reliable, simple, and highly efficient power protection is a great solution for a number of small-scale uses including small data centers, large branch offices, and sales networks.
| Model |
UPS2000-G-1kVA |
UPS2000-G-2kVA |
UPS2000-G-3kVA |
UPS2000-G-6kVA |
UPS2000-G-10kVA |
UPS2000-G-15kVA/20kVA |
| Rated Capacity |
1 kVA/0.8 kW |
2 kVA/1.6 kW |
3 kVA/2.4 kW |
6 kVA/5.4 kW |
10 kVA/9 kW |
15 kVA/13.5 kW |
20 kVA/18 kW |
| Input/Output |
1-in:1-out |
1-in:1-out |
1-in:1-out |
1-in:1-out |
1-in:1-out and 3-in:1-out |
1-in:1-out, 3-in:1-out, and 3-in:3-out |
| Rated Voltage |
200 V, 208 V, 220 V, 230 V, and 240 V AC |
220 V, 230 V, and 240 V AC |
| Battery Voltage |
Standard |
24 V DC |
48 V DC |
72 V DC |
240 V DC
|
|
| Long Backup |
36 V DC |
72 V DC |
96 V DC |
192 V to 240 V DC |
384 V to 480 V DC |
| Output Power Factor |
0.8 |
0.9 |
| Efficiency |
88% |
89% |
90% |
94% |
94.5% |
95% |
| Noise |
< 50 dB |
< 55 dB |
< 58 dB |
Dimensions
H x W x D |
Standard |
88 mm x 438 mm x 310 mm |
86 mm x 438 mm x 410 mm |
88 mm x 438 mm x 630 mm |
86 mm x 430 mm x 615 mm |
130 mm x 430 mm x 757 mm |
| Long Backup |
88 mm x 438 mm x 410 mm |
| Communications |
USB and RS232 (optional RS485, dry contact, and SNMP) |
USB (optional RS485, dry contact, and SNMP) |
Lead time:
We have a lot of stock, but we cannot guarantee that the product will still be in stock when you place your order. Therefore, please check with our sales team before placing your order. If the product is in stock, we can send it as soon as possible after receiving payment. If the quantity is large, our sales team will also advise you on the lead time.
Trade terms:
EXW / CIF / DDU / DDP.
We do not advise using FOB since it is handled by your forwarder and we do not know their charge standard.
Payment terms:
100% T/T, Paypal, Western Union.
Payment currency:
USD/CNY.
Transporting:
If the quantity is small, we usually send it by courier (DHL, FEDEX, TNT and so on) or by air. If the quantity is large, we advise shipping by sea or by truck (to Vietnam, Laos, Malaysia, Mongolia, Russia, etc.) or by train (European countries). This will take longer time but cheaper fees. Shenzhen Port is the nearest port.
FAQ
1. Why choose us?
A: We are a professional supplier of Huawei, Emerson and ZTE power supply modules, embedded power systems and rectifier modules with original packaging and technical service to provide competitive pricing and fast delivery. We have exported our products all over the world. Contact our sales team and they will give you some clients' PO for reference. We can also give you some chat history to show our service. We take pictures for you before we ship them out and provide full tracking information.
2. How about the quality?
A: What we offer is new and original Huawei/ZTE/Emerson power supply which is of high quality. If there are no new items in the market, we will let you know; if you can accept second-hand power supply, we will source it for you.
3. Could I buy 1pc sample first and small order?
A: Of course! We support sample orders and small orders especially for new customers under certain conditions. If the trial order is OK, you can buy more in the next order. We can offer very competitive prices if the quantity is big. We can pack products according to customer's requirements. If the quantity is big, we will pack them on pallets since most of our clients buy a lot so most of our products are shipped by pallets. If the quantity is small such as just rectifier, it is advised to be shipped by cartons to save freight. But don't worry! Their packages are Huawei/ZTE/Emerson original packages which are well protected by foam and cartons.
4. Could you help us for full range power supply?
A: Yes! If some items are not in stock, we will check with our friend company for you then collect them all and ship them together for you.
