Huawei ETP4830-A1 Embedded Communication Power Supply System 48v 30A

Basic Information
Place of Origin: China
Brand Name: Huawei
Certification: UL, RoHS
Model Number: ETP4830-A1
Minimum Order Quantity: 2 pcs
Packaging Details: Carton
Delivery Time: 5-8 working days.
Payment Terms: T/T
Supply Ability: 1000pcs
Product Name: Huawei ETP4830-A1 Power Supply INPUT: 100~240v: 50/60Hz
OUTPUT: 48V300A Application: Huawei ETP4830-A1 Power Module
High Light:

Huawei ETP4830-A1 power supply


Huawei ETP4830-A1


Huawei ETP4830-A1 Power Module

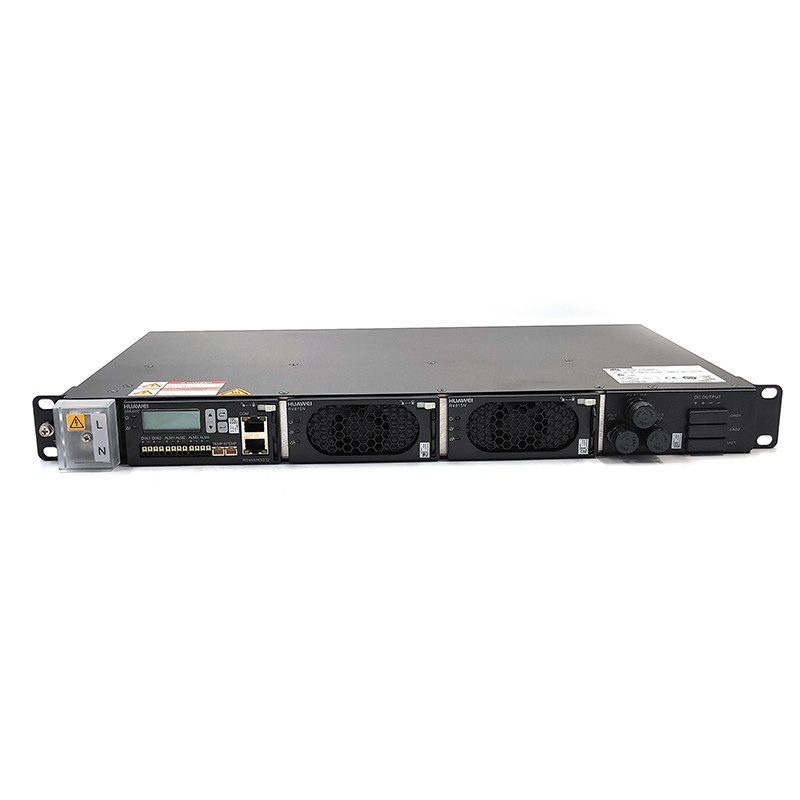

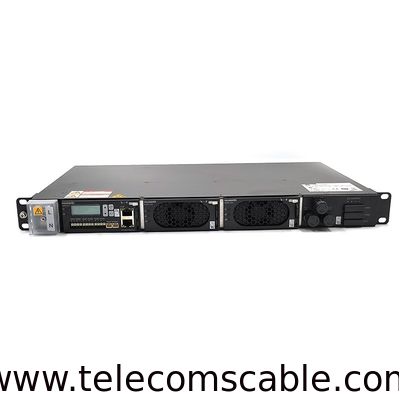

Huawei ETP4830-A1 Embedded Power Switch 19-Inch Plug-In Frame 48V30A Rectifier System

ETP4830-A1 is a box DC power supply system with a wide range of application scenarios. with excellent performance such as high power efficiency, intelligent battery management, remote management, wide range of AC input voltage, etc. The system can configure 2 pieces of 1U 15A high rectifier modules, and provides 30A rated current output. ETP4830-A1 can be embedded in 19-inch rack or cabinet. The system can adapt to wide range AC input, and has perfect battery management and remote monitoring functions.


Product Features
• 85 ~300Vac ultra-wide ac voltage input range.
• Working temperature range of rectifier module:-40℃~+75℃.

• power module supports hot plugging, installation and maintenance.

• standard installation structure design with strong universality.

• Compact power structure, saving space and installation cost.

• Complete module sleep function to further improve system efficiency.

Huawei ETP4830-A1 Embedded Communication Power Supply System 48v 30A 0Huawei ETP4830-A1 Embedded Communication Power Supply System 48v 30A 1Huawei ETP4830-A1 Embedded Communication Power Supply System 48v 30A 2Huawei ETP4830-A1 Embedded Communication Power Supply System 48v 30A 3

Huawei ETP4830-A1 Embedded Communication Power Supply System 48v 30A 4

Huawei ETP4830-A1 Embedded Communication Power Supply System 48v 30A 5
