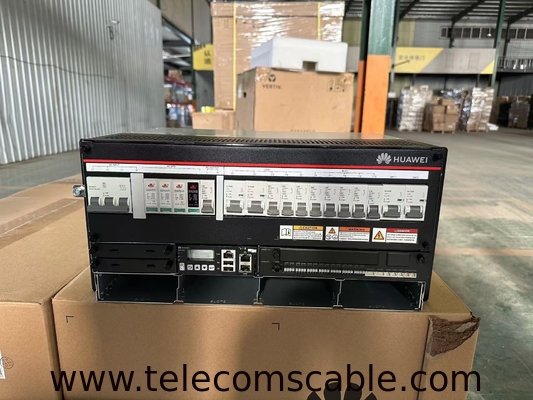

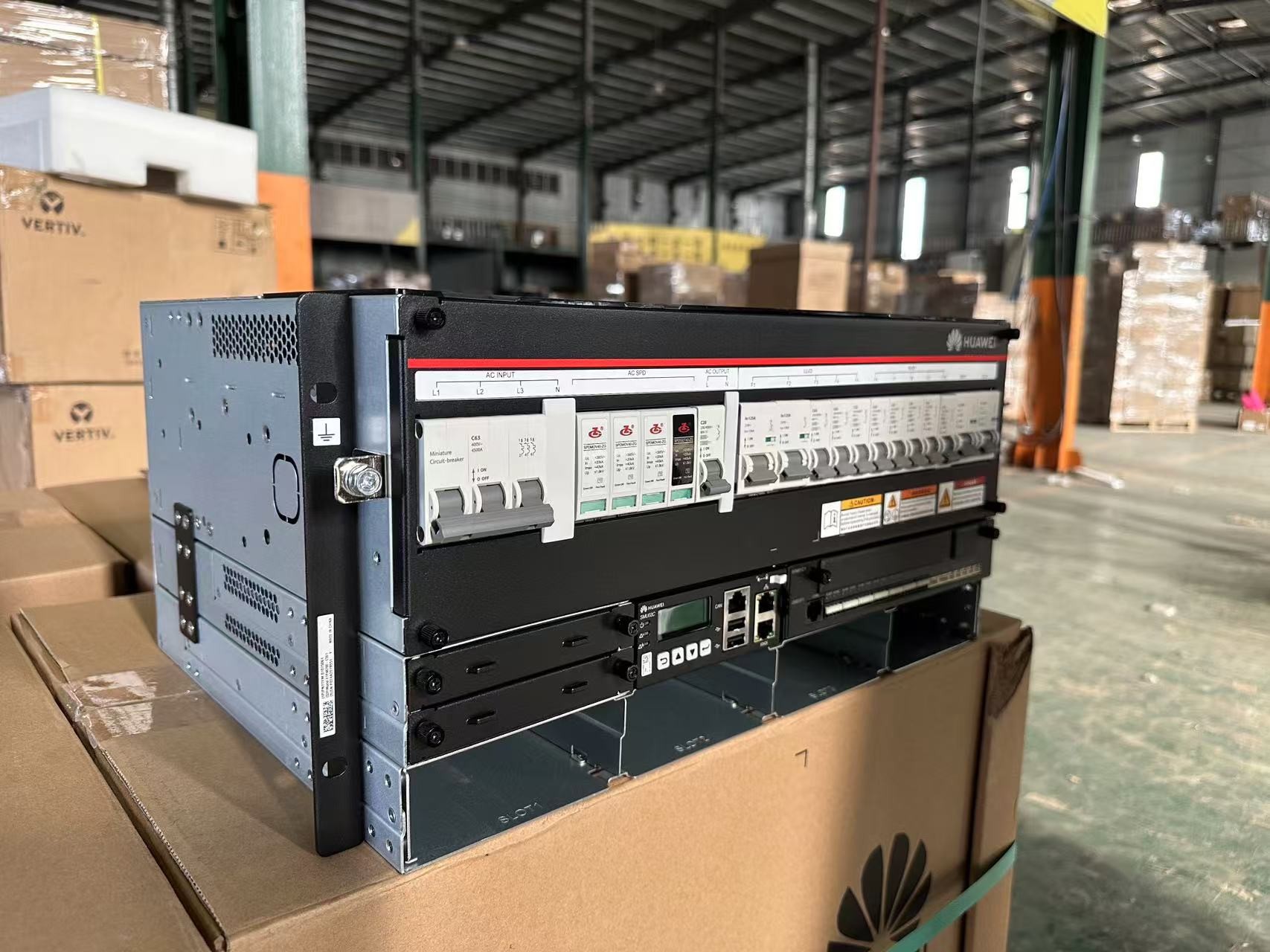

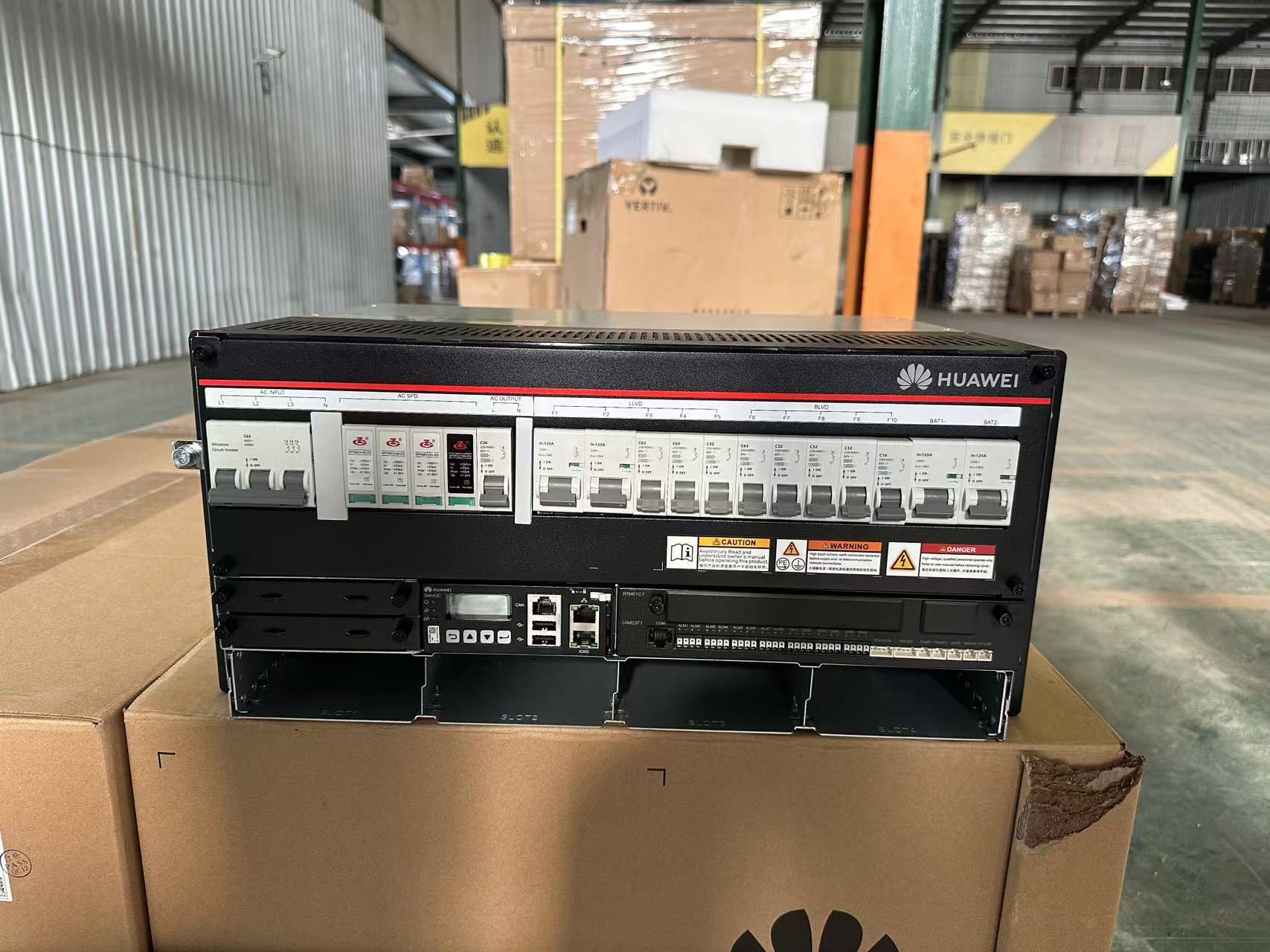

Huawei ETP48200-C5E1 Embedded Communication Switching Power Supply 48V200A Configuration R4850G Module
Huawei ETP48200-C5E1 is a Embedded Communication Switching Power Supply with 48V200A Configuration R4850G Module.
|
Subrack
|
3 U power distribution space
|
|
1 U SMU
|
|
1 U rectifier space
|
|
PDU
|
AC power distribution: AC input circuit breaker and AC output circuit breaker
|
|
DC power distribution: battery low voltage disconnection (BLVD) route, load low voltage disconnection (LLVD) route, and battery
route
|
|
Rectifier
|
A maximum of three R4875G5 or four R4850G2s or four R4850S1s
|
|
SMU
|
SMU02C
|
|
User interface module (UIM)
|
UIM03F1
|
|
Surge protective device (SPD)
|
AC surge protection: nominal lightning strike discharge current of 20 kA (8/20 us), maximum lightning strike discharge current of
40 kA (8/20 us)
|
|
DC surge protection: 10 kA (8/20 us) in differential mode, 20 kA (8/20 us) in common mode
|
|
Power distribution specifications
|
|
Item
|
Specifications
|
|
Input system
|
220/380 V AC three-phase four-wire, compatible with 220 V AC single-phase
|
|
AC power distribution
|
AC input: one 3-pole 63 A circuit breaker
|
|
AC output: one 1-pole 20 A circuit breaker
|
|
DC power distribution
|
BLVD route: one 1-pole 63 A circuit breaker, three 1-pole 32 A circuit breakers, and one 1-pole 16 A circuit breaker
|
|
LLVD route: two 1-pole 125 A circuit breakers, two 1-pole 63 A circuit breakers, and one 1-pole 32 A circuit breaker
|
|
Battery route
|
Two 1-pole 125 A circuit breakers
|
