Feeder Cable Grounding Kit Earthing Kit Simple To Install CE / RoHS Certification

Basic Information
Place of Origin: China
Brand Name: OEM/ODM
Certification: CE, RoHS
Minimum Order Quantity: 50 pcs
Packaging Details: PP bag+ paper carton
Delivery Time: 3-20 days depends on quantity
Payment Terms: Paypal,T/T, Western union
Supply Ability: 100000 pcs per week
Product Name: 1/2'' 7/8'' 1/4'' 15/8''feeder Grounding Kit Key Words: Coaxial Cable Grounding Kit
Warranty: 1 Year Application: Feeder Cable Installation
Cable: 1/2'' 7/8'' 1/4'' 15/8'' Feeder Cable Grounding Kit Length: 0.6~1m
High Light:

universal grounding kit


coaxial cable grounding kit


Feeder grounding it

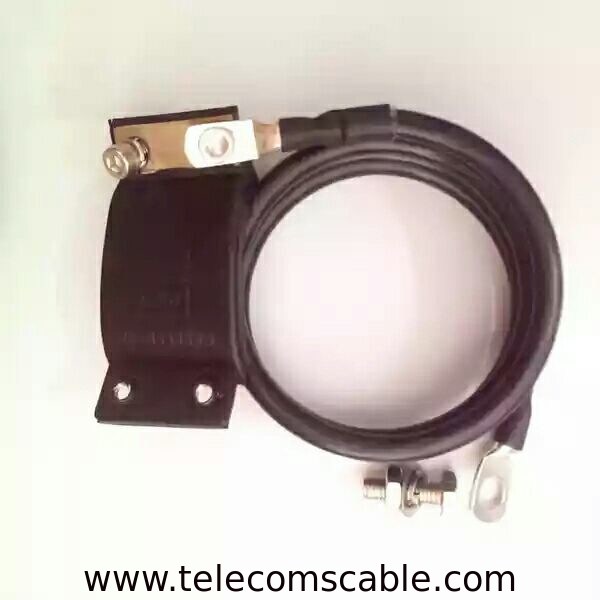

Feeder Cable Grounding Kit Earthing Kit Simple To Install CE / RoHS Certification

Feeder Cable Grounding Kit is suit for grounding binding of all kinds cable: 1/4",1/2",3/8",7/8",5/4",1-5/8", etc.  The grounding in the communication base station feeder grounding kit is suit for the feed system, grounding device respectively located in the central closest to the position of the antenna tower, tower cable bend at the bottom of the front, and on the device shielding, in central tower with high tower is needs to add with grounding device.After installing the feeder ground card, the antenna feed system and the communication equipment in the machine room can be protected from the damage of lightning.


The product from the thunder and lightning protection grounding bus bar can defense is as high as 125 kva, its high quality copper structure can be moisture and moisture absorption, components can be additionally equipped with tape at the same time, the installation requires no additional tools, on the basis of convenient shorten the installation time.


Component part:

No Name Type Qty Note
1 Grounding kit 1/4" 1 customer's requiremet
2 Grounding Cable 16² copper cable 1 3M
3 Bolt M8 X 25 1 Stainless steel
4 Nut M8 1 Stainless steel
5 Washer ø8 1 Stainless steel
6 Spring Washer ø8 1 Stainless steel


Grounding clamp's performance index:


component electrical property mechanical property instruction

clamp: stainless steel

connecting piece:T2 pure copper: standard configuration0.6, 0.8, 1m

Bolt and nut: stainless steel

layering: stainless steel


voltage:50Hz 30KV


stainless steel: smooth

rubber: clean, no damage and bubbles, density consistent

grounding line: no crack and aging

screw, bolt and nut: clean and no crack

layering: stainless steel

quick and easy to install and appearance neat



Mechanical capacity:Stainless steel material:  smooth surface, no burr and crack, there is no obvious inclusion and sink mark

  1. rubber material: clean surface, no injury and bubble
  2. consistent density grounding wire: uniform insulating barrier, no crack and surface aging
  3. Bolt & nut: clean surface, no crack and rust staining
  4. simple to install

Q1. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment (Conventional products).


Q2. What is your terms of delivery?


Q3. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.


Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q5. What is your sample policy?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

If you have another question, pls feel free to contact us.
