| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |

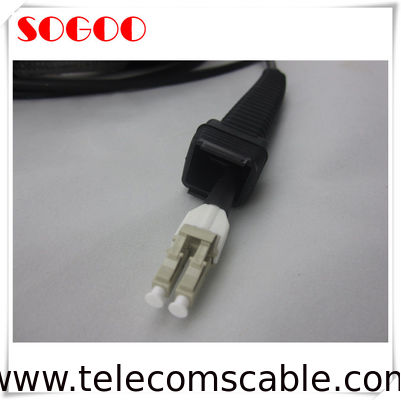

| Product Name: | FTTA Cable , Armored CPRI Fiber Cable | Key Words: | Armored CPRI Fiber Cable |
|---|---|---|---|
| Connector: | LC/UPC | Cable: | 50m, Multimode 50/125 |
| Wire Diameter: | 5.0mm Armored Or Customerize | Length: | Customized |
| High Light: | NSN Boot optical patch cord,NSN Boot armoured fiber optic cable,NSN Boot for NOKIA |
||
NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WIMAX/GSM) tailored products that can be meet the FTTA(fiber to the antenna) program requirements for outdoor environment conditions and adverse weather conditions.They are well suited for Industrial and Aerospace and Defense applications.
Features:
1.Standard DLC connector,
2. Available Single mode and Multimode
3. IP65 protection, salt-mist proof, humidity proof,
4.Aluminum housing, compact design
5.Broad temperature range and wide range of indoor and outdoor Patch cables
6.Easy Operation, reliable and cost-effective Installation
Specifications:
| Item | SM | MM |
| Connector-A:NSN Connector-B:LC,SC,FC,ST | ||
| Fiber type | G657A1/G657A2 | |
| Fiber count | 2Core | |
| Color | UPC(blue),APC(Green) | MM(Beige),OM3(Aqua) |
| Polish | UPC,APC | UPC |
| Insertion Loss( IEC6130) | ≤0.2dB | ≤0.2dB |
| Return Loss | UPC≥50dB;APC≥60dB | ≥35dB |
| Durability | ≥500 Matings ≤0.2dB | |
| Test wavelength | 1310/1550nm | 850/1310nm |
| Attenuation(Maximum dB) |
SM:1310nm≤0.35dB/KM;1550nm≤0.25dB/KM MM:850nm≤3.0dB/KM ;1310nm≤1.0dB/KM |
|
| Operating Temperature | -40+80°C | |
Look forward to your inquiry on FTTA cable , armored CPRI Fiber Cable , 2 fibers , LC/UPC, 50m, multimode 50/125.
