| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE& ISO |
| Model Number: | OEM |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 1000pcs per day |
| Product Name: | Hengxin AISG RET Control Cable | Pin Range: | 6/8 Pins |
|---|---|---|---|
| Connector-1: | 5 Pin RET AISG 2.0 Male | Length: | 0.5M 1M 5M 10M |
| Connetor-2: | RET AISG 2.0 Female | Application: | Antenna System Integrator |
| Highlight: | aisg ret control cable,Hengxin AISG RET Cable,AISG male to female RET Cable |
||

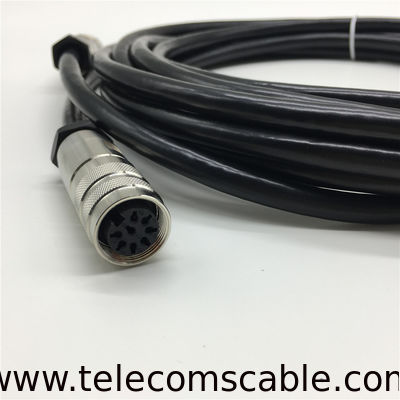

This AISG cable is used to feed data and power from the controller to the Remote Electrical Tilt (RET) system components.
With a rugged metal housing and environmental protection rating of IP67 when mated, this robust DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
High quality AISG equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Features:
Applications:
| Proudct Description | ||||
| Connectors | ||||
| Connector 1,2 | AISG type male | AISG type Female | ||
| Inner Conductor | Brass/Gold Plating | Brass/Gold Plating | ||
| Body&Outer Conductor | Brass/Nickel Plating | Brass/Nickel Plating | ||
| Insulator | POM | POM | ||
| Gasket | Silicon Rubber | Silicon Rubber | ||
| Nut | Brass/Nickel Plating | Brass/Nickel Plating | ||
| Environmental Specifications | ||||
| Rate current | 4A | |||
| Single Bend radius | 60 mm Min | |||
| Multiple Bend radius | 120 mm Min | |||
| Temperature Range | -40°C to +80°C | |||
| Protection Class | IP68 | |||
| RoHS | Compliant | |||
| Application scene | Indoor/Outdoor | |||
Welcome to your inquiry about Hengxin Antenna System Integrator AISG RET Control Cable 6 / 8 pins .
