| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Model Number: | ERICSSON RPM2533577 |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | 10pcs in 1 Anti-static package, standard packing |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 2000 pcs per week |
| Product Name: | 2 Core FullAXS To LC Fiber Optic Armored Patch Cables IP 67 Waterproof Jumpers | Key Words: | FullAXS Fiber Optic Armored Patch Cables |
|---|---|---|---|
| Connector: | LC FullAXS | Length Of Armord Cable: | 1~100m |
| Mode: | SM / MM | Fiber Cores: | 2 Cores |
| Application: | Outdoor | Waterproof: | IP67 |
| High Light: | FullAXS To LC fiber cable,FullAXS To LC fiber optic cable,FullAXS To LC fiber Jumpers |
||

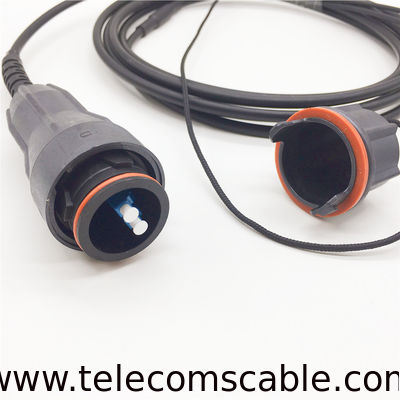

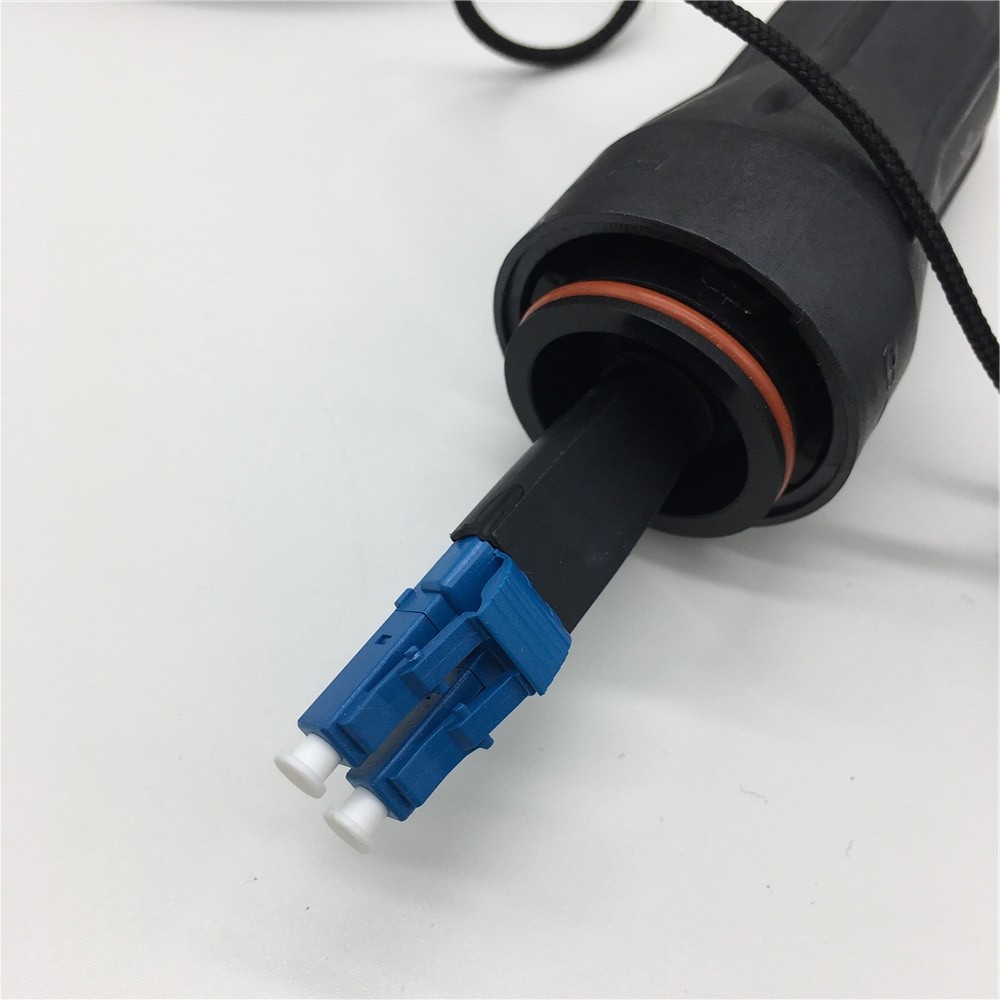

2 Core FullAXS to LC Fiber Optic Armored Patch Cables IP 67 Waterproof Jumpers commonly used in some Ericsson Remote Radio Heads, the shell encloses duplex LC connectors. Plugs directly into SFP at panel of RRH. FullAXS is a sealing system for optical and electrical interfaces which mates directly into the SFP modules through...
Features:
Cable Specification:
FTTA patch cord is used as: 3G 4G base station, Aerospace & Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX,WIMAX,
BBU, RRU, RRH, LTE.Multimode DLC/PC DLC/PC Outdoor Optical Cable Assembly GYFJH 2A1a(LSZH) 7.0mm 2 Cores with protected branch
Outdoor waterproof fiber optic connector J599 applies tri-start thread and five-key positioning, it's anti-vibration and wrongly plugging can be avoided. Made with stainless steel 316L, it's featured as high-density, anti-electromagnetic shielding, loss insertion loss, high reliability, and easy to install with removable parts. And it's also water/ dust proof, and anti-corrosion.
It's mainly used in ocean communication, airborne communication, military, and very harsh environments like extremely acid, hydrochloric and humid. J599-MPO 12 & 24 cores for choice .
Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
Designed to meet 150 N cable retention
Designed to meet IP67
LC interface
Single- and Multimode
Adapter footprint : 36mm x 36mm
Bayonet style locking
Duplex LC interconnect MM or SM
No tools required
Operating temperature : -40ºC to +70ºC
Mating durability min : 100 cycles.
Cable Parameters
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 5.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
Specifications:
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP65 |
| Tensile Data | Tensile between junction and fiber cable≥100N |
| Authentication | Meet with RoHS |
Look forward to your inquiry on 2 Core FullAXS to LC Fiber Optic Armored Patch Cables IP 67 Waterproof Jumpers .
