| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE RoHS |
| Model Number: | ZA-RVVP K29-2017-0825-A1 |
| Minimum Order Quantity: | 1000m |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 10000 pcs per day |
| Product Name: | Panyu 2x6mm2 ZA-RVVP 300V/300V K29-2017-0825-A1 ROHS IEC60332-1 | Voltage: | 300V/300V |
|---|---|---|---|
| Application: | For Telecommunications | Length: | 1000m Per Roll |
| Standard: | ROHS IEC60332-1 | ||
| High Light: | Panyu 2 X 6mm2 power cable,2 X 6mm2 Shield Cable,Shield Cable Za-Rvvp |
||

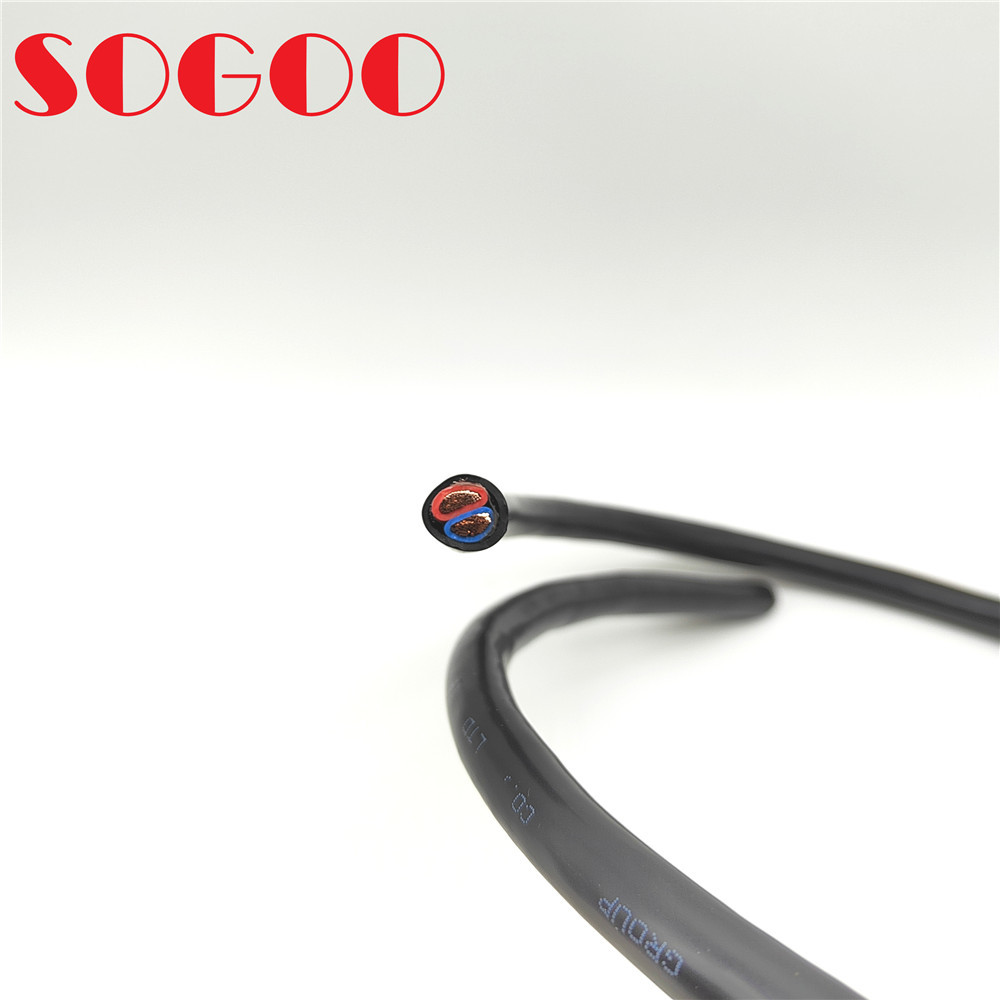

Product description of Panyu 2x6mm2 ZA-RVVP shielding outdoor power cable
Electric characteristic of Panyu 2x6mm2 ZA-RVVP shielding outdoor power cable
RoHS
ZA-RVVP 2-cores shielding outdoor power cable key technical parameters
Related RRU Power Cable- 2 cores, 3 cores, 4mm2, 6mm2, 10mm2, 16mm2
Insulation color |
Nominal cross-sectional area | Conductor construction | Conductor diameter (Ref.) | Max. conductor DC resistance at 20℃ | Nominal insulation thickness |
Min. insulation thickness | Min.insulation resistance at 70℃ | Insulation diameter (Ref.) | Nominal oversheath thickness | Min. oversheath thickness | Overall diameter |
| mm2 | pcs/mm(±0.01) | mm | Ω/km | mm | mm | MΩ.km | mm | mm | mm | mm | |
| Blue, black | 2x1 | 32/0.20 | 1.3 | 19.5 | 0.6 | 0.44 | 0.011 | 2.5±0.3 | 0.6 | 0.44 | 7.4±0.4 |
| Blue, black | 2x2.5 | 49/0.25 | 2.0 | 7.98 | 0.8 | 0.62 | 0.009 | 3.8±0.3 | 1.0 | 0.75 | 10.4±0.4 |
| Blue, red | 2x4 | 56/0.30 | 2.6 | 4.95 | 0.8 | 0.62 | 0.007 | 4.3±0.3 | 1.2 | 0.92 | 12.0±0.5 |
| Blue, black | 2x4 | 56/0.30 | 2.6 | 4.95 | 0.8 | 0.62 | 0.007 | 4.3±0.3 | 1.2 | 0.92 | 12.0±0.5 |
| Light blue, gray | 2x4 | 56/0.30 | 2.6 | 4.95 | 0.8 | 0.62 | 0.007 | 4.3±0.3 | 1.2 | 0.92 | 12.0±0.5 |
| Blue, black | 2x6 | 84/0.30 | 3.2 | 3.30 | 0.8 | 0.62 | / | 5.2±0.3 | 1.2 | 0.92 | 14.5±0.5 |
| Blue, red | 2x6 | 84/0.30 | 3.2 | 3.30 | 0.8 | 0.62 | / | 5.2±0.3 | 1.2 | 0.92 | 14.5±0.5 |
| Light blue, gray | 2x6 | 84/0.30 | 3.2 | 3.30 | 0.8 | 0.62 | / | 5.2±0.3 | 1.2 | 0.92 | 14.5±0.5 |
| Blue, black | 2x10 | 77/0.40 | 4.4 | 1.91 | 1.0 | 0.80 | / | 6.7±0.3 | 1.2 | 0.92 | 17.0±0.5 |
| Blue, red | 2x10 | 77/0.40 | 4.4 | 1.91 | 1.0 | 0.80 | / | 6.7±0.3 | 1.2 | 0.92 | 17.0±0.5 |
| Light blue, gray | 2x10 | 77/0.40 | 4.4 | 1.91 | 1.0 | 0.80 | / | 6.7±0.3 | 1.2 | 0.92 | 17.0±0.5 |
| Blue, black | 2x16 | 119/0.40 | 5.4 | 1.21 | 1.0 | 0.80 | / | 7.7±0.5 | 1.4 | 1.09 | 19.0±0.5 |
| Blue, red | 2x16 | 119/0.40 | 5.4 | 1.21 | 1.0 | 0.80 | / | 7.7±0.5 | 1.4 | 1.09 | 19.0±0.5 |
| Light blue, gray | 2x16 | 119/0.40 | 5.4 | 1.21 | 1.0 | 0.80 | / | 7.7±0.5 | 1.4 | 1.09 | 19.0±0.5 |
| Blue,brown, yellow/green |
3x1 | 32/0.20 | 1.3 | 19.5 | 0.6 | 0.44 | 0.011 | 2.5±0.3 | 0.8 | 0.58 | 8.5±1.0 |
| Red,white,green | 3x1.5 | 30/0.25 | 1.6 | 13.3 | 0.7 | 0.53 | 0.009 | 3.0±0.3 | 0.8 | 0.58 | 9.0±1.0 |
| Blue,brown, yellow/green |
3x1.5 | 30/0.25 | 1.6 | 13.3 | 0.7 | 0.53 | 0.009 | 3.0±0.3 | 0.8 | 0.58 | 9.0±1.0 |
| Red,white,green | 3x2.5 | 49/0.25 | 2.0 | 7.98 | 0.8 | 0.62 | 0.009 | 3.8±0.3 | 1.0 | 0.75 | 11.3±0.5 |
| Blue,brown, gray,black |
4x1.5 | 30/0.25 | 1.6 | 13.3 | 0.7 | 0.53 | 0.009 | 3.0±0.3 | 1.0 | 0.75 | 10.3±0.4 |
| Blue, blue,red,red | 4x2.5 | 49/0.25 | 2.0 | 7.98 | 0.8 | 0.62 | 0.009 | 3.8±0.3 | 1.1 | 0.84 | 12.3±0.5 |
UL2586 RRU power cable picture.
UL2464 RRU power cable Picture:
Q&A
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.
Q2: What is delivery time if we place an order?
A2: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q3: Do you accept OEM/ODM?
A3: We support OEM/ODM service: Pls don’t hesitate to tell us your ideas.
Payment service
T/T deposit before production and balance before shipment.
Western Union ESCROW PayPal T/T L/C
Shipping
If the quantity of order is not very big ,we could send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS
If order is big,we will use air shipment or sea shipment.
Packaging & Delivery
Packaging Details:by customer's request
Delivery time:5-10 days
Applications
1. CATV, Metro, Test equipment, Active termination
2. Local area networks(LANs), Premise installations
3. Telecommunication networks, Data processing networks
4. Wide-Area Networks(WANs)
Availability
1. Simplex/Duplex patch-cord available
2. Pigtail available
3. Fan-out available
4. Various boot(cable) sizes available
Our Services
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
Look forward to your inquiry to our Panyu 2x6mm2 ZA-RVVP 300V/300V K29-2017-0825-A1 ROHS IEC60332-1.
