| Place of Origin: | China |
|---|---|
| Brand Name: | OEM/ODM |
| Certification: | CE& ISO |
| Model Number: | OEM |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | PP bag+ paper carton |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | Paypal,T/T, Western union |
| Supply Ability: | 1000pcs per day |

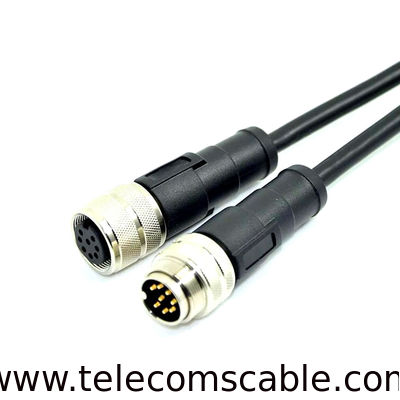

| Product Name: | AISG Connector With Cable | Pin Range: | 2 4 6 8 9pins |
|---|---|---|---|
| Connector: | Female To Male | Length: | 0.5m~100m |
| Plug: | Straight | Application: | Telecommunication |
| High Light: | aisg ret control cable,Aisg Male to Female,AISG RET Cable |
||
• Metal locking ring; screw locking according to DIN EN 60130-9 / IEC 60130-9
• Number of contacts: 2 – 8, 12 and 14 contacts
• Internal strain relief
• Good shielding effectiveness when mated and locked
• Male and female cable connectors
• Straight or right angled
• Solder connection: 2 – 8, 12 and 14 contacts
• Crimp connection: 2 – 8 contacts
• With cable sleeve for max. cable diameter 6 mm, or
With cable glands for cable diameter 4 – 6 mm or 6 – 8 mm
• Male and female sockets
• Panel mount types for front or rear panel mounting
• Pcb mount types, straight or right angled
• With dip solder contacts of various contact lengths
• Solder connection: 2 – 8, 12 and 14 contacts
• Crimp connection: 2 – 8 contacts
• Coloured back shells optional
• UL registered under file number E 63 093 UL
| Technology parameter | ||||||||||||
| NO.of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 12 | 14 | 16 | 19 | 24 |
| Rated current/voltage | 7A-200V | 7A-200V | 7A-200V | 6A-200V | 5A-200V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V |
| Operation limit voltage(AC.V.rms) | 250 | 250 | 250 | 250 | 250 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Withstanding voltage(AC.V.rms) I minute | 1500 | 1500 | 1500 | 1500 | 1500 | 800 | 500 | 500 | 500 | 500 | 500 | 500 |
| Insulation resistance(MΩ MIN.) at DC 500V | 1500 | 1500 | 1500 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Contact resistance (MΩ MAX.) AT DC 1A | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 10 | 10 | 10 | 10 | 12 |
| Solder cup mouth aperture | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.8 | 0.8 | 0.8 | 0.6 |
| Solder inter diameter | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1 | 1 | 1 | 1 | 0.5 |
Packaging Details: Female To Male 2 4 6 8 9pins AISG Connector With Cable will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
Delivery Detail: about 7 workdays after payments.
Sogoo Cables
· We are the connectors and cables manufacturer, so we can make high quality but low price connectors and cables
· We can customize the cables according to your requirements, you can tell me what you want, and we can do it
· We have good price for big quantity connectors and cables, f you are interested in them, please contact us, thank you!
OEM service
Q: Can you help with the design?
New design, Custom made, are available, our engineers with help with all technics.
Hot Sell Cable
Q: What's the payment term?
Accept T/T, Western Union, Paypal & Cash.
Q: May i have new sample made with my design for confirmation?
Yes. We can do the high quality sample same as your design for confirmation.
Q: What about the lead time?
It depends on the products. Normally 10 to 15 workdays after confirmation of design file and remittance.
Q: What shipping method can i choose?
DHL, UPS, TNT, FEDEX, BY sea, etc.
Q: Do you have MOQ?
Yes. The MOQ depends on the specifications of the type you want.
Welcome to your inquiry about Female To Male 2 4 6 8 9pins AISG Connector With Cable .
