Huawei R48100G Rectifier Module AC To DC 48V100A Efficient High-Power

Basic Information
Place of Origin: China
Brand Name: Huawei
Certification: UL, RoHS
Model Number: R48100G
Minimum Order Quantity: 2 pcs
Price: sales@sogootelecom.com
Packaging Details: Carton
Delivery Time: 5-8 working days.
Payment Terms: T/T
Supply Ability: 1000pcs
Product Name: Huawei R48100G Rectifier Module Output: 48V100A
Model No.: R48100G Application: Rectifier Module AC To DC
High Light:

Huawei R48100G embedded Power Supply

,

Huawei R48100G rectifier module

,

48V100A rectifier module

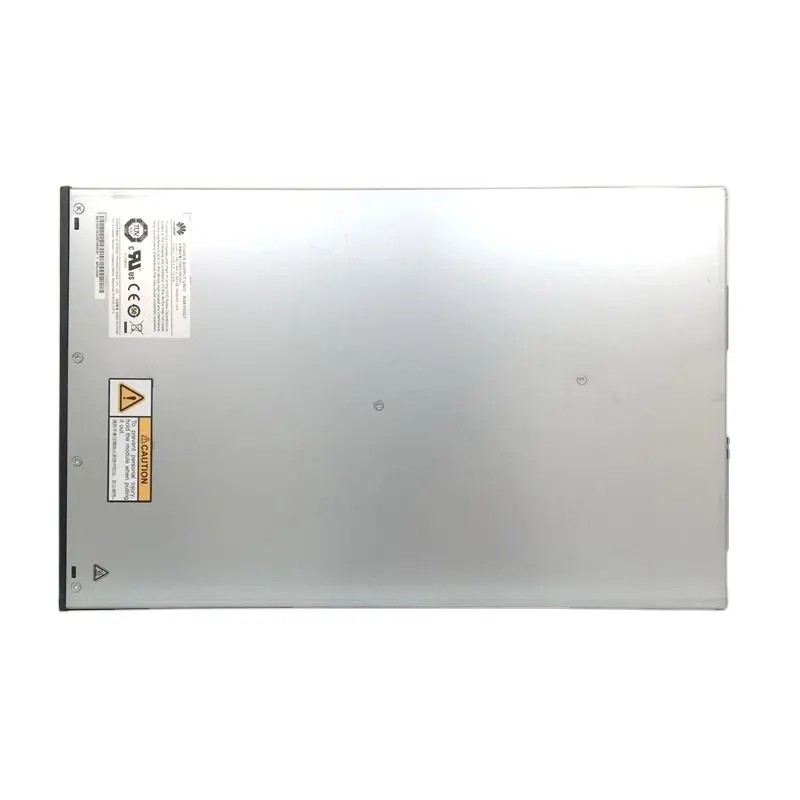

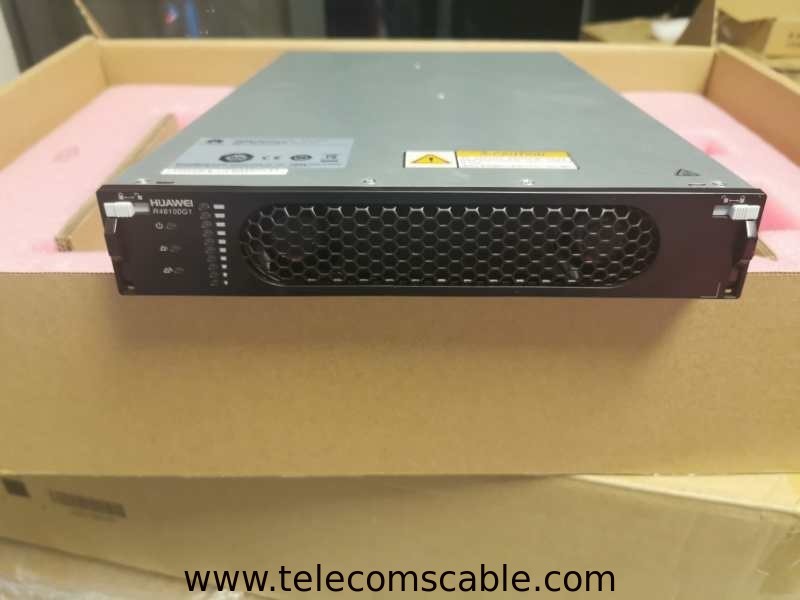

Huawei R48100G Rectifier Module AC To DC 48V100A Efficient High-Power

The R48100G1 is a digital control 3-phase rectifier with the maximum output power being 6000W. It converts 260~530VAC input voltage to 53.5VDC output voltage. The output voltage can be adjusted by the host. It performs comprehensive protection functions, supports soft start, and produces low noise. With the latest power monitoring technology, states of the rectifier and load are monitored in real time. Multiple rectifiers can be paralleled.



Model Number
R48100G1
Place of Origin
Guangdong, China
Brand Name
HUAWEI
Use
Communication Power System
Product Condition
New Original Packaging
Input Voltage
260 to 530 V AC
Line Frequency
45 to 66 Hz
Max Input Current
≤13A(Vin: 308VAC,100% load)
Power Factor
0.99
THD (Total Harmonic Distortion)
<5%
Output Voltage
-42 to -58 V DC
Output Power
6000W(304~530VAC)
Efficiency
96%
Certification
TUV/CE/CB/UL, Meet RoHS Requirements

Huawei R48100G Rectifier Module AC To DC 48V100A Efficient High-Power 0Huawei R48100G Rectifier Module AC To DC 48V100A Efficient High-Power 1Huawei R48100G Rectifier Module AC To DC 48V100A Efficient High-Power 2Huawei R48100G Rectifier Module AC To DC 48V100A Efficient High-Power 3Huawei R48100G Rectifier Module AC To DC 48V100A Efficient High-Power 4



Lead time:
We have a lot of stock, but we cannot guarantee that the product will still be in stock when you place your order. Therefore, please check with our sales team before placing your order. If the product is in stock, we can send it as soon as possible after receiving payment. If the quantity is large, our sales team will also advise you on the lead time.

Trade terms:
EXW / CIF / DDU / DDP.
We do not advise using FOB since it is handled by your forwarder and we do not know their charge standard.

Payment terms:
100% T/T, Paypal, Western Union.

Payment currency:
USD/CNY.

Transporting:
If the quantity is small, we usually send it by courier (DHL, FEDEX, TNT and so on) or by air. If the quantity is large, we advise shipping by sea or by truck (to Vietnam, Laos, Malaysia, Mongolia, Russia, etc.) or by train (European countries). This will take longer time but cheaper fees. Shenzhen Port is the nearest port.
