| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | ZTE/Panyu |
| Certification: | CE& RoHS |
| Model Number: | 2x4 mm² |
| Minimum Order Quantity: | 1000m |
| Price: | Negotiable |
| Packaging Details: | Wooden drum |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 1000000m per week |
| Product Name: | 2x4mm² RRU Power Cable For ZTE Tower Installation 300/300V CE RoHS | Key Words: | 2x4mm² CE Power Cable |
|---|---|---|---|
| Square: | 4mm² | Application: | Tower RRU |
| Package: | Wooden Drum | Packing: | 1000m |
| High Light: | 2x4mm² RRU Power Cable,2x4mm² RRU Power Cable For ZTE,ZTE RRU Power Cable |
||

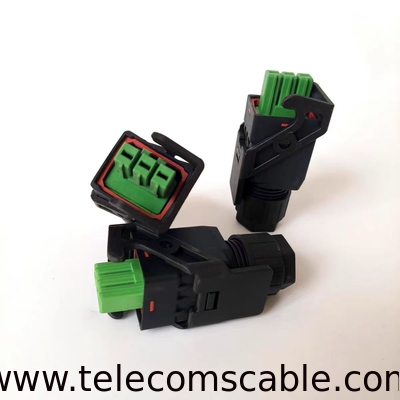

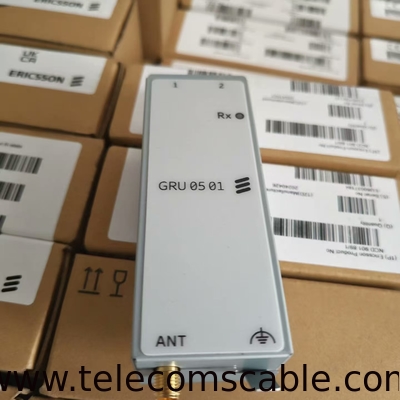

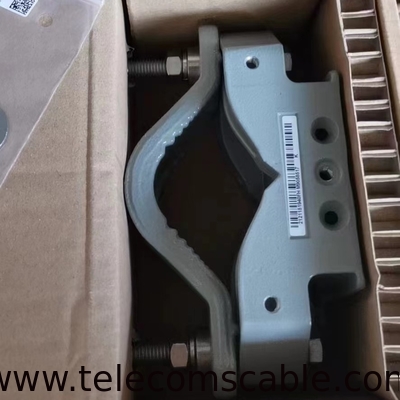

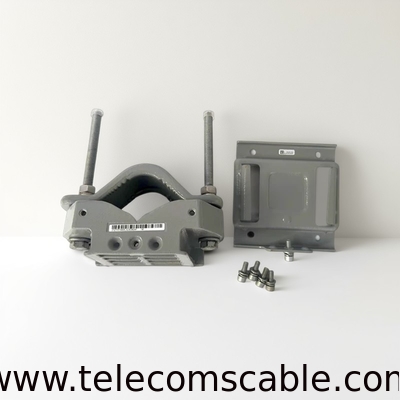

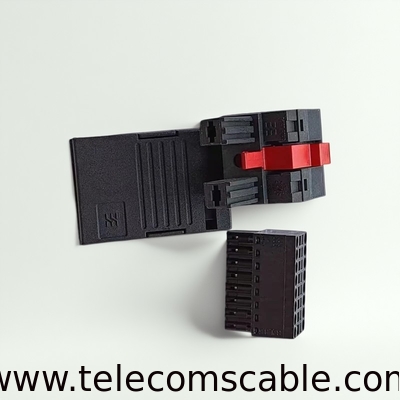

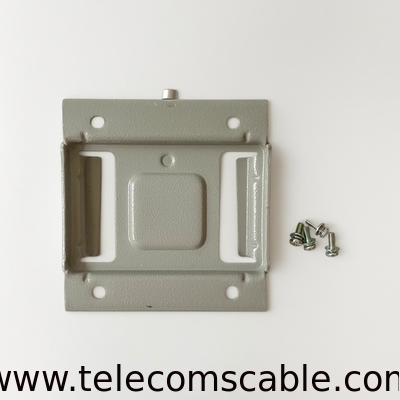

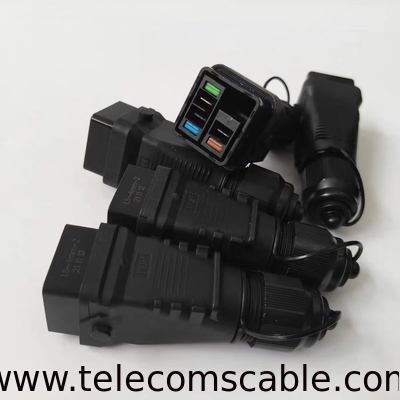

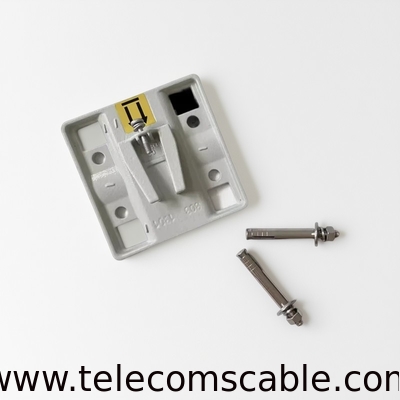

Related Products for Tower
UV resistant RRU Grey Jacket Halogen Free Shielded and flexible cable for use in telecom equipment.Halogen Free, Shielded and flexible connecting cable for use in telecom equipment where there are requirement for low inductance and good temperature resistance. Suitable in areas that require high electromagnetic compatibility. Grey jacket for indoor use. Black jacket is sunlight resistant , for outdoor use.
Conductor:
Stranded, Annealed copper, tinned, flexible, according to IEC 60228, Class5, Three paralled croes to form a flat conductor.
Insulation:
Flame retardant polyethylene, Black and grey
Shield
Al/Pe iaminate together with braid of annealed and tinned copper wires + AL polyester foil.
Sheath
Flame retardant polyethylene , grey or black
Insulation color |
Nominal cross-sectional area | Conductor construction | Conductor diameter (Ref.) | Max. conductor DC resistance at 20℃ | Nominal insulation thickness |
Min. insulation thickness | Min.insulation resistance at 70℃ | Insulation diameter (Ref.) | Nominal oversheath thickness | Min. oversheath thickness | Overall diameter |
| mm2 | pcs/mm(±0.01) | mm | Ω/km | mm | mm | MΩ.km | mm | mm | mm | mm | |
| Blue, black | 2x1 | 32/0.20 | 1.3 | 19.5 | 0.6 | 0.44 | 0.011 | 2.5±0.3 | 0.6 | 0.44 | 7.4±0.4 |
| Blue, black | 2x2.5 | 49/0.25 | 2.0 | 7.98 | 0.8 | 0.62 | 0.009 | 3.8±0.3 | 1.0 | 0.75 | 10.4±0.4 |
| Blue, red | 2x4 | 56/0.30 | 2.6 | 4.95 | 0.8 | 0.62 | 0.007 | 4.3±0.3 | 1.2 | 0.92 | 12.0±0.5 |
| Blue, black | 2x4 | 56/0.30 | 2.6 | 4.95 | 0.8 | 0.62 | 0.007 | 4.3±0.3 | 1.2 | 0.92 | 12.0±0.5 |
| Light blue, gray | 2x4 | 56/0.30 | 2.6 | 4.95 | 0.8 | 0.62 | 0.007 | 4.3±0.3 | 1.2 | 0.92 | 12.0±0.5 |
| Blue, black | 2x6 | 84/0.30 | 3.2 | 3.30 | 0.8 | 0.62 | / | 5.2±0.3 | 1.2 | 0.92 | 14.5±0.5 |
| Blue, red | 2x6 | 84/0.30 | 3.2 | 3.30 | 0.8 | 0.62 | / | 5.2±0.3 | 1.2 | 0.92 | 14.5±0.5 |
| Light blue, gray | 2x6 | 84/0.30 | 3.2 | 3.30 | 0.8 | 0.62 | / | 5.2±0.3 | 1.2 | 0.92 | 14.5±0.5 |
| Blue, black | 2x10 | 77/0.40 | 4.4 | 1.91 | 1.0 | 0.80 | / | 6.7±0.3 | 1.2 | 0.92 | 17.0±0.5 |
| Blue, red | 2x10 | 77/0.40 | 4.4 | 1.91 | 1.0 | 0.80 | / | 6.7±0.3 | 1.2 | 0.92 | 17.0±0.5 |
| Light blue, gray | 2x10 | 77/0.40 | 4.4 | 1.91 | 1.0 | 0.80 | / | 6.7±0.3 | 1.2 | 0.92 | 17.0±0.5 |
| Blue, black | 2x16 | 119/0.40 | 5.4 | 1.21 | 1.0 | 0.80 | / | 7.7±0.5 | 1.4 | 1.09 | 19.0±0.5 |
| Blue, red | 2x16 | 119/0.40 | 5.4 | 1.21 | 1.0 | 0.80 | / | 7.7±0.5 | 1.4 | 1.09 | 19.0±0.5 |
| Light blue, gray | 2x16 | 119/0.40 | 5.4 | 1.21 | 1.0 | 0.80 | / | 7.7±0.5 | 1.4 | 1.09 | 19.0±0.5 |
| Blue,brown, yellow/green |
3x1 | 32/0.20 | 1.3 | 19.5 | 0.6 | 0.44 | 0.011 | 2.5±0.3 | 0.8 | 0.58 | 8.5±1.0 |
| Red,white,green | 3x1.5 | 30/0.25 | 1.6 | 13.3 | 0.7 | 0.53 | 0.009 | 3.0±0.3 | 0.8 | 0.58 | 9.0±1.0 |
| Blue,brown, yellow/green |
3x1.5 | 30/0.25 | 1.6 | 13.3 | 0.7 | 0.53 | 0.009 | 3.0±0.3 | 0.8 | 0.58 | 9.0±1.0 |
| Red,white,green | 3x2.5 | 49/0.25 | 2.0 | 7.98 | 0.8 | 0.62 | 0.009 | 3.8±0.3 | 1.0 | 0.75 | 11.3±0.5 |
| Blue,brown, gray,black |
4x1.5 | 30/0.25 | 1.6 | 13.3 | 0.7 | 0.53 | 0.009 | 3.0±0.3 | 1.0 | 0.75 | 10.3±0.4 |
| Blue, blue,red,red | 4x2.5 | 49/0.25 | 2.0 | 7.98 | 0.8 | 0.62 | 0.009 | 3.8±0.3 | 1.1 | 0.84 | 12.3±0.5 |
