Andrew Heliax Coaxial Cable , Copper Rf Jumper Cable Inner OD 3.55mm

China Andrew Heliax Coaxial Cable , Copper Rf Jumper Cable Inner OD 3.55mm supplier

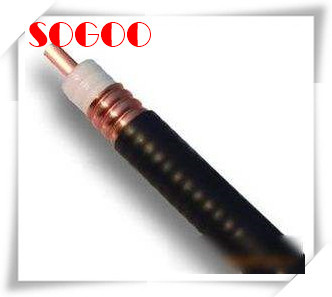

Large Image :  Andrew Heliax Coaxial Cable , Copper Rf Jumper Cable Inner OD 3.55mm

Product Details:

Place of Origin: Guangdong, China
Brand Name: SOGOO
Certification: CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: 10~15 USD
Packaging Details: 10pcs in 1 Anti-static package, standard packing
Delivery Time: 7-10 working days
Payment Terms: T/T; Paypal; Western Union
Supply Ability: 2000 pcs per week
Contact Now
Detailed Product Description
Product Name: Andrew Heliax Coaxial Cable 1/2 , 7/8 RF Feeder Cable Rf Jumper Cable Dia: 1/2" 1-1/4" 1-5/8" RF Feeder Cable
Application: Telecom Cable: Rf Coaxial Cable
Insulation Material: Foam PE Conductor Material: Copper
Other Options: 1/2" /1/4" RF /3/8" RF/ 7/8" RF/ 1-1/4"RF Feeder Cable Outer Conductor: Corrugated Copper Tube

Andrew heliax coaxial cable 1/2 , 7/8 RF Feeder Cable rf jumper cable





1/2" Superflexible RF corrugated coaxial cables is made on advanced physical foaming insulation production line and argon arc welding, corrugating and slotting production line which are imported respectively from Austria and USA

Specification

  • Inner Conductor: Smooth Copper Tube/ Copper Coating Aluminum/ Helix Copper Tube
  • Dielectric : Physical Foaming Polyethelene (PE)
  • Outer Conductor: Corrugated Copper Tube/ Annularity Copper Tube/ Helix Copper Tube
  • Jacket : Black PE or Low Smoke Halogen-free Fire-retardant



Structure:

Jacket materials PE
Jacket color Black
Outer Conductor Material Corrugated copper
Dielectric Material Foam PE
Flexibility Superflexible
Inner Conductor Material Copper-clad aluminum wire



Dimension:

Nominal size. 1/2" inch super flexible
Cable Weight. 200kg/km
Inner Conductor OD 3.55mm
Diameter Over Dielectric 9.00mm
Outer Conductor OD 11.90mm
Diameter Over Jacket 13.60mm



Technical data of 1/2" in superflxible feeder cable, is available by request.



Except the 1/2" in superflexible feeder cable, we are also supplying other sizes, such as 1/4"s, 3/8"s, 3/8", 1/2"s, 1/2", 7/8"s, 7/8", 7/8"L, 1-1/4", 1-5/8" ...etc.





Andrew Heliax Coaxial Cable , Copper Rf Jumper Cable Inner OD 3.55mm


services: In order to meet our clients' requirements, we also customize special products. Just show us your drawing, sample or indicated details, we will produce it or please kindly send us your specific engineering parameters such as IMD, VSWR,plating etc. We will discuss with you about the details and please feel free to

contact us.



Quality: In order to ensure product quality, we have combined with our highly qualified employees, advanced production lines, sophisticated testing equipment and nationwide service network.



Guaranty: We provide comprehensive service, including quality service, guidance services, We focus on customer needs in every detail.



Lead time:
We have a lot of stock ,If the quantity isn't very big , we can send the goods as soon as possible after recieve payment.If big quanity, the lead time need according to the quantity.



Look forward to your inquiry to Andrew heliax coaxial cable 1/2 , 7/8 RF Feeder Cable rf jumper cable.
