Super Flexible 7/8'' Rf Cable 50 Ohms / Helical Corrugated Coaxial Feeder Cable

Basic Information
Place of Origin: Guangdong, China
Brand Name: SOGOO
Certification: CE, RoHS
Minimum Order Quantity: 100 pcs
Price: 10~15 USD
Packaging Details: 10pcs in 1 Anti-static package, standard packing
Delivery Time: 7-10 working days
Payment Terms: T/T; Paypal; Western Union
Supply Ability: 2000 pcs per week
Contact Now

7/8'' rf cable 50 ohms super flexible helical corrugated coaxial feeder cable





50 ohm RF cable with foam degree of about 80% of the ultra-high foam polyethylene, low attenuation, the temperature coefficient is small, the temperature changes have a good stability. It is mainly used as a low loss, low VSWR signal transmission line in wireless base stations such as mobile communication, antenna feeder, microwave transmission, broadcasting communication and other systems base stations, and the connection between receiver and antenna or other high frequency fields.





Construction

50 ohms 7/8" flexible annular corrugated coaxial feeder cable RF Coaxial Cable communication cable



Item Material Diameter(mm)
1.Inner conductor Smooth Copper Tube 9.00±0.02
2.Dielectric Physical Foam Polyethylene 22.10±0.2
3.Outer conductor Annular Corrugated Copper Tube 25.00±0.2
4.Jacket Black PE 28.00±0.2

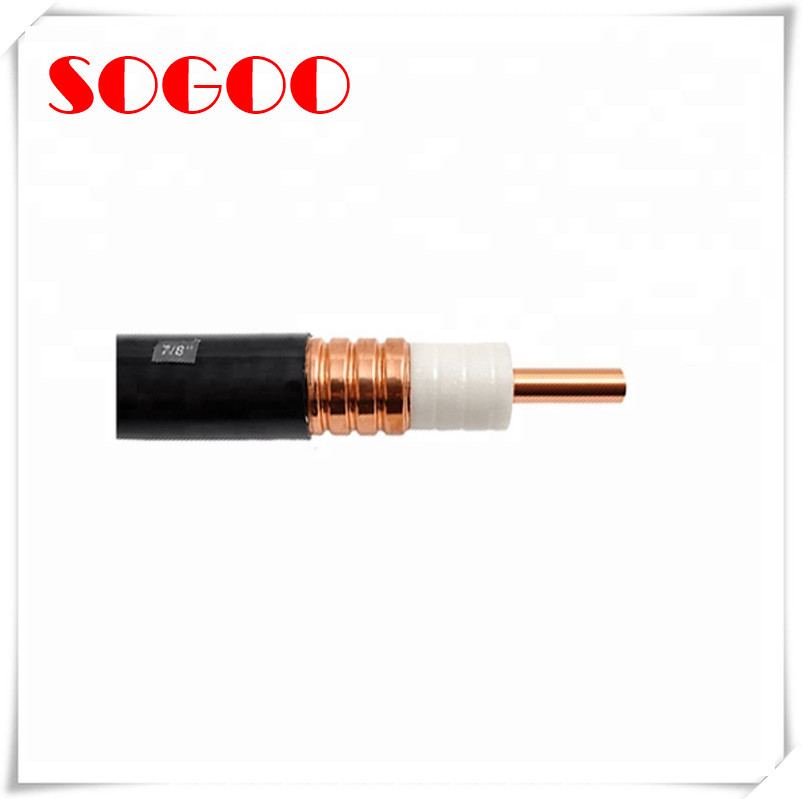

Product Pictures

50 ohms 7/8" flexible annular corrugated coaxial feeder cable RF Coaxial Cable communication cable

Electrical Character

1.Capacitance(pF/m) 76
2.Impedance(Ω) 50
3.Velocity(%) 88
4.Peak Power Rating(kW) 91.0
5.RF Peak Voltage(kV) 3.0
6.Insulation Resistance(MΩ.km) >5000
7.Cut-off Frequency(GHz) 5.2
8.Insulation Voltage(kVrms) 10
9.Jacket Spark(kVrms) 8.00
10.Sheilding Effectiveness(dB) >120
Parameter

Mechanical and Environmental Characteristics







Attenuation (VSWR1.0, cable temp. 20℃) & Average Power (VSWR 1.0, ambient temp. 40℃)







Lead time:
We have a lot of stock ,If the quantity isn't very big , we can send the goods as soon as possible after recieve payment.If big quanity, the lead time need according to the quantity.


Transporting:
If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near the port of TianJin.


Our service:
We can offer the sample. If the quality is good, we can offer very very competitive price .And can pack according to customer's requirment.



services: In order to meet our clients' requirements, we also customize special

products. Just show us your drawing, sample or indicated details, we will produce

it or please kindly send us your specific engineering parameters such as IMD, VSWR,plating etc. We will discuss with you about the details and please feel free to

contact us.



Quality: In order to ensure product quality, we have combined with our highly

qualified employees, advanced production lines, sophisticated testing equipment

and nationwide service network.



Guaranty: We provide comprehensive service, including quality service, guidance

services, We focus on customer needs in every detail.



Look forward to your inquiry to 7/8'' rf cable 50 ohms super flexible helical corrugated coaxial feeder cable.
