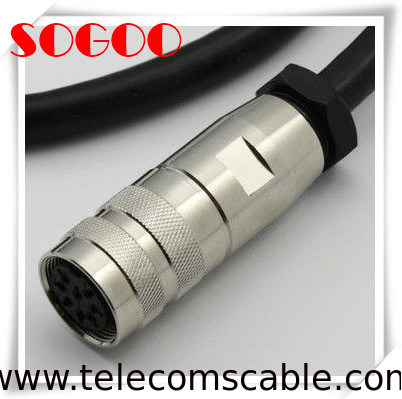

AISG 2.0 15PIN-To-8PIN 10m Cable Converter For RRU R8862A Compatible Huawei ZTE

China AISG 2.0 15PIN-To-8PIN 10m Cable Converter For RRU R8862A Compatible Huawei ZTE supplier
AISG 2.0 15PIN-To-8PIN 10m Cable Converter For RRU R8862A Compatible Huawei ZTE supplier AISG 2.0 15PIN-To-8PIN 10m Cable Converter For RRU R8862A Compatible Huawei ZTE supplier

Large Image :  AISG 2.0 15PIN-To-8PIN 10m Cable Converter For RRU R8862A Compatible Huawei ZTE

Product Details:

Place of Origin: Guangdong, China
Brand Name: SOGOO
Certification: CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: 10~15 USD
Packaging Details: 10pcs in 1 Anti-static package, standard packing
Delivery Time: 7-10 working days
Payment Terms: T/T; Paypal; Western Union
Supply Ability: 2000 pcs per week
Contact Now
Detailed Product Description
Product Name: AISG RET Cable Length: 3M -10M
Compatible: Huawei ZTE Warranty: 1 Year
Application: Telecom Cable: Control Cable

10G/1310nm SM Optical Module (1.4km) SFP Optical Transceiver compatible to Huawei ZTE



Specification:

AISG RET Control Cable
Feeds data and power to RET system components
AISG and RoHS compliant
The ATCB Series control cables are used to feed data and power from the controller to the RET (remote electrical tilt) system components.
These cables are available in various lengths and are terminated with male and female connectors which allow them to be linked together to meet a required length.

With a rugged metal housing and environmental protection rating of IP67 when mated, this robust DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.High quality AISG equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.

Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated


Electrical Specifications
  • Protocol AISG 1.1 | AISG 2.0
  • Voltage, maximum 300V
  • Product Type AISG standard cable
  • AISG Connector A 8-pin DIN Female
  • AISG Connector Body Style Straight
  • AISG Connector Standard IEC 60130-9
  • AISG Connector B 8-pin DIN male
  • AISG Poles 4PIN 5PIN 6PIN 8PIN are available
  • Relative Humidity Up to 100%
  • Cable length 0.5m-100m
  • Cable Performance IP67,UV-Resistance/Low Temperature resistance/Outdoor application


Shipping Methods:

If big order, we will advise by air or by sea.
If small order or urgent order, we will check UPS, DHL, FEDEX, or TNT price for you, and advise tracking number after delivery. We have cooperated forwarder can offer very cost-effective price.
OEM service

According to your sample.
According to your drawing.
