Flexible RRU Power Cable PVC / LSZH Jacket DC Power Cord With IEC60332-1

Basic Information
Place of Origin: Guangdong, China
Brand Name: ZTE/Panyu
Certification: CE, RoHS
Model Number: 4x2.5 mm²
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 3-20 days depends on quantity
Payment Terms: T/T; Paypal; Western Union
Supply Ability: 1000000m per week
Product Name: ZA-RVV RoHS 4x2.5 Mm² RRU Power Cable For ZTE 300/300V IEC60332-1 Key Words: 4x2.5 Mm² Panyu RRU Power Cable
Certificate: IEC60332-1 Packing: 1000m Or 200M
Package: Wooden Drum Outdoor Use: Yes
High Light:

Flexible RRU Power Cable

,

Flexible RRU DC Power Cable

,

PANYU RRU Power Cable

ZA-RVV RoHS 4x2.5 mm² RRU Power cable for ZTE 300/300V IEC60332-1

Model Number:
RRU DC power cable, TFL, NKT
Application:
DC Power Cable
Conductor Material:
Copper, tinned copper
Jacket:
PVC, LSZH
Insulation Material:
PVC, XLPE, LSZH
Shield:
Bare or Tinned copper wire
Rated Voltage:
300/500V, 450/750V, 600/1000V
Conductor:
Flexible copper wire annealed tinned, Class 5
Name:
RRU, TFL, RRU3808, 3804, 3801, BBU, NKT
Standard:
GB/T 9300, IEC60502
Size:
2x4mm2 2x6mm2 2x10m2 2x16mm2 2x25mm2
Voltage:
12V 24V 36V 48V RRU DC Power Cable
OEM:
Viettel, PT Telkom Indonesia/asia, PLDT, Globe Telecom




Insulation color
Nominal cross-sectional area Conductor construction Conductor diameter (Ref.) Max. conductor DC resistance at 20 Nominal insulation
thickness
Min. insulation thickness Min.insulation resistance at 70 Insulation diameter (Ref.) Nominal oversheath thickness Min. oversheath thickness Overall diameter
mm2 pcs/mm(±0.01) mm Ω/km mm mm MΩ.km mm mm mm mm
Blue, black 2x1 32/0.20 1.3 19.5 0.6 0.44 0.011 2.5±0.3 0.6 0.44 7.4±0.4
Blue, black 2x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.0 0.75 10.4±0.4
Blue, red 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Blue, black 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Light blue, gray 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Blue, black 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Blue, red 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Light blue, gray 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Blue, black 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Blue, red 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Light blue, gray 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Blue, black 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Blue, red 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Light blue, gray 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Blue,brown,
yellow/green
3x1 32/0.20 1.3 19.5 0.6 0.44 0.011 2.5±0.3 0.8 0.58 8.5±1.0
Red,white,green 3x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 0.8 0.58 9.0±1.0
Blue,brown,
yellow/green
3x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 0.8 0.58 9.0±1.0
Red,white,green 3x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.0 0.75 11.3±0.5
Blue,brown,
gray,black
4x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 1.0 0.75 10.3±0.4
Blue, blue,red,red 4x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.1 0.84 12.3±0.5

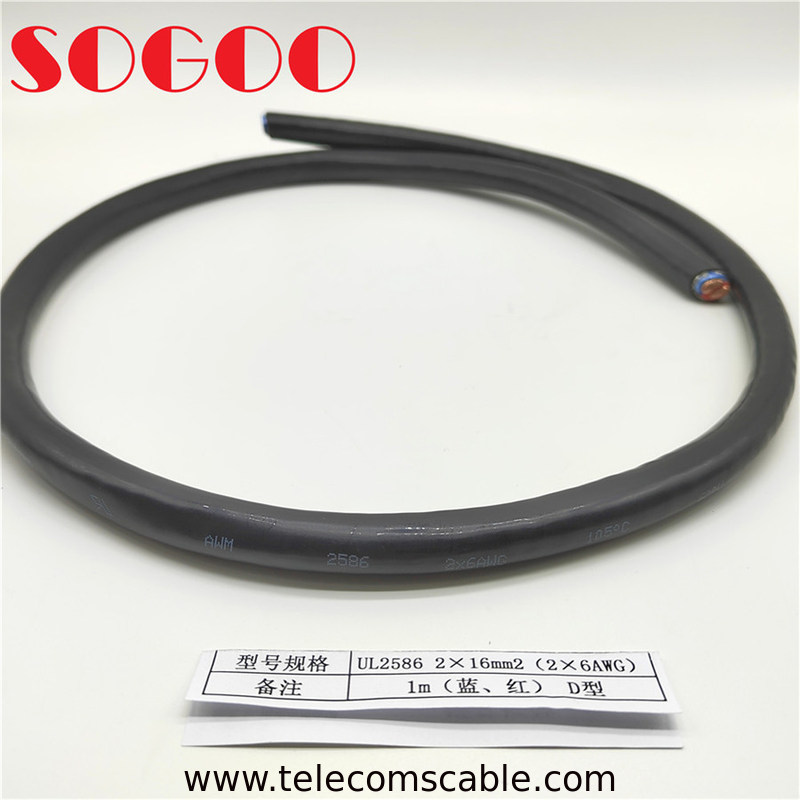

UL2586 RRU power cable picture.

Flexible RRU Power Cable PVC / LSZH Jacket DC Power Cord With IEC60332-1 0Flexible RRU Power Cable PVC / LSZH Jacket DC Power Cord With IEC60332-1 1Flexible RRU Power Cable PVC / LSZH Jacket DC Power Cord With IEC60332-1 2





UL2464 RRU power cable Picture:



Flexible RRU Power Cable PVC / LSZH Jacket DC Power Cord With IEC60332-1 3
