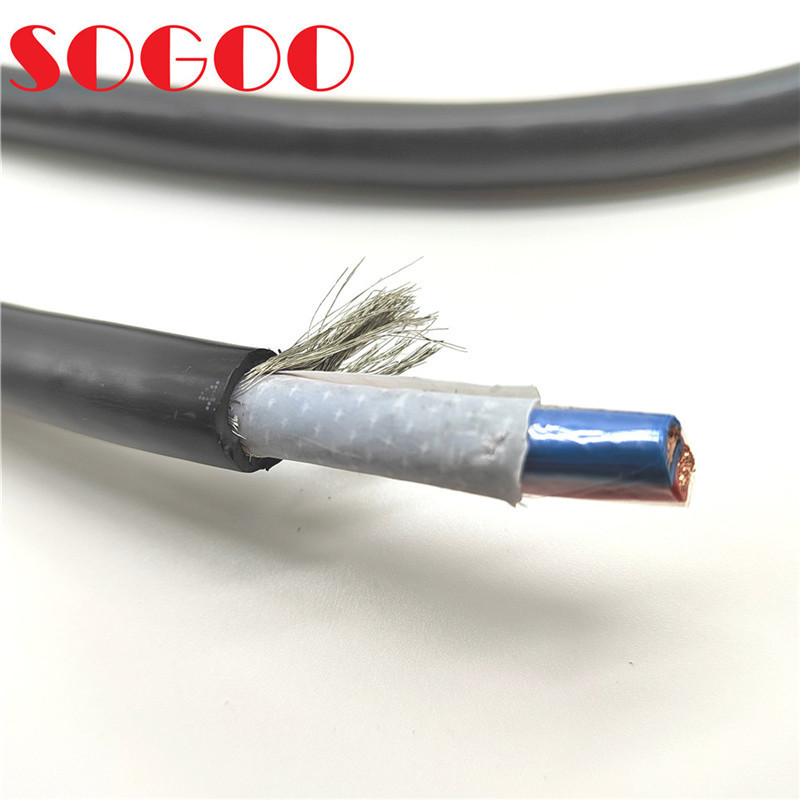

2x6 mm2 IEC60332-1 RRU Shielded Power Cable Insulated For Base Station ZA PVC Jacket

Basic Information
Place of Origin: Guangdong, China
Brand Name: ZTE/Panyu
Certification: CE& RoHS
Model Number: 2x6 mm²
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 3-20 days depends on quantity
Payment Terms: T/T; Paypal; Western Union
Supply Ability: 20000m per day
Product Name: ZA-RVVP 300/300V 2x6 Mm2 (TCCAM) RoHS IEC60332-1 RRU Shield Power Cable Key Words: ZA-RVVP 2x6 Mm2 Power Cable
Shield: Yes Application: RRU
Package: Wooden Drum Packing: 1000m
High Light:

2x6 mm2 RRU Shielded Power Cable

,

RRU Shielded Power Cable

,

2x6 mm2 RRU DC Power Cable

ZA-RVVP 300/300V 2x6 mm2 (TCCAM) RoHS IEC60332-1 RRU shield Power cable

ZA-RVVP ZC-RVVP RVVP
Type:
Insulated
Application:
Equipment, base station
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Standard:
IEC 60227, IEC60332-1
Certification:
ISO9001 CCC
Shield:
Copper Wire Braid
Conductor:
Flexible Copper class5
Jacket:
ZA PVC
Temperature range:
90degree
Size:
2x2.5mm2, 2x4mm2, 2x6mm2, 2x10mm2, 2x16mm2, 2x25mm2, 2x35mm2, 2x50mm2
Usage:
Telecom cable RRU BBU
Rated Voltage:
300V ZA-RVVP
Characteristics:
DC Power Cable

Insulation color
Nominal cross-sectional area Conductor construction Conductor diameter (Ref.) Max. conductor DC resistance at 20 Nominal insulation
thickness
Min. insulation thickness Min.insulation resistance at 70 Insulation diameter (Ref.) Nominal oversheath thickness Min. oversheath thickness Overall diameter
mm2 pcs/mm(±0.01) mm Ω/km mm mm MΩ.km mm mm mm mm
Blue, black 2x1 32/0.20 1.3 19.5 0.6 0.44 0.011 2.5±0.3 0.6 0.44 7.4±0.4
Blue, black 2x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.0 0.75 10.4±0.4
Blue, red 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Blue, black 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Light blue, gray 2x4 56/0.30 2.6 4.95 0.8 0.62 0.007 4.3±0.3 1.2 0.92 12.0±0.5
Blue, black 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Blue, red 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Light blue, gray 2x6 84/0.30 3.2 3.30 0.8 0.62 / 5.2±0.3 1.2 0.92 14.5±0.5
Blue, black 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Blue, red 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Light blue, gray 2x10 77/0.40 4.4 1.91 1.0 0.80 / 6.7±0.3 1.2 0.92 17.0±0.5
Blue, black 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Blue, red 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Light blue, gray 2x16 119/0.40 5.4 1.21 1.0 0.80 / 7.7±0.5 1.4 1.09 19.0±0.5
Blue,brown,
yellow/green
3x1 32/0.20 1.3 19.5 0.6 0.44 0.011 2.5±0.3 0.8 0.58 8.5±1.0
Red,white,green 3x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 0.8 0.58 9.0±1.0
Blue,brown,
yellow/green
3x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 0.8 0.58 9.0±1.0
Red,white,green 3x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.0 0.75 11.3±0.5
Blue,brown,
gray,black
4x1.5 30/0.25 1.6 13.3 0.7 0.53 0.009 3.0±0.3 1.0 0.75 10.3±0.4
Blue, blue,red,red 4x2.5 49/0.25 2.0 7.98 0.8 0.62 0.009 3.8±0.3 1.1 0.84 12.3±0.5
