1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type

I'm Online Chat Now

1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type

China 1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type supplier

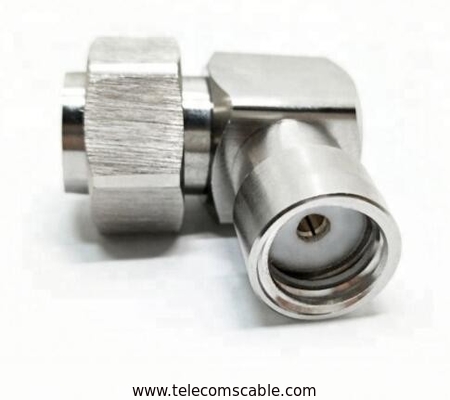

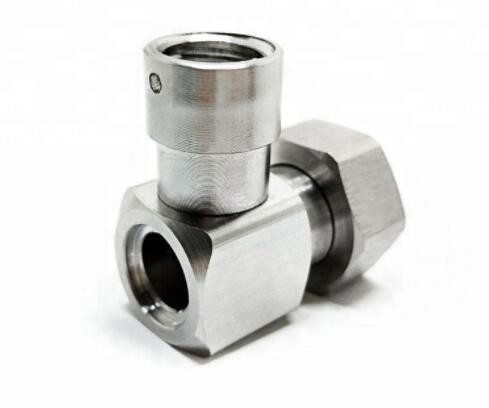

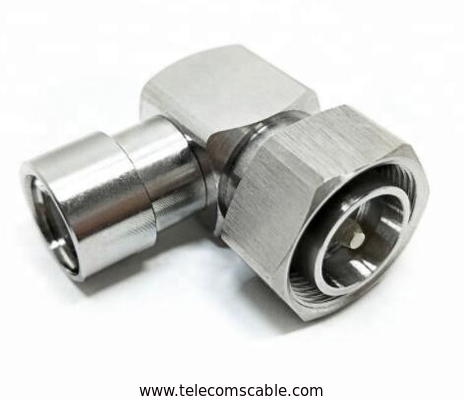

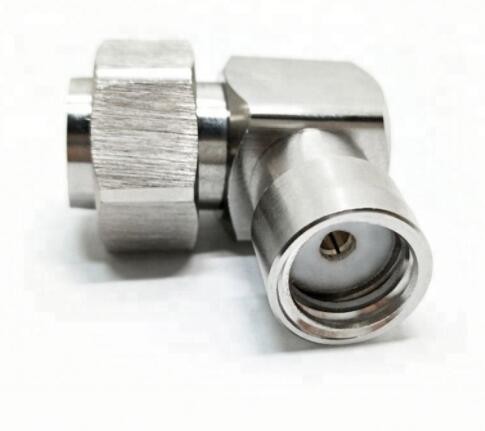

1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type supplier 1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type supplier 1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type supplier 1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type supplier

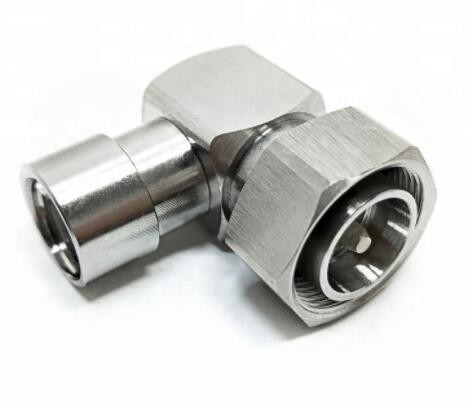

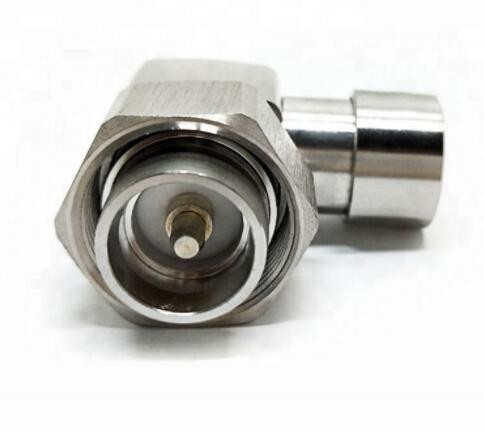

Large Image :  1/2 Feeder Cable Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type

Product Details:

Place of Origin: China
Brand Name: SOGOO
Certification: CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: 10~15 USD
Packaging Details: 10pcs in 1 Anti-static package, standard packing
Delivery Time: 3~10 days depends on the quantity.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000 pcs per week
Contact Now
Detailed Product Description
Product Name: 1/2 Feeder Cable RF Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type Application: 1/2 RF Coaxial Cable
Frequency Range: DC-3G / DC-6G Power Rating: 500W
Impedance: 50 Ohm Material: Copper
Plating: Nickel/gold Gender: Male

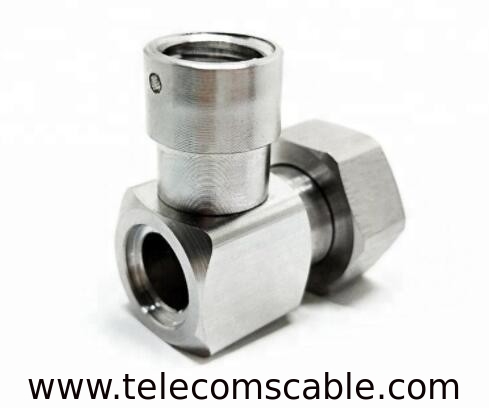

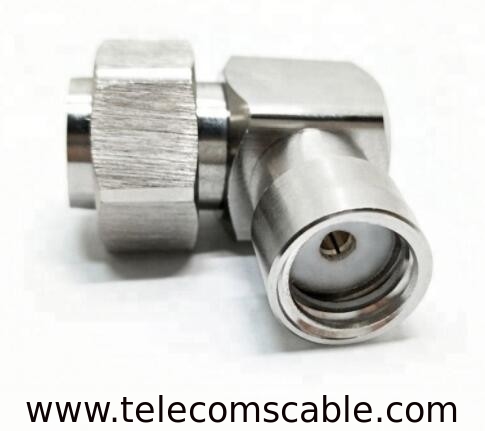

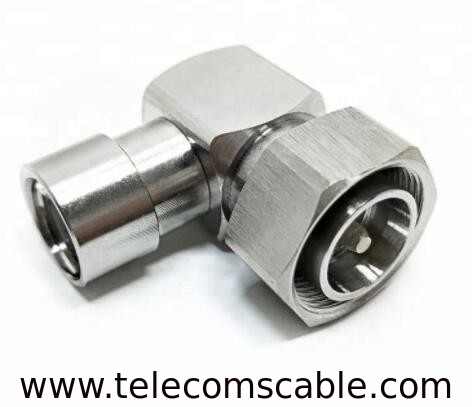

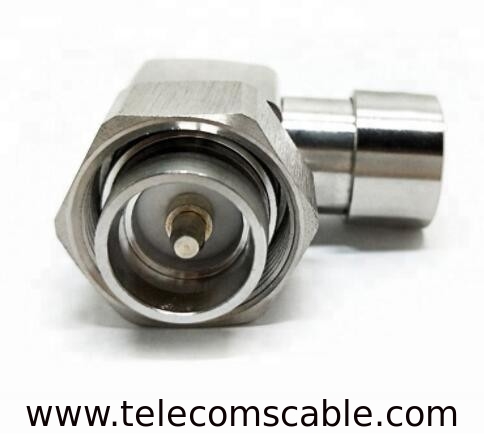

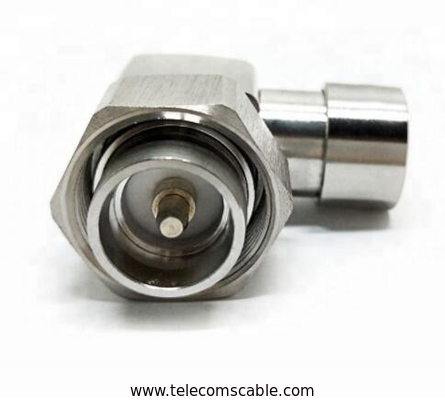

1/2 Feeder Cable RF Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type



1/2 cable connector



4.3/10 1/2 cable connector



mini din 1/2 cable connector



Temperature range

-40~+85°C

Vibration

100m/s2 (10~500Hz)

Impedance

50 OHM

Frequency Range

DC – 11GHz

Working Voltage

2700V max

Break-down Voltage

4000V rms @ sea level

Contact resistance

≤0.4 OHM @ inner contact

≤1.5 OHM @ outer contact

Average power

3KW max

Insulation resistance

≥10000M OHM

VSWR

≤ 1.10

Durability (mating)

≥500 (cycles)



Material & Plating

Body

Brass

Nickel plated / Alloy plated

Inner Pin

Brass

Gold plated

Resilient Contact

Beryllium Copper

Gold plated

Socket Contact

Beryllium or tin bronze

Gold plated

Insulator

PTFE



Crimp Ferrule

Copper alloy

Nickel / Gold plated

O-ring sealing

Silicone Rubber









Our Service

1. Sufficient stock for your prompt dispatch
2. Free Samples can be provided for your evaluation
3. OEM customized services
4. Professioinal foreign trade team, 24 hour online service


Packing Information
Each piece packed in an opp bag,
each opp bag packed in a small inner box,
small boxes put in one standard exporting carton,
then cartons packed in one pallet.



Q&A

1.Can we get a free sample firstly?

Yes,free sample for testing approval is available to our customers.

2.What is your MOQ?

No MOQ for any sample test,at least 10pcs after sample order.

3. Is OEM/ODM Service available?

Yes,We have the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

4.Payment Terms: 100% TT in advance, Paypal and Western Union for the sample order

5.Price Terms: FOB Shanghai/Ningbo/ShenZhen

6. Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent

7.Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.



Look forward to your inquiry to 1/2 Feeder Cable RF Connector 4.3/10 L20 Mini Din Male Plug Right Angle Type.
