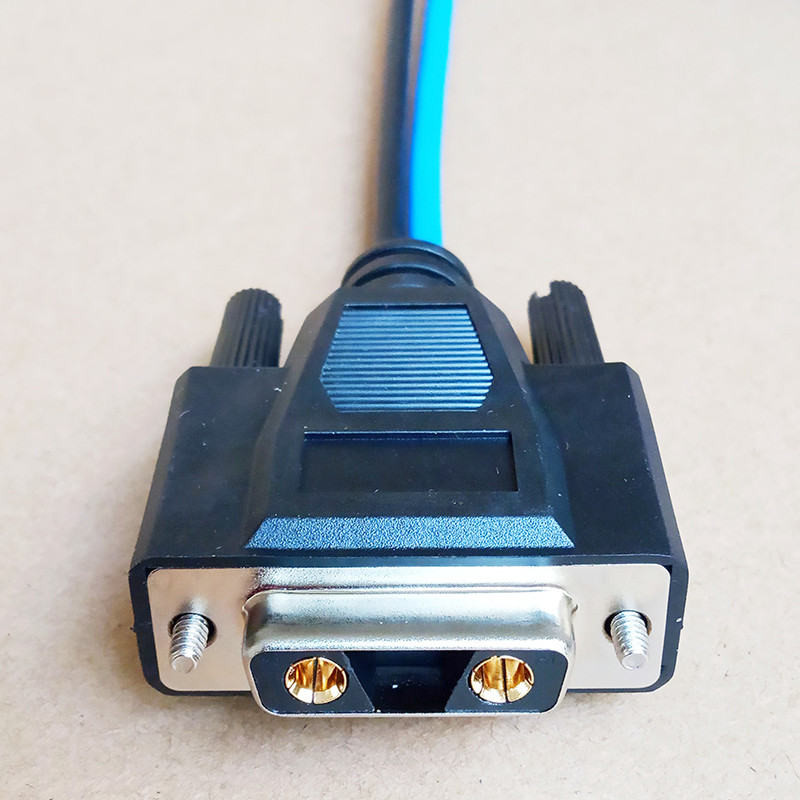

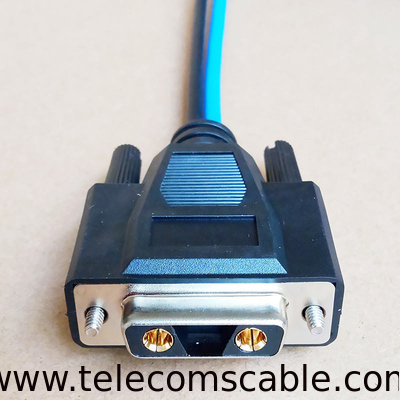

PWR-96515 -48V DC Power Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2

China PWR-96515 -48V DC Power Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2 supplier
PWR-96515 -48V DC Power Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2 supplier PWR-96515 -48V DC Power Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2 supplier PWR-96515 -48V DC Power Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2 supplier PWR-96515 -48V DC Power Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2 supplier

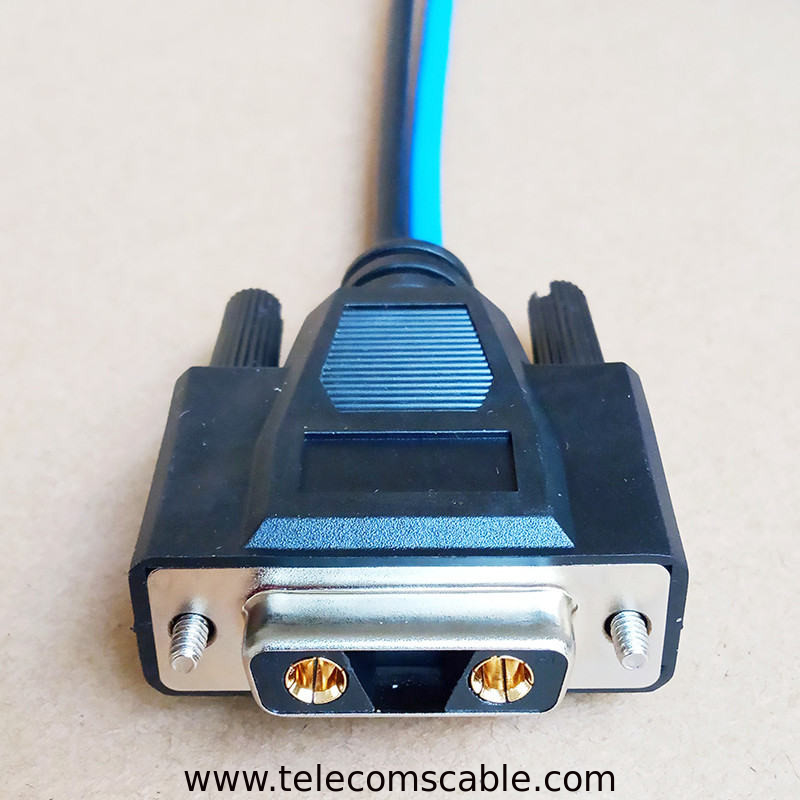

Large Image :  PWR-96515 -48V DC Power Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2

Product Details:

Place of Origin: Guangdong, China
Brand Name: Panyu cable
Certification: CE RoHS
Model Number: ZA-RVVP K29-2017-0825-A1

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Packaging Details: Cartons
Delivery Time: 7-10 working days
Payment Terms: T/T; Paypal; Western Union
Supply Ability: 10000 pcs per day
Contact Now
Detailed Product Description
Product Name: ZTE PWR-96515 -48V DC Cable For ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2 Voltage: 300V/300V
ApplicatioFor Telecommunicationsn: B8200 B8300 BBU RRU ZTE Length: 1~50M
Standard: ROHS IEC60332-1 Cable: DC Power Cable Assembly

ZTE PWR-96515 -48V DC cable for ZXSDR B8200 B8300 BBU RRU ZTE DO CHV1 SDU2 PM2



ZXSDR B8200 Large-Capacity Compact BBU

The ZXSDR B8200 is a large-capacity compact Base Band Unit (BBU) with separate baseband and RF based on the mature and stable Software Defined Radio (SDR) platform. ZTE has applied the unified advanced SDR platform to WiMAX, GSM, CDMA, WCDMA and LTE.



The ZXSDR B8200 and ZTE RRU series constitute a complete TD-LTE eNodeB. Compared with traditional networking solutions, the BBU + RRU networking solution not only avoids the dependence on equipment rooms and reduces the difficulty of deployment, but also effectively accelerates network construction, meeting operators’ requirements for rapid and low-cost network construction.



Product Highlights

  • Mature and stable by adopting the unified platform
  • Flexible configuration, meeting the capacity requirements for multi-band/multi-mode networking and also the expansion requirements in the future
  • At most 6 baseband processing boards and 18 cells with 2*2MIMO, fully meeting TD-LTE system capacity requirements
  • At most 18 interfaces between BBU and RRU, leading the industry. Each interface supports one 6.144G optical interface.
  • Full-rate GE optical and electrical interfaces
  • Synchronization with IEEE1588 V2, enabling flexible network deployment
  • Seamless evolution
  • G/T/L multi-mode multi-system unified platform

R8840 is a UMTS multi-carrier radio unit, working on 2100MHz/AWS. R8840 supports maximum 4 carriers, the output power is 60W. R8840 module consists of MCPA (multi-carrier power module) module, transceiver module, duplex filter LNA and RPWAC/DC (Power for AC or DC). There are one TX/RX port and one RX port for connecting antenna. R8840 employs compact cabinet design, as shown in Figure 16. Dimension of R8840 is 370×320×160mm (H×W×D).

R8860 is multi-carrier RF module, working on 850/900/1800/1900MHz. R8860 can be configured as GSM only, UMTS only or mixed mode module. R8860 can be configured to 1 to 6 TRX in GSM mode. In case of GMSK modulation, 80W TOC output power can be provided. If R8860 is used as UMTS mode, it can support 4 carriers with 80W TOC output power. In mixed mode, R8860 can support 4 GSM TRX and 1 UMTS carriers or 2 GSM TRX and 2 UMTS carriers.

R8880 is a multi-carrier RF module. R8880 can be configured as UMTS mode. It can process 2 received signals and 2 transmitted signals. Each one can support 2*2 MIMO in HSPA+ mode on 2100MHz. Its output power achieves up to 2*60W (TOC). It is mainly used for outdoor macro coverage and also used for indoor coverage signal source. R8880 can be configured as UMTS mode. R8880 can support 3 carriers when it ensures the 2*20W output power for each carrier.

R8882 is a multi-carrier RF module. R8880 can be configured as UMTS mode. It can process 4 received signals and 2 transmitted signals. Each one can support 2*2 MIMO in HSPA+ mode on 2100MHz. Its output power achieves up to 2*60W (TOC). It is mainly used for outdoor macro coverage and also used for indoor coverage signal source. R8880 can support 3 carriers when it ensures the 2*20W output power for each carrier.



Why Choose Us:

1.Competitive price

2.Fast delivery

3.Longtime warranty

4.Reliable quality

5.Professional product and technical support

6.Prompt answer for any question or inquiry

7.Value-added service: except good products, we can provide good services on logistic and other help you may need.





Our Service:

1.Send us your inquiry ,we will revert back to you within 12 hours.

2.Adopt strict process and raw materials control to guarantee the life span of 30 years.

3.All our products are well tested,we provide you with test report.







Look forward to your inquiry to our Power cord - 50 meters 1 volume 1 core dc power cable coaxial cable dc power cable for rru.
