Single Mode Fiber Optic Patch Cord PDLC -LC/UPC Duplex Armored Fiber Optic Patch Cable

China Single Mode Fiber Optic Patch Cord PDLC -LC/UPC Duplex Armored Fiber Optic Patch Cable supplier
Single Mode Fiber Optic Patch Cord PDLC -LC/UPC Duplex Armored Fiber Optic Patch Cable supplier Single Mode Fiber Optic Patch Cord PDLC -LC/UPC Duplex Armored Fiber Optic Patch Cable supplier

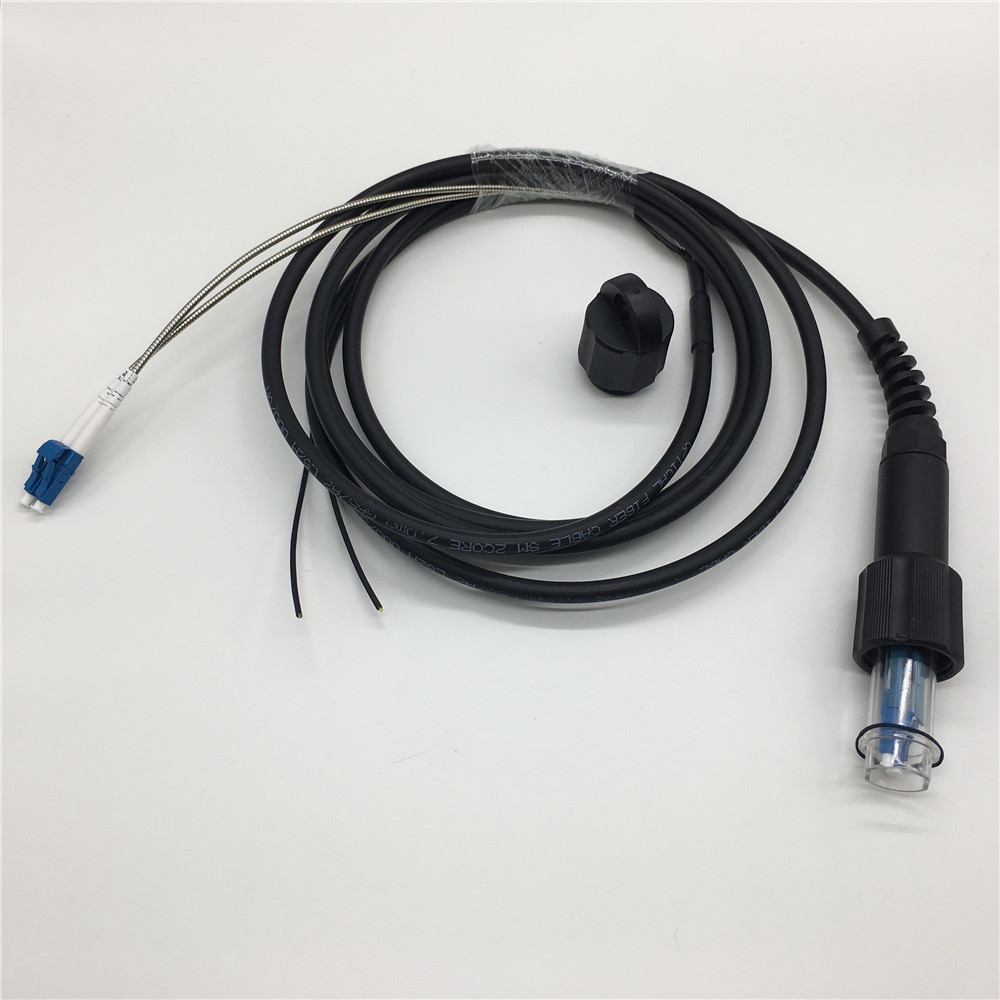

Large Image :  Single Mode Fiber Optic Patch Cord PDLC -LC/UPC Duplex Armored Fiber Optic Patch Cable

Product Details:

Place of Origin: China
Brand Name: SOGOO
Certification: CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: 10~15 USD
Packaging Details: 10pcs in 1 Anti-static package, standard packing
Delivery Time: 3~10 days depends on the quantity.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000 pcs per week
Contact Now
Detailed Product Description
Product Name: PDLC -LC/UPC Duplex Singlemode Waterproof Fiber Optic Patch Cord Length: 10~75 M
Connector: PDLC-DLC Insertion Loss: <=0.3 DB
Wire Diameter: 7.0 Mm Cable Mode: Waterproof LSZH Fiber Optic Patch Cord

PDLC -LC/UPC Duplex Singlemode waterproof Fiber Optic Patch Cord



Characteristics:

1. Simplex and duplex connector available

2. High precision of mechanical dimensions.

3. Good exchange ability and good durability;

4. Low Insertion Loss, High temperature Stability and Good exchangeability.

5. Fan-out Available, Pigtail Available, Various Boot(cable) Size Available

Fiber Specification:

Fiber type
50/125,9/125
Core Diameter
50 + 2.5
Core Non-Circularity
<=5.0 %
Cladding Diameter
125.0+1.0um
Cladding Non-Circularity
<=1.0 %
Coating Diameter
245+7
Coating-Cladding Concentricity Error
<=12.0um
Coating Non-Circularity
<=6.0um





Connecton Specification
ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125,single mode,9/125
Operating wavelength
850nm, 1300nm,1310,1550nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C

Our Service

1. Factory Price

2. OEM

3. Fast delivery,low freight

4. Customize service

Packing & Delivery



Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.


Usage

Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE





Packaging & Shipping



The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available
Inner packing: 1pcs in a plastic box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS ...





Single Mode Fiber Optic Patch Cord PDLC -LC/UPC Duplex Armored Fiber Optic Patch CableSingle Mode Fiber Optic Patch Cord PDLC -LC/UPC Duplex Armored Fiber Optic Patch Cable


Look forward to your inquiry on PDLC -LC/UPC Duplex Singlemode waterproof Fiber Optic Patch Cord.
